CoaXPress Revolutionizes Industrial Vision Systems with High-Speed Data Transfer

CoaXPress (CXP) continues transforming machine vision applications across multiple industries. This advanced interface technology enables unprecedented data transfer speeds. Moreover, it provides reliable performance for demanding industrial automation environments.

CoaXPress Technology Overview and Capabilities

CoaXPress stands as the premier interface for machine vision systems. It delivers exceptional data transfer rates up to 12.5 Gbps per cable. The technology transmits power and control signals simultaneously. Additionally, it uses standard coaxial cables for cost-effective implementation.

Medical Imaging Breakthrough with CXP Technology

Researchers in Lithuania developed an innovative microscopy system. Their d-FF-OCM technique utilizes CoaXPress interface advantages. This system achieves superior deep-tissue imaging resolution. Furthermore, it eliminates coherent artifacts common in conventional OCT systems.

System Architecture and Key Components

The advanced microscopy system integrates multiple sophisticated components:

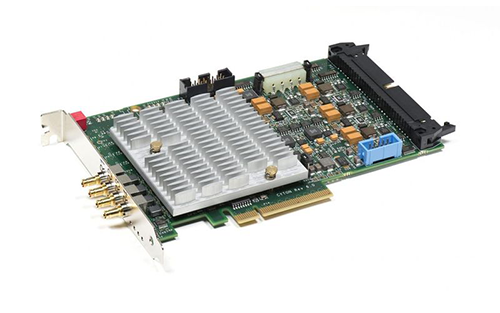

• BitFlow Cyton-CXP4 PCIe frame grabber for data acquisition
• Adimec 2-megapixel CMOS camera for image capture
• Laser-pumped white light source for sample illumination
• Custom interferometer with oil immersion objectives
• Piezo stack and NI DAQ card for precise control

High-Speed Data Acquisition Performance

The system achieves remarkable data transfer rates of 25 Gbps. This speed results from utilizing all four frame grabber links. The setup maintains virtually zero latency during operation. Consequently, it captures 1440 × 1440 resolution images at 500 frames-per-second.

Industrial Automation Applications Beyond Medical

CoaXPress technology extends beyond medical imaging into industrial sectors. According to MarketsandMarkets, the machine vision market will reach $18.2 billion by 2027. Key industrial applications include:

• High-speed manufacturing quality inspection
• Automated optical inspection systems
• Robotic guidance and positioning systems
• Real-time process monitoring and control

Technical Advantages for Industrial Systems

CoaXPress offers significant benefits for industrial automation environments. The interface ensures reliable data transmission over long distances. It provides deterministic performance for real-time applications. Moreover, it supports cable lengths up to 100 meters without signal degradation.

Expert Analysis: Machine Vision Trends

From World of PLC’s perspective, CoaXPress represents the future of industrial vision systems. The technology addresses critical needs for speed and reliability. Many automation professionals now prefer CXP for high-performance applications.

Industrial vision system designers should consider several factors. Cable quality significantly impacts signal integrity. Proper termination ensures optimal data transfer rates. Additionally, environmental conditions affect long-term performance.

For comprehensive industrial automation solutions including vision system integration and control systems, visit World of PLC Limited to explore implementation strategies.

Practical Implementation Scenarios

CoaXPress technology enables numerous industrial automation applications:

• High-speed bottling line inspection at 1000 units per minute
• Electronic component verification with sub-pixel accuracy
• Automated surface defect detection in manufacturing
• Real-time dimensional measurement for quality control

Frequently Asked Questions

What makes CoaXPress superior to other vision interfaces?
CoaXPress combines high bandwidth with long cable runs. It delivers both power and data through single cables. The interface maintains deterministic performance for industrial applications.

How does CXP benefit industrial automation systems?
The technology enables real-time inspection at production line speeds. It reduces system complexity using standard coaxial cables. Moreover, it ensures reliable operation in harsh industrial environments.

What industries commonly use CoaXPress technology?
Medical imaging, semiconductor manufacturing, and automotive inspection utilize CXP. Electronics assembly and pharmaceutical production also benefit from its capabilities.
