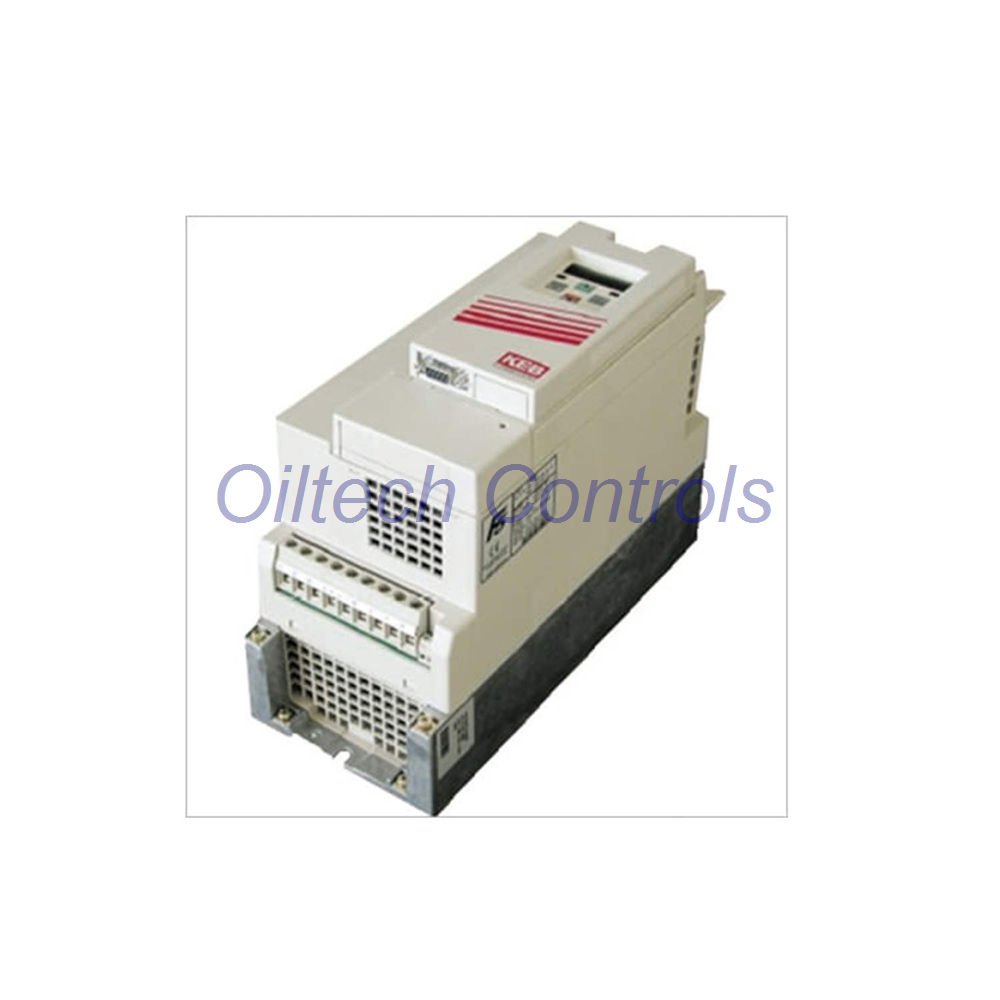

09F5A1D-3A0A KEB F5 Frequency Inverter 2.8kVA 4.1A AC/DC

KEB Combivert F5 09F5A1D-3A0A – 2.8 kVa / 400V / 4.1A / 1.5 kW

The KEB Combivert F5 09F5A1D-3A0A is a compact 3-phase frequency inverter. It delivers 2.8 kVA power and 1.5 kW motor output. This unit operates from a 305…528V AC input. It provides a rated output current of 4.1A. The design includes a built-in brake chopper (GTR7) and air cooling. It supports output frequencies up to 599Hz. This drive is ideal for AC/DC motor control in industrial systems.

Oiltech Controls’s Insight

• This VFD suits constant torque loads like conveyors and pumps.
• Its 29 control terminals offer flexible I/O configuration.
• The 2 ms scan time ensures fast response for precision tasks.
• Internal DC-link and motor-PTC evaluation enhance safety.
• Energy saving function reduces operational costs.

Core Technical Data

• Brand: KEB
• Model: 09F5A1D-3A0A (Combivert F5 Series)
• Power: 2.8 kVA / 1.5 kW (2/4P 50/60Hz motor)
• Input Voltage: 305…528V AC 3 Ph
• Output Voltage: 0…Uin (variable)
• Rated Current: 4.1A (max short-time 7.4A)
• Max Frequency: 599Hz (switching up to 16 kHz)
• Protection: IP20 (air cooled, heatsink type)
• Dimensions (WxHxD): 90 x 250 x 181 mm

Control & I/O Capabilities

• • 29 plug-in terminals with PNP/NPN logic switchable.
  • 2 analog inputs: 0…10 V, ±10 V, 0/4…20 mA.
  • 2 programmable analog outputs (0…±10 V).
  • 8 digital inputs and 2 relay + 2 transistor outputs.
  • 4 software I/Os and 8 free parameter sets.
  • Includes S-curves, DC-braking, PID, and electronic motor protection.
  • Integrated brake chopper (GTR7) for dynamic deceleration.

Typical Compatible Equipment

• • • AC induction motors (1.5 kW / 2HP).
    • Conveyor systems, fans, and pumps.
    • Packaging machinery and material handling.
    • Mixers, extruders, and textile machines.
    • Retrofit for obsolete KEB F4 or other VFDs.

Why Buy From Oiltech Controls?

• • • Over 15 years in industrial automation spares.
    • Global shipping with FedEx, UPS, or DHL.
    • Every unit tested (surplus/refurbished) before dispatch.
    • 12-month warranty included.
    • Technical verification prior to shipment.
    • Expert support for obsolete control systems.

Shipping & Delivery

• • • Ships within 24-28 hours after order confirmation.
    • Express courier: FedEx, UPS, DHL (trackable).
    • Secure anti-static packaging.

Professional FAQ – Selection & Experience

• • • Q: Can this drive run a 2.2 kW motor?
      A: No. The 09F5A1D-3A0A is rated for 1.5 kW (2.8 kVA). For 2.2 kW, choose a higher current model.
    • Q: Does it support 1-phase input?
      A: No. It requires 3-phase 305-528V AC. Use a phase converter or select a single-phase variant.
    • Q: How to set up PID control?
      A: Assign one analog input as feedback. Use parameter set to configure PID gain and setpoint.
    • Q: What is the brake resistor value?
      A: The built-in chopper works with minimum 50 ohm resistor. Use KEB GTR7 compatible resistor.
    • Q: Is this unit compatible with Modbus?
      A: No. This base model lacks fieldbus. Use option card for Profibus or CANopen.
