130539-30 Bently Nevada Interconnect Cable with Boot Ready To Ship

Technical Overview

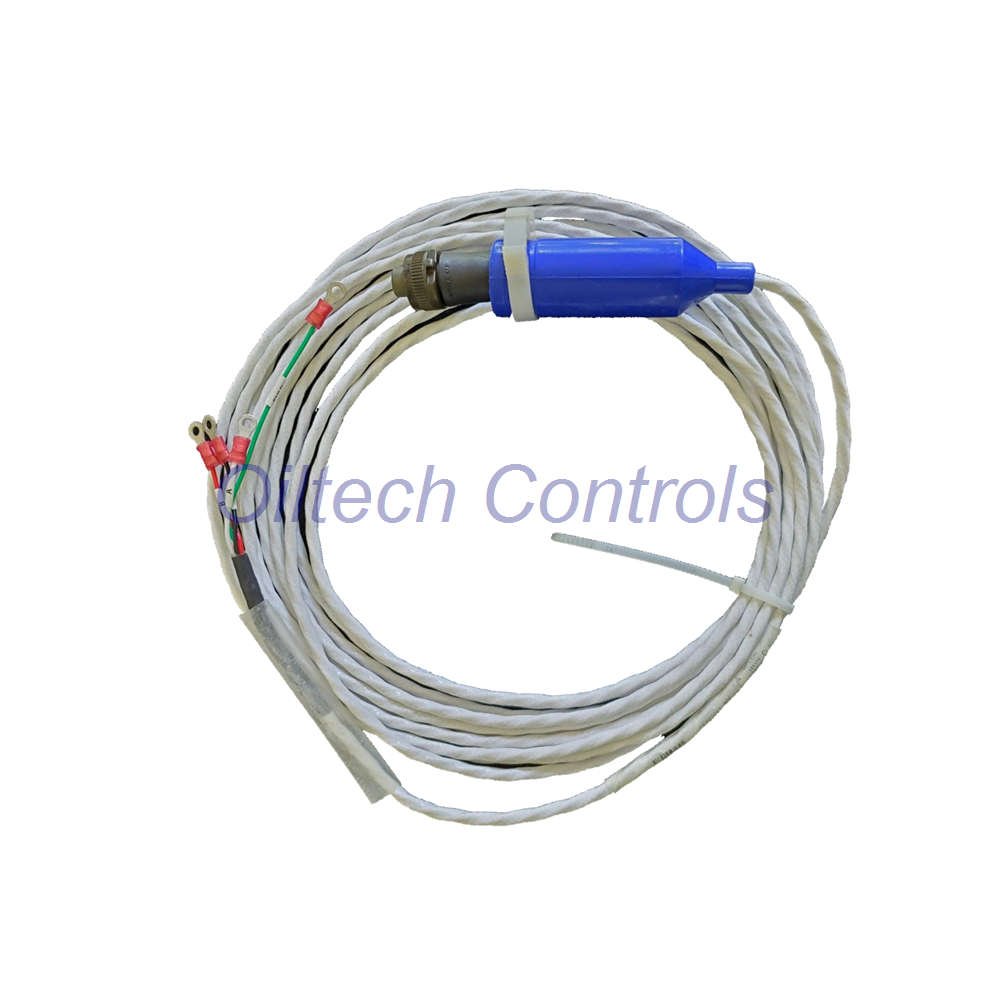

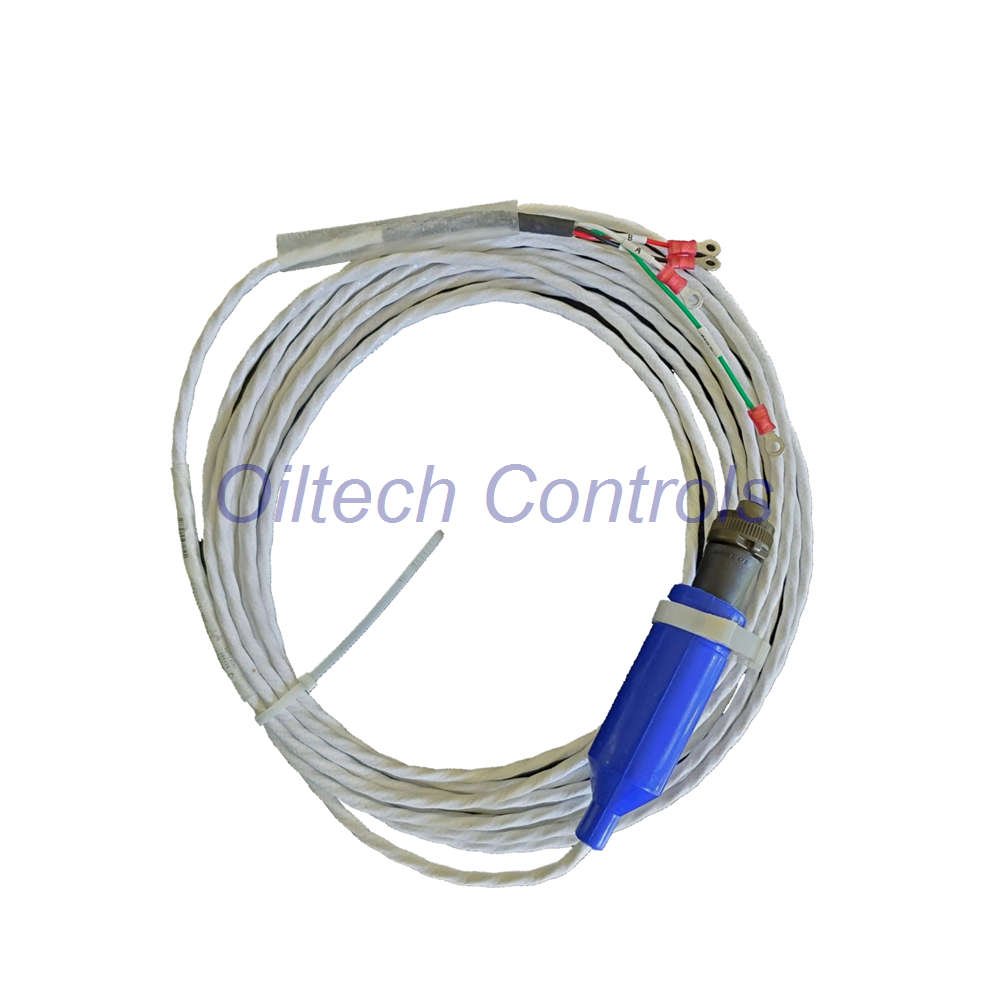

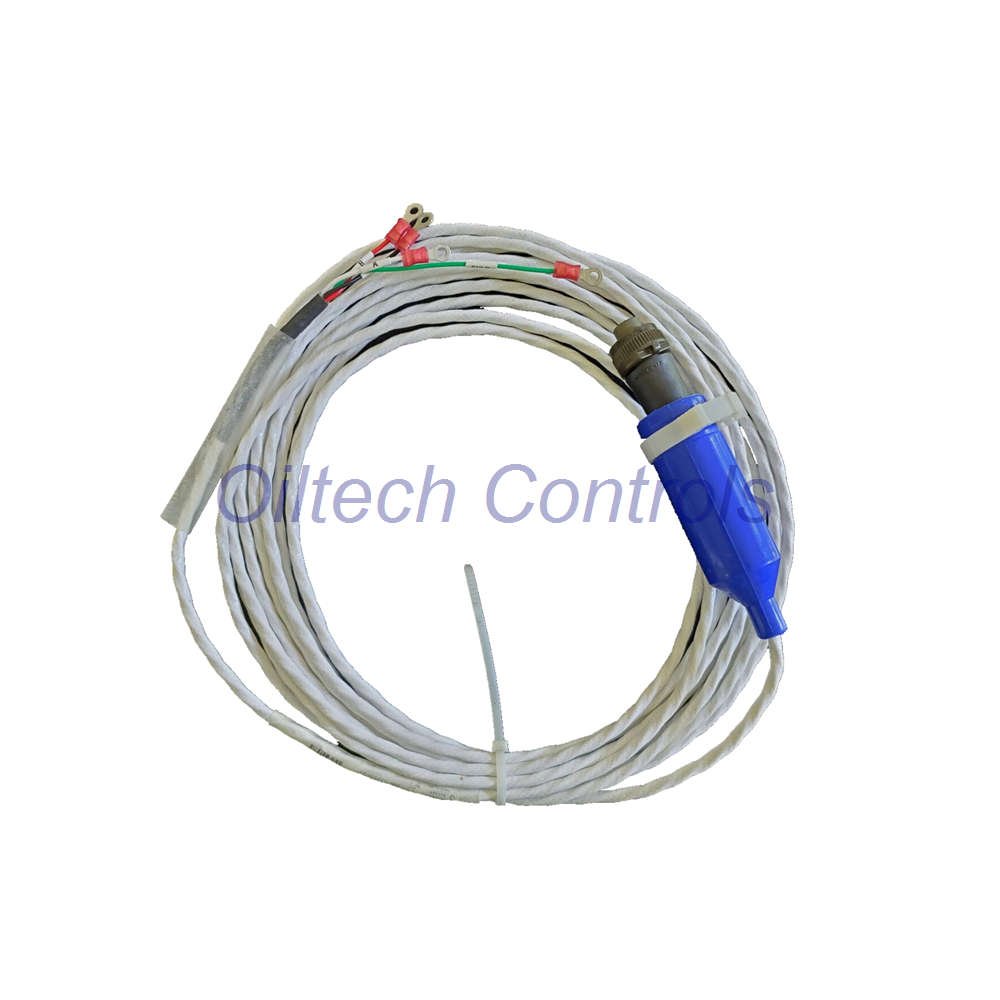

The Bently Nevada 130539-30 is a 30-foot heavy-duty industrial interconnect cable built for sensitive signal transfer between machinery transducers and monitoring electronics. Manufactured in the U.S.A., this assembly features three 18 AWG (1.0 mm²) copper conductors wrapped in continuous shielding to eliminate electromagnetic interference. One end incorporates a molded 3-socket plug encased in a chemical-resistant fluorosilicone elastomer boot, creating a durable moisture seal at the transducer housing interface. The opposite end provides pre-terminated spade lugs for clean wiring inside control cabinets. With a flexible factory length spectrum between 2.0 ft and 99 ft, this standard 30-foot build supports stable dynamic signal transmission over long distances.

Specifications Matrix

Configuration Tree Breakdown

• 130539 Base Interconnect Cable Assembly
  • 3-Conductor 18 AWG Core – Continuous Shielding Structure
    • -30 Option Suffix – 30 Feet Total Cable Length (9.14 m)
    • Side A Termination: 3-Socket Plug with Heavy-Duty Fluorosilicone Boot
    • Side B Termination: Standard Cabinet Fork Terminal Lugs

Applications & Fault Diagnostics

Engineers deploy the 130539-30 cable to link 3-wire dynamic sensors to centralized protection racks under severe plant exposure.

• Connecting seismic velocity transducers on high-speed boiler feed pumps
• Routing acceleration signals on heavy industrial gearboxes and blowers
• Connecting multi-channel vibration transmitters on steam turbine trains
• Shielding low-level dynamic voltage signals from high-current motor VFD interference
• Preventing signal noise corruption during field diagnostic loop checks

Why Buy From Oiltech Controls?

• Over 15 years of industry experience supplying genuine automation and control hardware.
• Fast worldwide shipping network delivering direct to your plant door.
• Comprehensive inventory containing new, excess, and reconditioned industrial parts.
• Full 12-month quality replacement guarantee on all shipped components.
• Thorough pre-shipment bench checking and connector continuity verification.
• Dedicated sourcing for hard-to-find and legacy plant monitoring spares.

Oiltech Controls Limited’s Insight

When replacing field wiring, standard rubber boots degrade quickly when exposed to hot synthetic lube oil. The fluorosilicone boot on the Bently Nevada 130539-30 provides superior chemical resilience, maintaining a tight environmental seal over the 3-socket plug. In high-vibration zones, improper shielding termination creates ground loop noise that corrupts overall vibration readings. Always ground the drain wire at the monitor cabinet end only, exactly as outlined in manual 133080-01, leaving the field boot end ungrounded.

Purchasing & Field Routing Guidance

Ensure smooth field deployment by verifying installation parameters prior to order confirmation:

• Measure total wire runs along cable trays and add 2 to 3 feet for service loops.
• Verify that your field sensor requires a 3-socket plug layout rather than a standard 2-socket head.
• Inspect cable runs to keep signal wires separated from AC power lines by at least 12 inches.
• For immediate stock checks or technical support, contact our sales engineering team via info@oiltechcontrols.com or connect through WhatsApp at +86 158 8020 0923.

Frequently Asked Questions

Q: What material advantages does the fluorosilicone boot provide on the 130539-30?
A: Fluorosilicone resists aggressive industrial chemicals, petroleum oils, and high surface temperatures much better than standard neoprene or silicone boots.

Q: Can I order this cable in lengths other than 30 feet?
A: Yes. The base 130539 series supports custom factory cut lengths ranging from 2.0 ft up to a maximum length of 99 ft in 1.0 ft increments.

Q: Where can I obtain wiring procedures for this cable assembly?
A: Complete terminal pinout and installation instructions are documented in Bently Nevada manual part number 133080-01.

Q: How do I avoid creating a ground loop during terminal lug connection?
A: Connect the shield drain wire to the dedicated shield terminal inside the cabinet junction box only. Do not earth the shield at the sensor boot end.

Q: What is the standard dispatch timeframe for this product?
A: Orders are processed and handed over to express carriers (FedEx, UPS, or DHL) within 12 to 48 hours.
