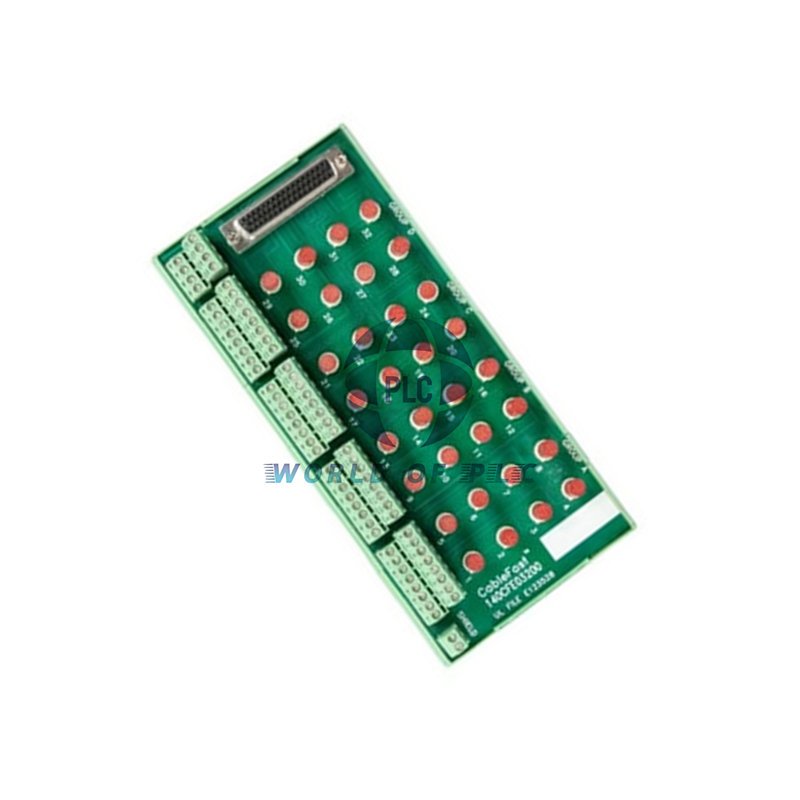

140CFE03200 Schneider Electric Fused Output Block | 32-Point Quantum

Premium Fused Output Block: Schneider Electric 140CFE03200

• Individual fuse protection for each output point
• Secure 32-point wiring solution
• Easy DIN rail installation
• Prevents complete system shutdown
• Reliable captive screw terminals

Technical Details

Brand: Schneider Electric

Model: 140CFE03200 (Full Designation)

Product Type: Digital Output Terminal Block

Fuse Protection: 32 individual 0.8A fuses

Total Points: 32 output contacts

Group Layout: 4 groups of 8 points

Terminals: 2 terminals per point

Connector: SUB-D 50 female

Mounting: Standard DIN rail

Terminal Type: Captive screw design

Dimensions: 10.5cm H x 18.0cm W x 26.5cm L

Weight: 689 grams

Module Compatibility

Designed for 140DDO35301 and 140DDO35300 digital output modules. Perfect match for Quantum systems.

Simple Installation

Quick DIN rail mounting. Easy SUB-D connector. Clear point labeling for fast wiring.

Safety Protection

Individual fusing prevents cascade failures. Isolated circuit protection. Secure connections.

What’s Included

One complete 140CFE03200 terminal block unit. Ready for immediate use. Factory fresh.

Service & Delivery

12-month reliability warranty. Express shipping via FedEx, UPS, DHL. Fast order processing available.

Expert Answers

How many output points does this block have?

32 individual output points with separate fusing.

What is the fuse rating for each point?

0.8 Amp individual fuse protection per point.

What output modules work with this block?

Compatible with 140DDO35301 and 140DDO35300 modules.

How are the points organized?

Arranged in 4 separate groups of 8 points each.

What connector type is used?

SUB-D 50 pin female connector for reliable connection.
