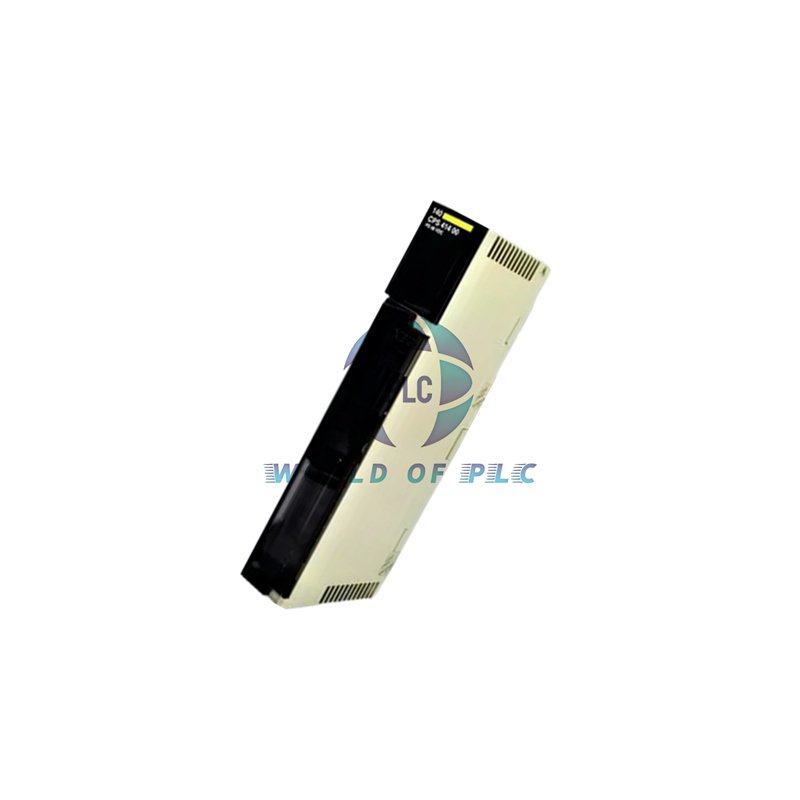

High Voltage DC Power: Schneider Electric 140CPS41400 Power Supply
Industrial DC Power Solution
- The 140CPS41400 handles high voltage DC input systems.
- This Schneider Electric module converts 48-60V DC to 5.1V DC.
- It provides summable power for expandable system requirements.
- You get reliable operation in telecommunications and industrial settings.
- The power supply works with Modicon Quantum automation platforms.
- Your high voltage DC applications receive stable, clean power.
- System power needs grow easily with summable configuration.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CPS41400
- Product Type: Summable DC Power Supply
- Input Voltage: 48-60V DC operating range
- Input Current: 3800 mA maximum draw
- Inrush Current: 14A at 40V maximum
- Output Voltage: 5.1V DC regulated output
- Output Current: 8A per unit summable
- Power Interruption: 13ms tolerance at 48V
- Fuse Rating: 2A time-lag type
- Power Dissipation: 15.6 watts maximum
- Efficiency: >88% typical performance
- Ripple Noise: <25mV peak-to-peak
- Load Regulation: ±0.8% maximum variation
- Line Regulation: ±0.2% maximum change
Protection & Monitoring
- Internal overvoltage protection
- Automatic overload protection
- Short circuit protection
- Over temperature shutdown
- Alarm output: 1 NC contact
- Alarm rating: 6A at 220V
- Green LED power indicator
- Reverse polarity protection
Environmental Ratings
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to 85°C
- Humidity: 95% non-condensing
- Altitude: 5000 meters maximum
- ESD protection: 4kV contact, 8kV air
- EMC immunity: 10V/m 80-2000MHz
- Industrial grade construction
Physical Specifications
- Standard module format
- Weight: 0.65 kg net
- Compact design
- DIN rail mounting
- Easy installation
- Status LED indicator
Shipping Information
- Single unit packaging
- Package weight: 815 grams
- Size: 31.2cm × 16.3cm × 4.5cm
- FedEx, UPS, DHL shipping
- 12 month warranty
- Fast delivery available
- Secure packaging
Technical Questions
- What input voltage does it use?
- It operates with 48-60V DC input, common in telecom applications.
- How does summable power work?
- Multiple units combine to increase total available output current.
- What is the power interruption tolerance?
- It handles up to 13ms power loss at 48V without shutdown.
- What type of fuse does it use?
- It uses a 2A time-lag fuse for surge protection.
- What is the power dissipation?
- Maximum power dissipation measures 15.6 watts during operation.
