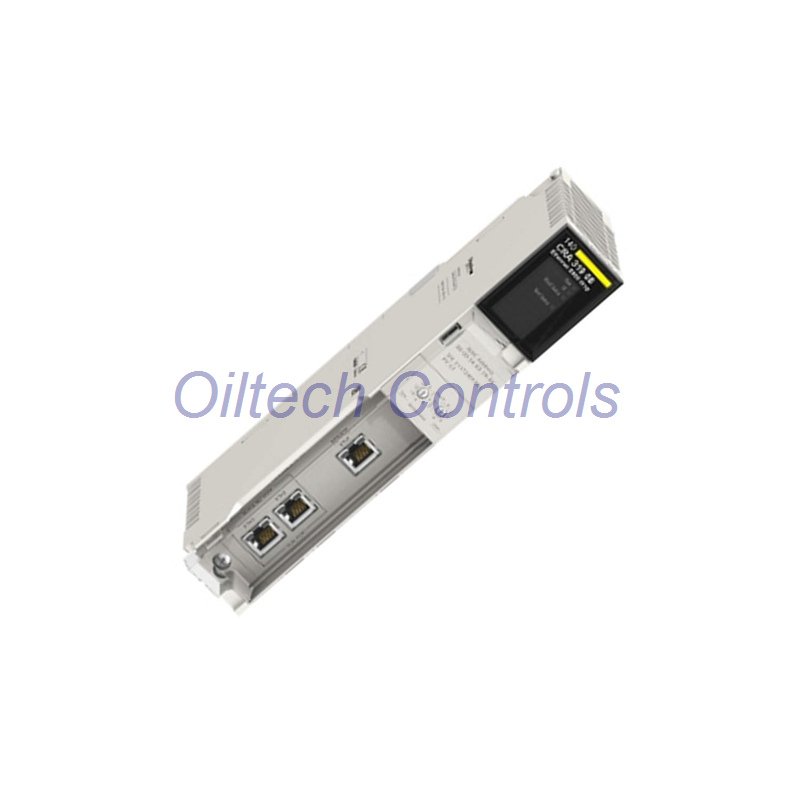

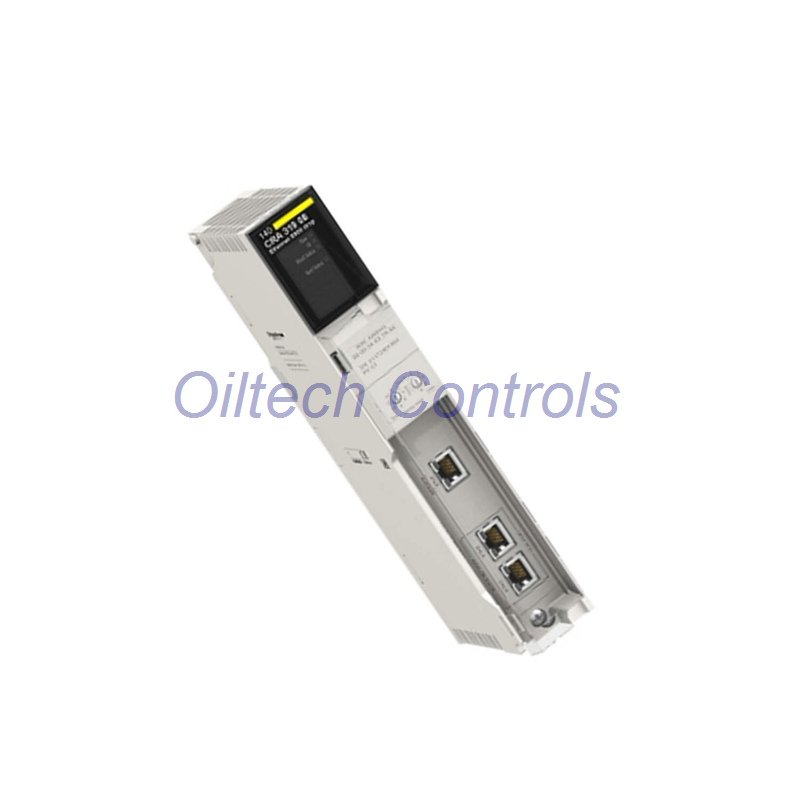

Product Overview: Network Bridge Module
The Schneider Electric 140CRA31908 connects modern and legacy systems. This adaptor links Ethernet-based M580 controllers to older S908 RIO networks. It uses standard Ethernet protocols for easy integration.
Core Features & Advantages
- Dual Protocol Support: Works with EtherNet/IP and Modbus TCP.
- Three-Port Design: Includes service and device network ports for flexible wiring.
- Seamless Integration: Bridges Modicon Quantum M580 systems to S908 remote I/O.
- Clear Diagnostics: Four status LEDs for instant module and network health checks.
- Industrial Rugged: Rated for standard and Class I Division 2 hazardous locations.
Complete Technical Specifications
- Brand & Model: Schneider Electric 140CRA31908
- Product Type: Ethernet RIO Drop Adaptor.
- Compatible Series: Modicon Quantum (M580).
- Rated Voltage/Current: 5 VDC, 1.2 A.
- Maximum Power: 6 Watts.
- Ethernet Ports: 3 ports total.
- Network Protocols: EtherNet/IP, Modbus TCP.
- Topology: Daisy-chain loop on S908 bus.
- Status Indicators: 4 LEDs (Module, Network, RUN, I/O).
- IP Rating: IP20.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Operating Humidity: Up to 80% non-condensing.
- Vibration Resistance: 3.5 mm amplitude (0.5-8.4 Hz), 1 gn (8.4-150 Hz).
- Operating Altitude: Up to 2000 meters.
- Key Certifications: UL 508, CE, CSA C22.2 No 142.
- Dimensions (HxW): 50 mm x 167 mm (2.0 in x 6.6 in).
- Weight: 0.554 kg (1.221 lb).
Warranty & Global Shipping
- All modules include a 12-month warranty.
- Fast worldwide delivery via FedEx, UPS, and DHL.
Frequently Asked Questions
What problem does this adaptor solve?
It allows new M580 Ethernet controllers to communicate with existing S908 coaxial remote I/O networks, protecting your legacy investment.
How do the three Ethernet ports function?
One is a service port for configuration. The other two form a device network for daisy-chaining multiple adaptors or devices.
What is a common configuration error?
Forgetting to set the correct IP address and network parameters for both the service and device network ports during setup.
Can I use this in a safety system?
It is certified for Class I Division 2 hazardous locations, but always verify it meets your specific safety application requirements.
How do I choose between different drop adaptors?
Choose the 140CRA31908 if you need to connect an M580 PLC to an existing S908 RIO network using standard Ethernet cabling and protocols.
