Product Short Description

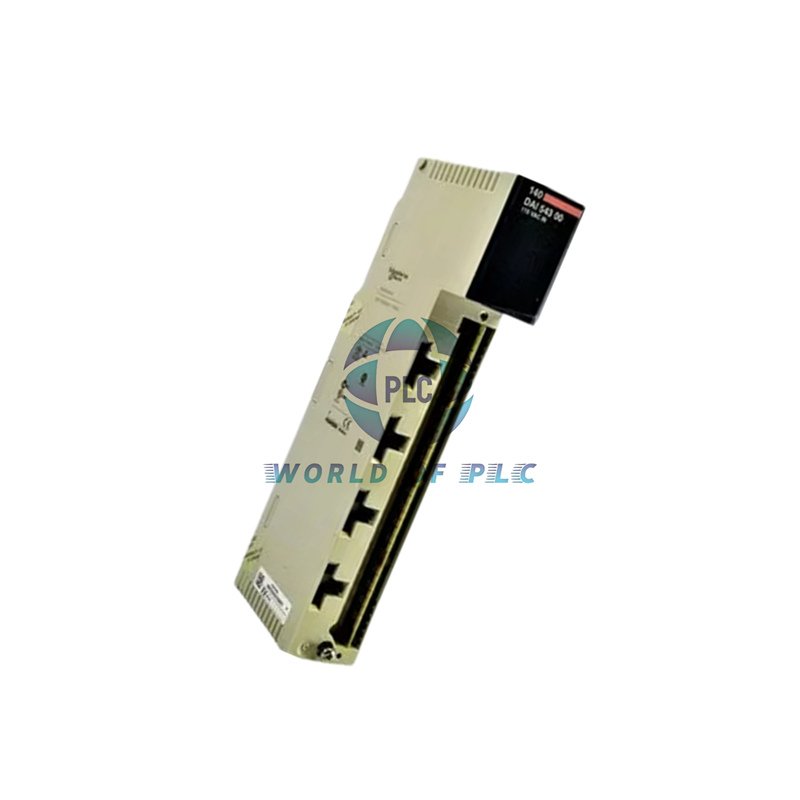

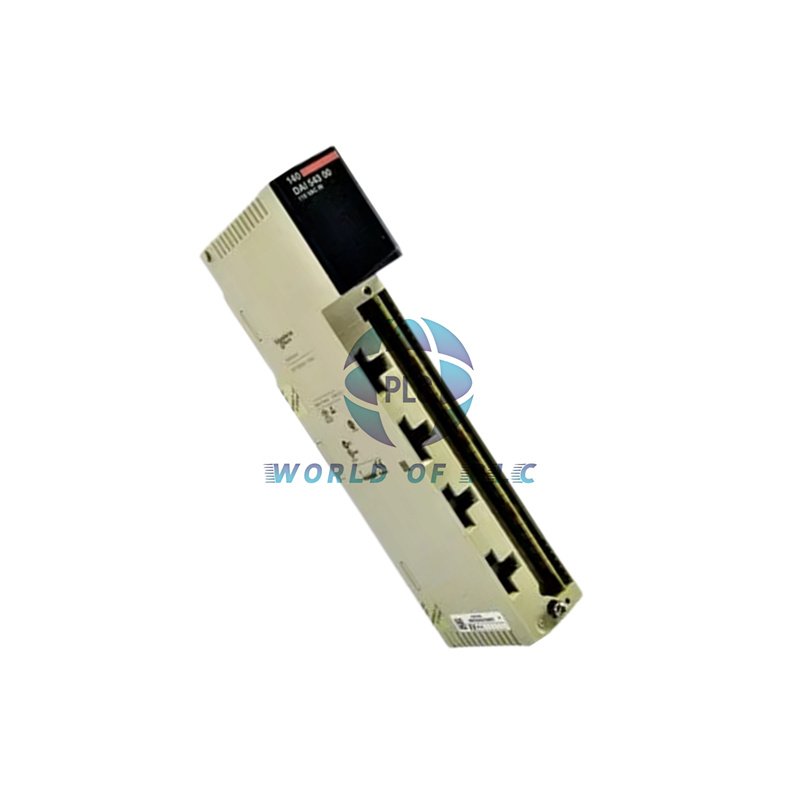

The Schneider Electric 140DAI54300 is a Modicon Quantum discrete input module.
It supports 16 channels with 115V AC signals.
It offers high isolation, fast response, and stable operation for industrial control systems.
Overview
- Designed for high-voltage AC input signals
- Compatible with Modicon Quantum platform
- Used in power, oil, gas, and factory systems
- Accurate signal reading with strong safety design
Key Technical Highlights
- 16 discrete AC input points
- Rated input voltage: 115 V AC
- Two isolated channel groups
- One input word addressing
- Network frequency: 47 to 63 Hz
- Input current up to 13.2 mA
- Low leakage current design
- Fast signal response time
Extended Electrical Parameters
- Voltage ON range up to 132 V AC
- Voltage OFF range down to 0 V AC
- Maximum surge input: 200 V for one cycle
- Isolation rating: 1780 Vrms for 1 minute
- Bus current requirement: 180 mA
- Maximum power dissipation: 5.5 W
Environmental & Reliability Data
- Operating temperature: 0 to 60 °C
- Storage temperature: -40 to 85 °C
- Humidity up to 95% non-condensing
- High resistance to ESD and EMI
- Certified for industrial and hazardous areas
Functional Advantages
- Clear LED status for each input
- Quick fault detection
- Stable under electrical noise
- Low heat generation
- Long service life
- Easy rack installation
Typical Applications
- Power distribution systems
- Motor control centers
- Oil and gas facilities
- Factory automation lines
- High-voltage signal monitoring
Warranty & Shipping
- 12-month quality warranty
- 100% tested before delivery
- Worldwide fast shipping available
- FedEx, UPS, and DHL supported
Professional FAQ
- Is this module suitable for 115V AC signals?
- Yes. It is designed specifically for 115V AC input use.
- Can it work in high-noise environments?
- Yes. It includes strong isolation and EMI protection.
- How many inputs can be read at once?
- It reads 16 discrete input signals simultaneously.
- Is it suitable for system upgrades?
- Yes. It fits directly into existing Quantum racks.
- How do I choose the correct input module?
- Select based on voltage level and input count needs.
