Product Architecture & Technical Summary

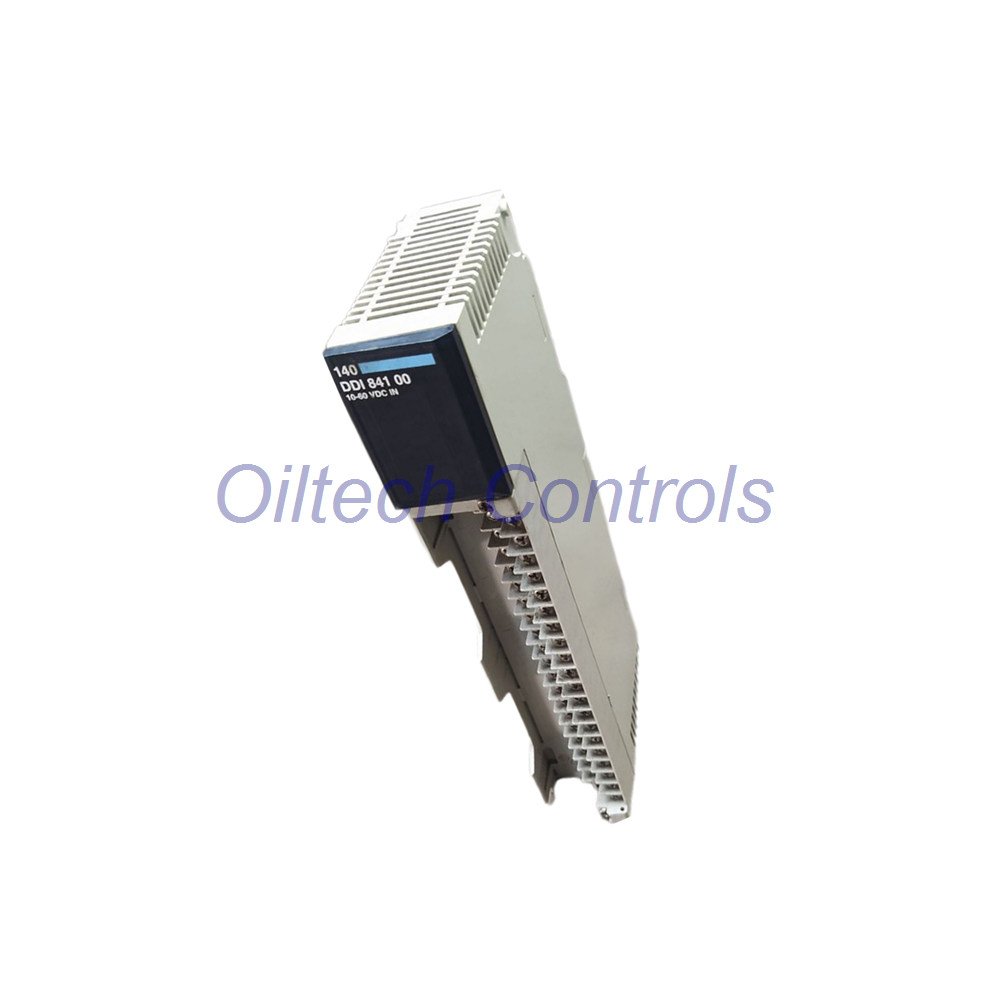

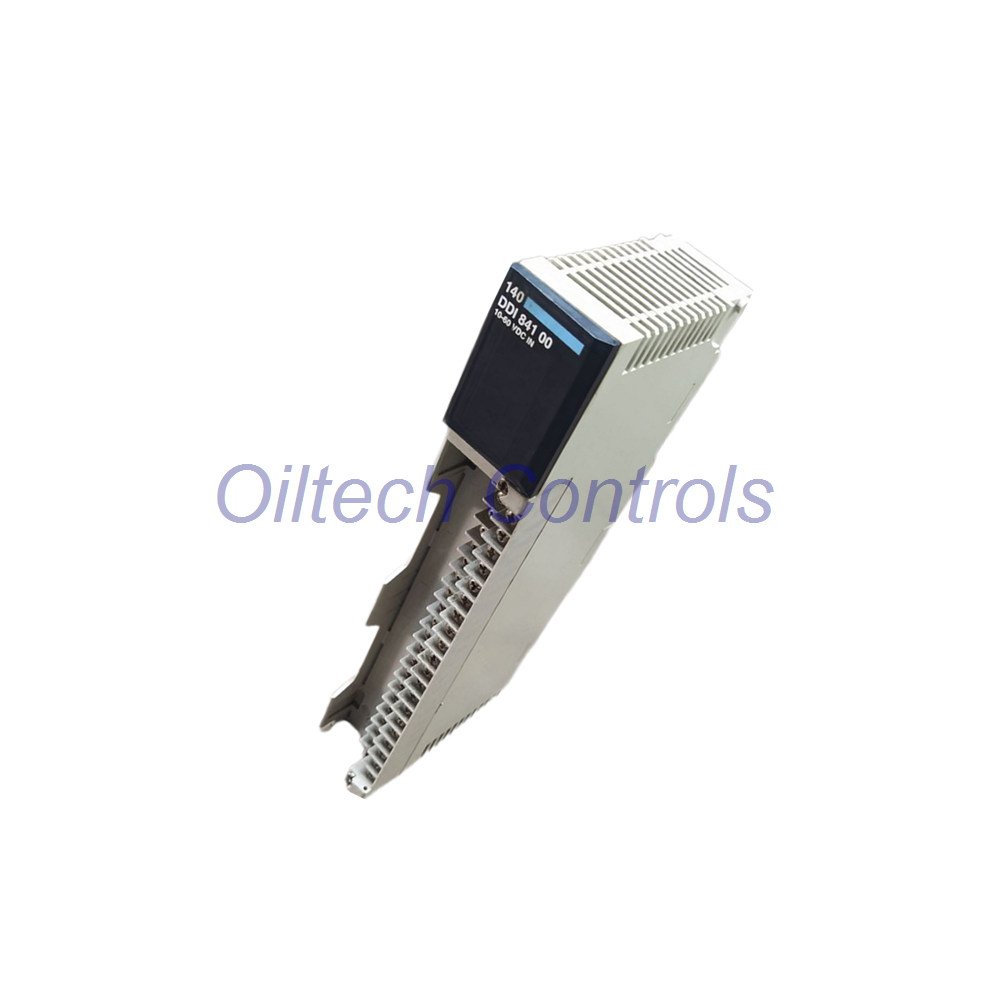

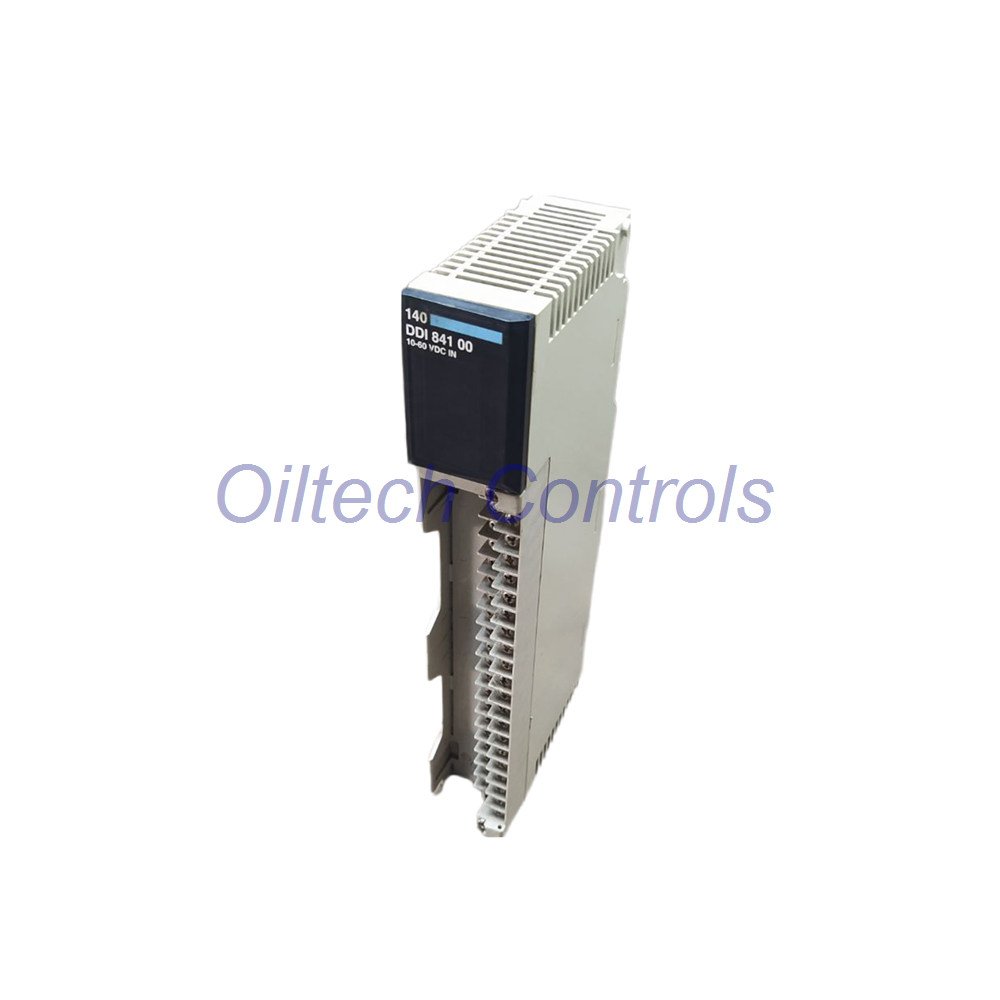

The Schneider Electric 140DDI84100 is a wide-voltage 16-point DC discrete input module engineered for the Modicon Quantum automation platform. Operating across a flexible 10…60 V DC input range with positive (sink) logic, it incorporates 8 isolated channel pairs to handle varying control voltages within a single backplane slot. The unit maps directly to 1 input word in backplane memory, delivering a fast 4 ms switching response time up to 100 Hz. Designed for severe industrial noise environments, it provides high channel-to-bus galvanic isolation rated at 2500 Vrms DC for 1 minute and channel-to-channel isolation at 700 Vrms DC.
Looking for full pinout diagrams and mounting instructions? Contact us to download the official 140DDI84100 technical manual.
Technical Data Matrix
- Brand: Schneider Electric
- Model Number: 140DDI84100
- Product Series: Modicon Quantum Automation Series
- Channel Density & Logic: 16 points divided into 8 channel groups with Positive (sink) logic
- Voltage Range Limits: Continuous operational limits from 10 to 60 V DC (Absolute Max 75 V)
- Voltage State 1 Guaranteed: 9…12 V (12 V nominal), 11…24 V (24 V nominal), 34…48 V (48 V nominal), 45…60 V (60 V nominal)
- Voltage State 0 Guaranteed: 0…1.8 V (12 V nominal), 0…5 V (24 V nominal), 0…10 V (48 V nominal), 0…9 V (60 V nominal)
- System Addressing & Rate: Requires 1 input word; maximum switching frequency of 100 Hz
- Response Time Performance: 4 ms off-to-on transit time; 4 ms on-to-off transit time
- Galvanic Isolation: 2500 Vrms DC (1 min) channel-to-bus; 700 Vrms DC (1 min) channel-to-channel
- Thermal Dissipation & Power: 200 mA backplane bus current; Power dissipation 1 W + (0.62 x active points)
- Operating Temperature Range: 32 to 140 °F (0 to 60 °C) operating; -40 to 185 °F (-40 to 85 °C) storage
- Environmental Immunity: ESD immunity 4 kV contact / 8 kV air; RF field immunity 10 V/m; 95% non-condensing humidity
- Compliance Standards: CE, UL 508, CSA C22.2 No 142, FM Class 1 Division 2, C-tick certified
Suitable Equipment & System Integration
- Standard rack mounting directly into any Modicon Quantum primary or expansion backplane chassis.
- Multi-voltage field sensor interfacing, including 12V, 24V, 48V, and 60V DC discrete field devices.
- Substation automation equipment needing high voltage channel group isolation to prevent ground loops.
- Heavy industrial machinery status monitoring including limit switches, proximity sensors, and relay contacts.
- Legacy migration and retrofit projects upgrading obsolete control cabinets using existing high-voltage DC field wiring.
Oiltech Controls’s Technical Insight & Diagnostic Capabilities
- LED Array Diagnostics: Integrated front panel features 1 green bus status LED, 1 red module fault LED, and 16 green individual channel status LEDs for quick signal tracing.
- Wide Voltage Capability: The 140DDI84100 eliminates interposing relays by accepting varying 10-60V DC field voltages across distinct groups.
- Engineering Maintenance Advantage: Active circuit protection limits surge damage, reducing physical component breakdown during external line transients.
- Pre-Shipment Verification: Every module undergoes 100% channel signal testing and backplane communication checks under active load before dispatch.
Order, Dispatch & Warranty Details
- Package Contents: 1x factory-sealed or fully verified Schneider Electric 140DDI84100 module in anti-static ESD packaging.
- Rapid Dispatch: Fast warehouse handling guarantees dispatch within 24-28 hours upon order confirmation.
- Express Carriers: Ships worldwide via expedited air services including FedEx, UPS, and DHL.
- Warranty Protection: Backed by a comprehensive 12-month full replacement warranty.
Why Choose Oiltech Controls?
- Over a decade and a half of dedicated expertise in sourcing legacy and current industrial automation hardware.
- Worldwide logistics support delivering parts safely to over 100 countries.
- Rigorous quality testing protocols on all surplus, factory-sealed, and refurbished units.
- Complete 12-month warranty coverage on all delivered parts.
- Engineering-level technical validation on all modules prior to shipment.
- Specialized inventory dedicated to sustaining obsolete and hard-to-find control platforms.
- Contact our engineering team at info@oiltechcontrols.com or via WhatsApp at +86 158 8020 0923.
Frequently Asked Questions (FAQ)
- Q: Can I mix different input voltages (e.g., 24V DC and 48V DC) on the same 140DDI84100 module?
A: Yes. Because the module offers 8 isolated channel groups with 700 Vrms isolation between groups, you can wire distinct voltage levels across separate isolated groups safely without signal interference. - Q: How does the 140DDI84100 compare to the 140DDI35300 in backplane addressing?
A: The 140DDI84100 is a 16-point module requiring only 1 input word in controller memory, whereas the 32-point 140DDI35300 requires 2 input words. - Q: What selection factors should I check before replacing an existing DC input card with the 140DDI84100?
A: Verify field logic configuration (requires positive/sink logic), ensure field voltage falls within 10-60V DC, and confirm your rack power supply has at least 200 mA available on the 5V bus. - Q: Why is my channel LED failing to turn ON even though field voltage is applied?
A: Ensure field input voltage meets the minimum ON state threshold (e.g., at least 11 V for a 24V nominal circuit). Check logic polarity to ensure common returns are wired correctly for sink logic. - Q: How do you handle obsolete parts testing for the Modicon Quantum series?
A: Our technicians insert the 140DDI84100 into a live Modicon Quantum test rack, cycle all 16 channel inputs through full voltage sweeps, and verify bus communication flags before shipping.
