Product Overview

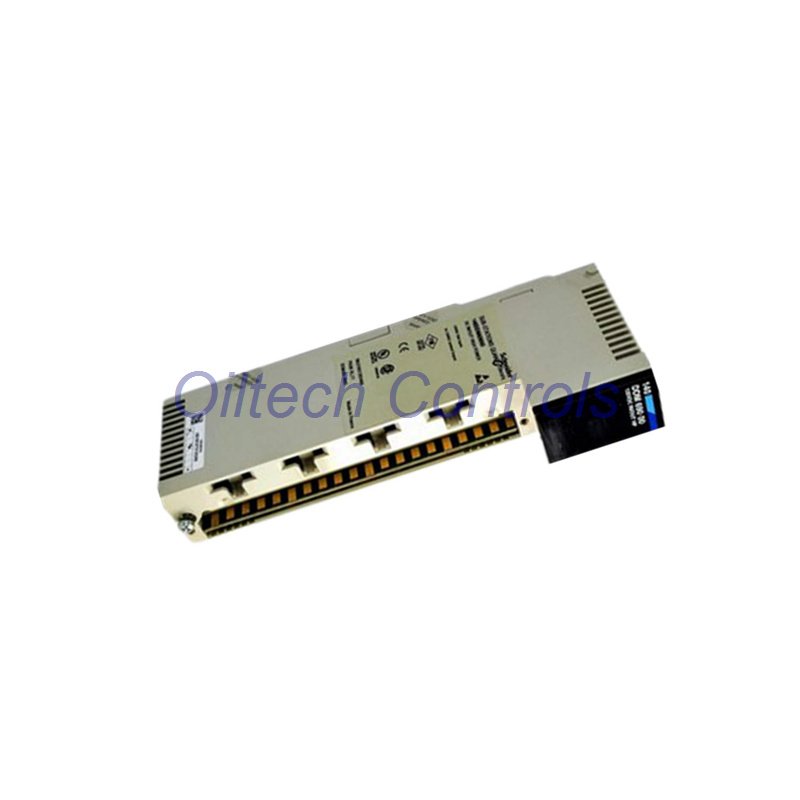

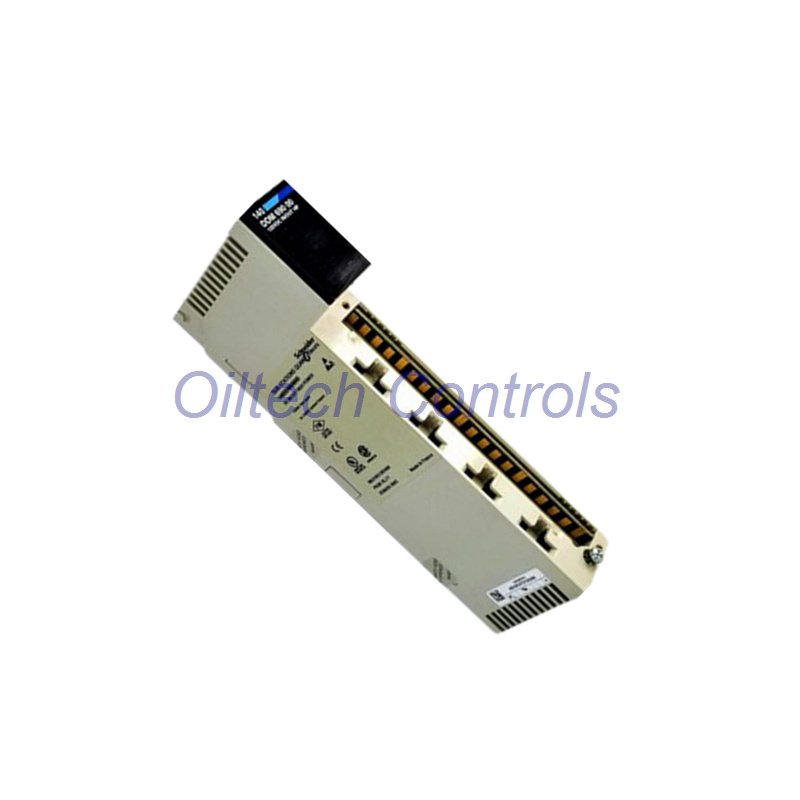

The Schneider Electric 140DDM69000 is a compact discrete I/O module for Modicon Quantum
PLC systems. It combines inputs and outputs in one unit.
Main Benefits
- Combines input and output in one module
- Wide DC voltage range for flexible use
- Solid state outputs for long service life
- Compact size saves rack space
- Stable performance in industrial cabinets
Product Identification
- Manufacturer: Schneider Electric
- Model number: 140DDM69000
- Series:
Modicon Quantum
- Product type: Discrete I/O module
- EAN: 3595861136939
I/O Structure
- Total I/O points: 8
- Discrete inputs: 4 points
- Input logic: Sinking
- Discrete outputs: 4 points
- Output logic: Sink or source
Electrical Characteristics
- Operating voltage range: 19.2 to 156.2 V DC
- Maximum leakage current: 1.2 mA at 150 V DC
- Bus current requirement: 350 mA
- Isolated solid state output channels
Performance Features
- Fast response for discrete signals
- Low power loss during switching
- High noise resistance
- Reliable signal handling over time
Mechanical Information
- Weight: 0.68 kg
- Height: 163 mm
- Width: 45 mm
- Depth: 312 mm
- Rack mounted design
System Compatibility
- Works with Quantum local I/O racks
- Supports mixed I/O configurations
- Suitable for system expansion
Typical Applications
- Process automation systems
- Industrial control panels
- Power and utility stations
- Oil and gas control systems
Warranty and Shipping
- Warranty period: 12 months
- Shipping methods: FedEx, UPS, DHL
- Safe industrial packaging
Professional FAQ
- Why choose a combined I/O module?
It reduces rack space and wiring effort.
- Is this module suitable for high voltage DC?
Yes. It supports up to 156.2 V DC.
- How do I select input logic type?
Check field device wiring before selection.
- Are the outputs protected?
Yes. Outputs are isolated and solid state.
- When should I upgrade to a larger I/O module?
Upgrade when signal count increases.
