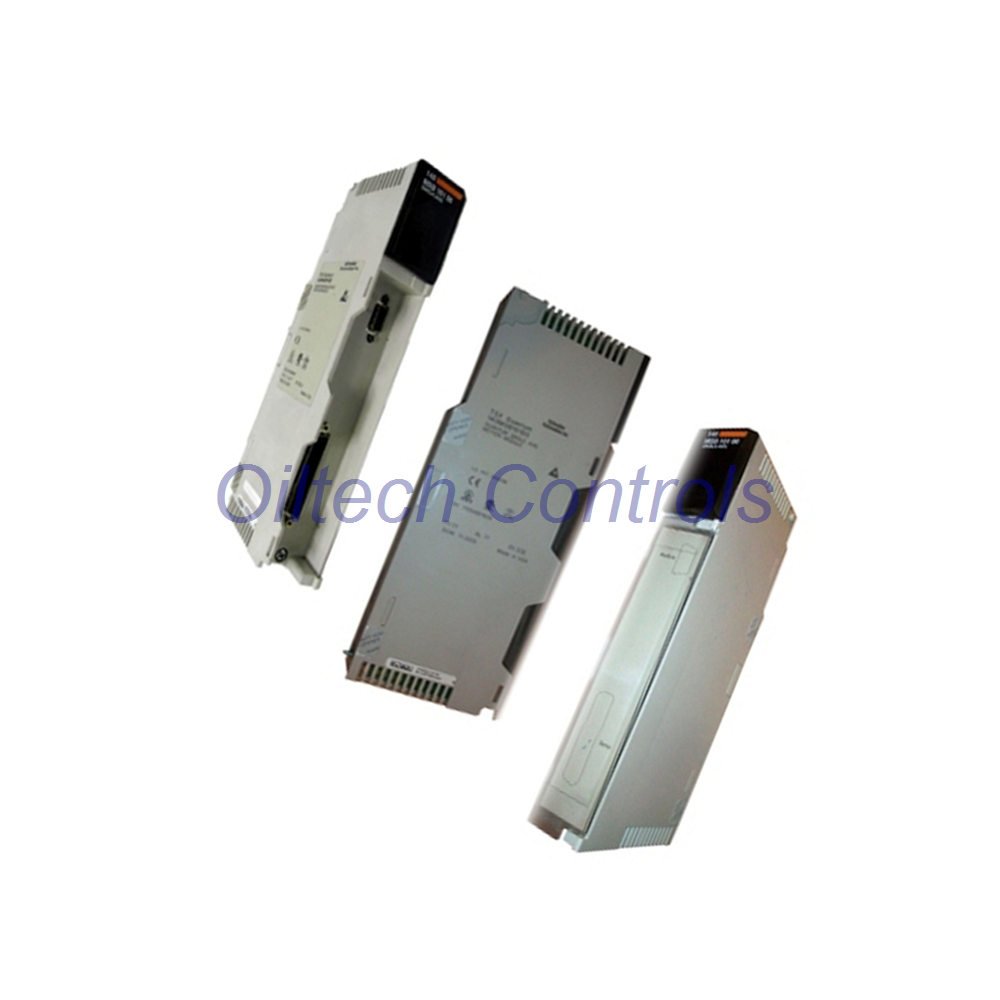

140MSB10100 Schneider Modicon Quantum Single Axis Motion Module

Product Overview

Upgrade your motion control infrastructure with the 140MSB10100 single axis motion module from the Modicon Quantum series. This engineering-grade hardware handles one real axis and one remote axis seamlessly. It provides synchronization for master and slave speeds with precise positioning ranges. Download the official user manual to review wiring diagrams and configuration settings before setup. Reach out to our technical support team at info@oiltechcontrols.com or connect via WhatsApp at +86 158 8020 0923 for expert assistance.

Technical Specifications

• Manufacturer & Model: Schneider Electric 140MSB10100
• Series Platform: Modicon Quantum automation platform
• Axis Configuration: 1 real axis, 1 remote axis
• Encoder Interface: Differential encoder 5V with 500 Ohm impedance
• Incremental Frequency: Up to 500 kHz (x1) and 2000 kHz (x4)
• Loop Update Time: 1 ms position loop, 0.5 ms speed loop
• Memory & Programs: 650 flash memory commands, 28 traversing programs
• Power Requirements: 1000 mA at 5V DC rack, 500 mA at 24V DC external power
• Environmental Range: Operating temperature 0 to 60 °C, storage -40 to 85 °C

Oiltech Controls Review and Insight

• The 140MSB10100 module delivers exceptional reliability for high-speed industrial positioning loops.
• Engineers appreciate the built-in diagnostic LEDs that simplify fault isolation during runtime.
• The robust metal housing withstands heavy electromagnetic interference in complex factory floors.
• Integration into existing Modicon Quantum racks requires minimal configuration time using standard programming tools.

Compatible Equipment and Industrial Applications

• High precision multi-axis CNC machinery and milling equipment
• Automated material handling and conveyor synchronization systems
• Industrial packaging lines requiring rapid absolute and relative movement control
• Servo-driven robotic assembly stations and positioning gantries

Installation and Logistics Details

• Quick dispatch within 24 to 28 hours after order confirmation.
• Secure global shipping options available via FedEx, UPS, and DHL.
• Backed by a comprehensive 12-month replacement warranty for peace of mind.

Frequently Asked Questions

• What encoder voltage does the 140MSB10100 module require?
  The module operates with a differential encoder 5V power supply within a +/- 20 percent tolerance range.
• How does the module handle position updates during operation?
  It utilizes a fast 1 ms position loop and a 0.5 ms speed loop to maintain high system accuracy.
• What should I check if a servo drive fault input triggers unexpectedly?
  Verify the 5V TTL signal wiring, check the auxiliary input voltage levels, and inspect the 50-pin SUB-D servo cable connection.
• Can this module execute absolute and relative movements simultaneously?
  Yes, it supports 28 traversing programs capable of handling absolute, relative, homing, and continuous motion profiles.
• What factors should I consider when selecting this module for an upgrade?
  Ensure your backplane provides adequate 5V rack current, verify encoder frequency compatibility up to 2000 kHz, and confirm your software supports Modicon Quantum motion instructions.
