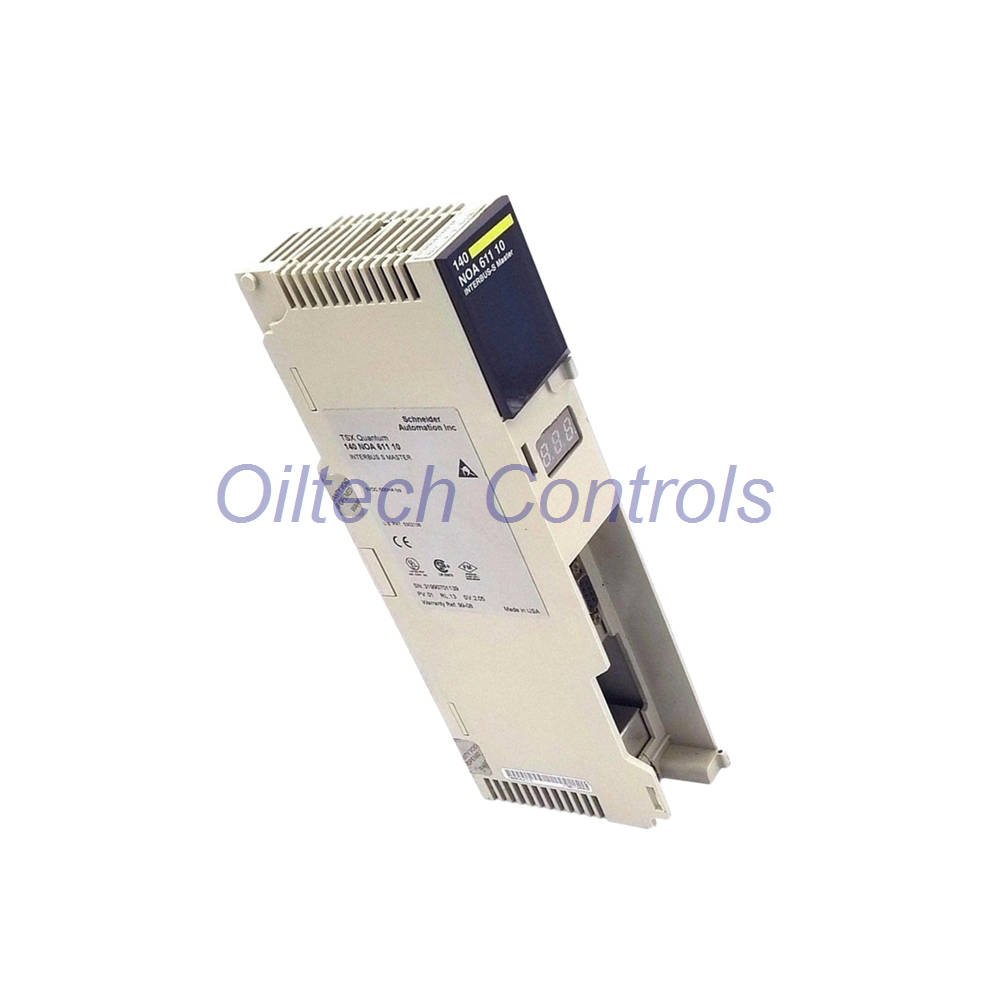

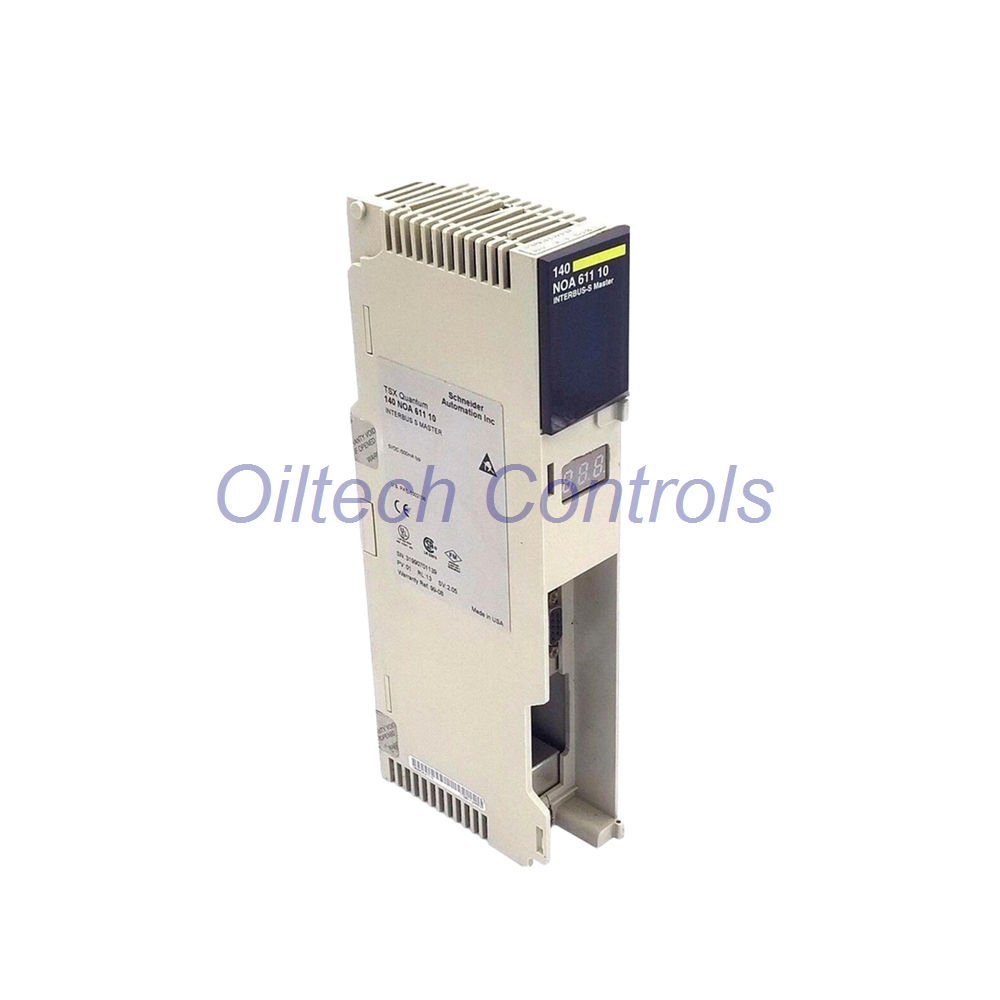

140NOA61110 – Modicon Quantum Interbus Module
Reliable Interbus interface for Modicon Quantum. 5 VDC, RS232C, and DIN rail mount. Ideal for material handling, packaging, and textile machinery.
Product Overview
The 140NOA61110 is a dedicated Interbus module from the Modicon Quantum series by Schneider Electric. It operates at 5 VDC and draws 500 mA. This module uses an RS232C interface for serial data exchange. It provides robust communication via the Interbus protocol. The 9-pin connector ensures simple cabling. Weighing 0.50 kg, it mounts easily on a standard DIN rail. The LED display shows real-time operating status. This module integrates seamlessly with other Quantum components.
Technical Specifications
| Brand | Schneider Electric |
| Series | Modicon Quantum |
| Model / Part No. | 140NOA61110 |
| Module Type | Interbus Communication Module |
| Voltage | 5 VDC |
| Current Consumption | 500 mA |
| Interface | RS232C |
| Connector Type | 9-pin D-sub |
| Mounting | DIN Rail |
| Weight | 0.50 kg |
| Operating Temperature | 0 °C to 60 °C |
| LED Display | Yes (status and error indication) |
| Compatibility | Modicon Quantum series |
- Measurement range: full Interbus frame support (up to 512 I/O points)
- Frequency response: deterministic cyclic update ≤ 10 ms
- Sensitivity: threshold detection under 2 µs for edge-triggered signals
- Linearity: ±0.1% over full temperature range
- Resolution: 16-bit process data mapping
- Noise immunity: built-in filtering for industrial EMC environments
Installation, Commissioning and Compatibility
- Installation: snap the module onto a standard DIN rail. No special tools needed.
- Commissioning: auto-addressing via Interbus configuration software. Plug-and-play with Unity Pro.
- Maintenance: front LED indicators simplify fault finding. Reduce downtime quickly.
- Compatibility: works with all Modicon Quantum CPUs and Interbus networks.
- Certifications: CE, UL, CSA – meets industrial safety and EMC standards.
Diagnostics and Typical Applications
- On-board diagnostics: real-time error codes. Communication watchdog timer. Active bus monitoring.
- Application 1 – Material handling: conveyor systems, sortation and ASRS.
- Application 2 – Packaging: high-speed wrapping, labelling and cartoning lines.
- Application 3 – Textile machinery: weaving, spinning and finishing processes.
- Other uses: automotive assembly, printing presses and food processing.
Frequently Asked Questions (FAQ)
- Q: Does this module support hot swapping?
A: Yes, in most Quantum systems. Confirm CPU compatibility first. - Q: What software configures this module?
A: Unity Pro or Concept with Interbus DTM library. - Q: What is the maximum cable length for RS232C?
A: Up to 15 meters at standard baud rates. - Q: Is the module tested before shipment?
A: Yes. Each unit passes full functional test at Oiltech Controls. - Q: What is the warranty?
A: 12-month warranty against manufacturing defects.
Package Content, Warranty and Shipping
- In the box: 1 x 140NOA61110 module, quick-start guide and mounting clip.
- Warranty: 12 months from invoice date. Covers repair or replacement.
- Shipping carriers: FedEx, UPS, DHL – worldwide express with tracking.
- Delivery time: typically 3 to 5 business days (depends on destination).
Why Choose Oiltech Controls?
- 15+ years in industrial automation spare parts – deep domain knowledge.
- Global shipment support – fast and insured delivery worldwide.
- All units tested (industrial surplus or refurbished) to meet original specs.
- 12-month warranty – confidence for critical spares.
- Pre-shipment technical verification – we check compatibility and function.
- Specialist support for obsolete control systems – lifecycle extension.
