140XTS01203 CableFast System Cable

Modicon Quantum · 0.9 m terminated high-power cable · 50-pin D-SUB to Quantum I/O

Product Overview

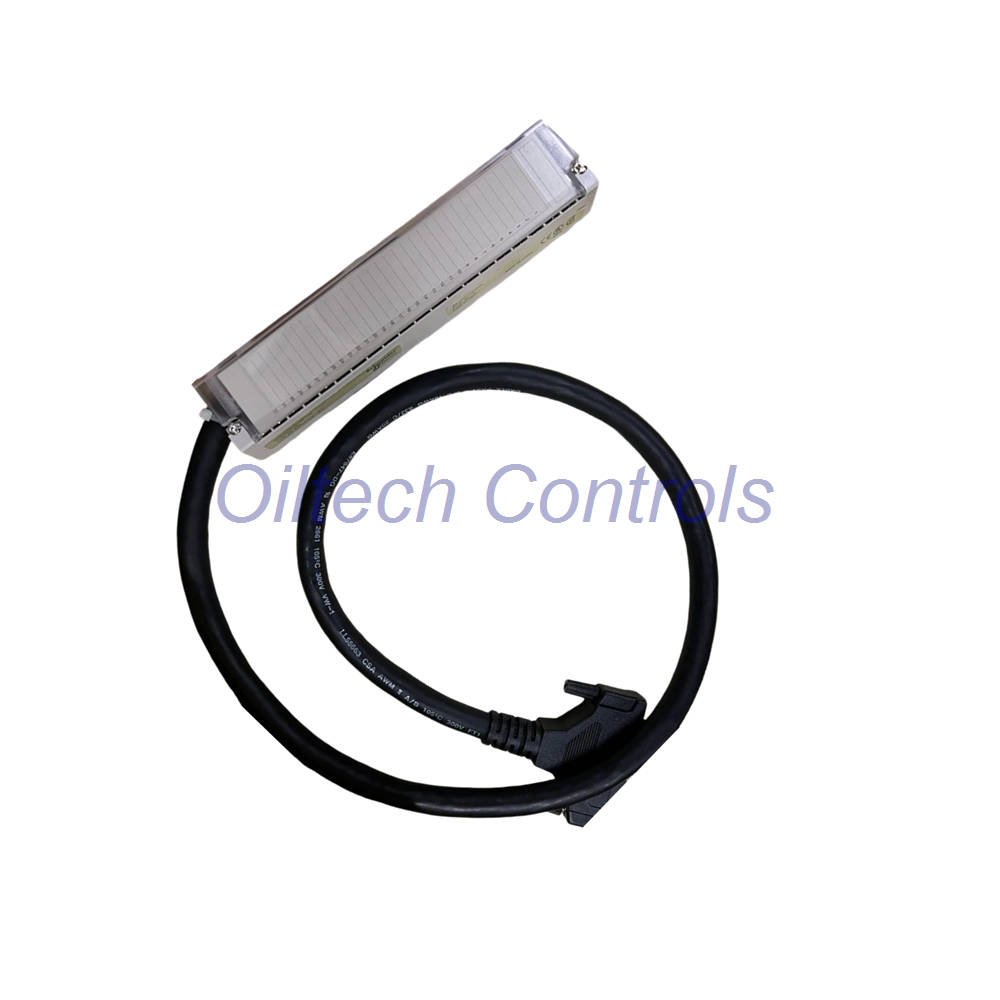

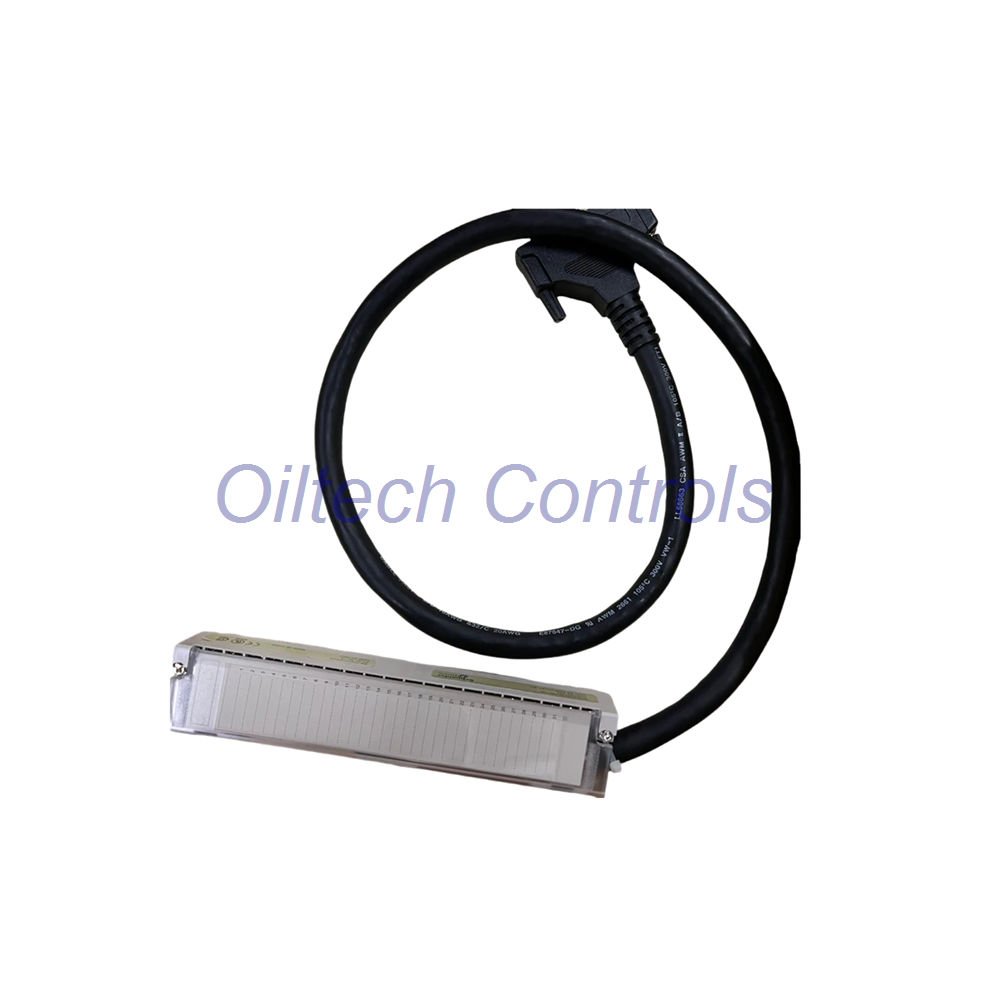

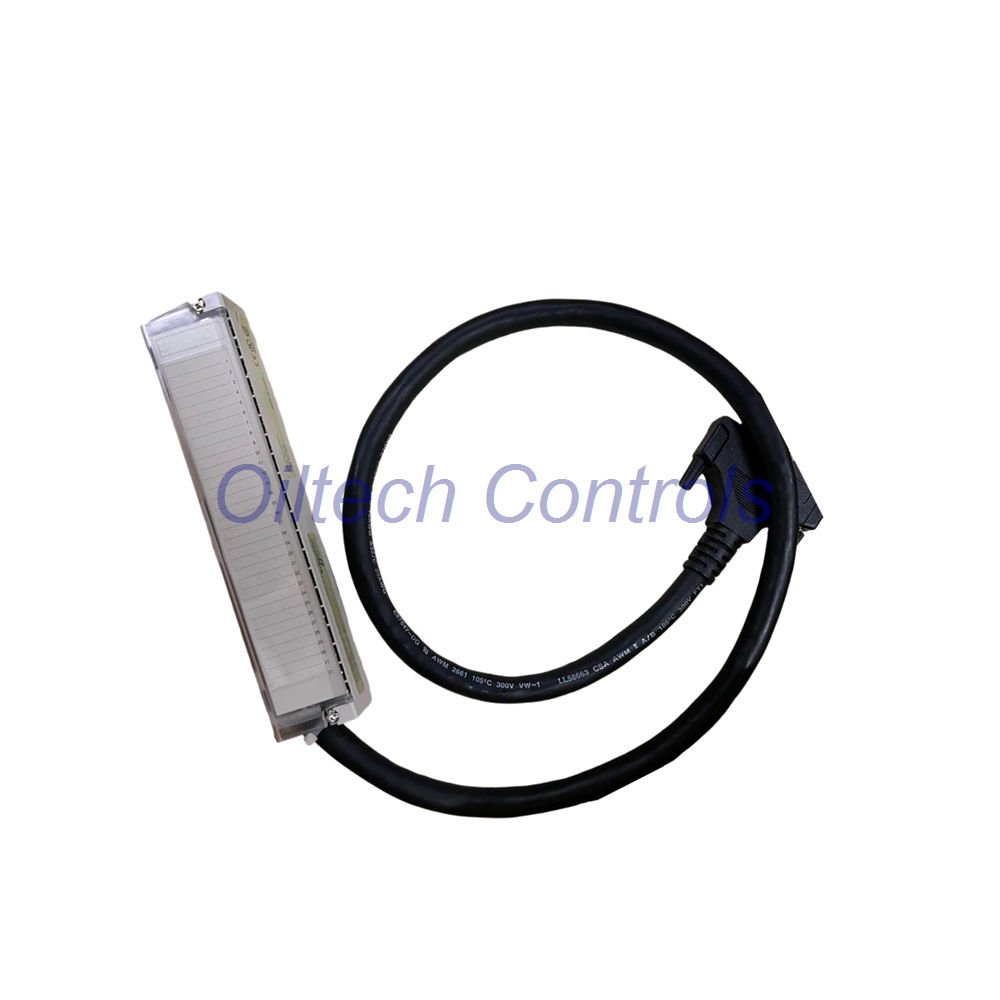

140XTS01203 is a terminated CableFast system cable for the Modicon Quantum platform.
This high-power cable connects Quantum I/O modules to field devices via a 50-pin SUB-D connector.
At 0.9 m (3 ft) length, it suits compact rack layouts and cabinet installations.
One end features a dedicated Quantum I/O connector; the other provides a standard SUB-D 50-pin interface.
As a result, this cable streamlines termination and reduces wiring complexity in control panels.

Technical Specifications

• Brand: Schneider Electric · Modicon Quantum series
• Model: 140XTS01203 – CableFast terminated cable
• Cable length: 0.9 m (3.0 ft) · High-power type
• Connector A: 1× Quantum I/O dedicated connector
• Connector B: 1× SUB-D 50-pin male
• Power type: High-current capacity for I/O and field supply
• Jacket: Black · Flexible for tight cabinet routing
• Category: Connection accessories · CableFast system cable
• Origin: US · GTIN 3595861132283

Compatibility & Oiltech Controls Insight

• Compatible with: Quantum discrete I/O modules, analog mix, and power supplies using 50-pin D-SUB interface.
• Typical devices: 140DDO35300, 140DDI35300, 140ACI04000, and similar Quantum I/O racks.
• Oiltech Controls Insight: This terminated cable eliminates field wiring errors common with DIY harnesses.
• Furthermore, its fixed length ensures consistent signal integrity across all installations.
• Consequently, it is ideal for OEM skids, compressor controls, and pump stations.

Installation & Maintenance

• Factory-terminated – ready for plug-and-play installation.
• Quantum I/O connector locks securely for vibration-resistant operation.
• Meanwhile, the flexible black jacket permits tight-radius bends in crowded cabinets.
• No stripping or soldering required; simply plug and route.
• For maintenance, inspect connectors for corrosion or bent pins periodically.

Selection Guide – Oiltech Controls Review

• New installations: Choose 140XTS01203 for quick, repeatable connections between Quantum racks and terminal strips.
• Retrofit projects: This cable replaces aged ribbon cables with a robust, terminated assembly.
• When to use: Ideal when panel space is limited and a 0.9 m reach is sufficient.
• Alternative: For longer distances, consider 140XTS01206 (1.8 m) or extension kits.
• Above all, each cable is factory-tested for continuity and insulation resistance.

Package, Warranty & Shipping

• Package: 1× 140XTS01203 cable (PCE unit).
• Dimensions: 6 × 30 × 32.5 cm · Weight: 753 g (26.6 oz).
• Warranty: 12 months against manufacturing defects.
• Shipping: FedEx, UPS, DHL – dispatched within 24–28 hours.
• Additionally, tracking number is provided for every order.

FAQ – Professional Guidance

• Q1: Does this cable work with 140CRA21210 remote racks?
  A: Yes. The Quantum I/O connector is fully compatible with all Quantum remote drops and discrete modules that use the standard 50-pin interface.
• Q2: What is the maximum current rating for this cable?
  A: Each pin supports up to 1 A continuous. For high-power outputs, we advise distributing the load across multiple pins to avoid overheating.
• Q3: Can I extend this cable if I need a longer run?
  A: Direct extension is not recommended as it may affect signal quality. Instead, choose the 1.8 m variant (140XTS01206) or use a D-SUB extension adapter with proper shielding.
• Q4: How do I confirm correct pinout before connecting?
  A: Refer to the Quantum I/O wiring diagram. We also provide a pin-to-pin continuity sheet upon request – contact our support team.
• Q5: Is this cable suitable for marine or offshore environments?
  A: While it is not specifically marine-certified, the cable construction meets industrial standards. For offshore use, we recommend additional conduit protection.

Why Buy From Oiltech Controls?

• With 15+ years in industrial spares, we deliver expertise you can trust.
• Global shipping with live tracking via DHL, FedEx, or UPS.
• Every cable is electrically tested – surplus and refurbished options fully verified.
• 12-month warranty backed by technical verification before dispatch.
• We specialize in obsolete and legacy control system support.
