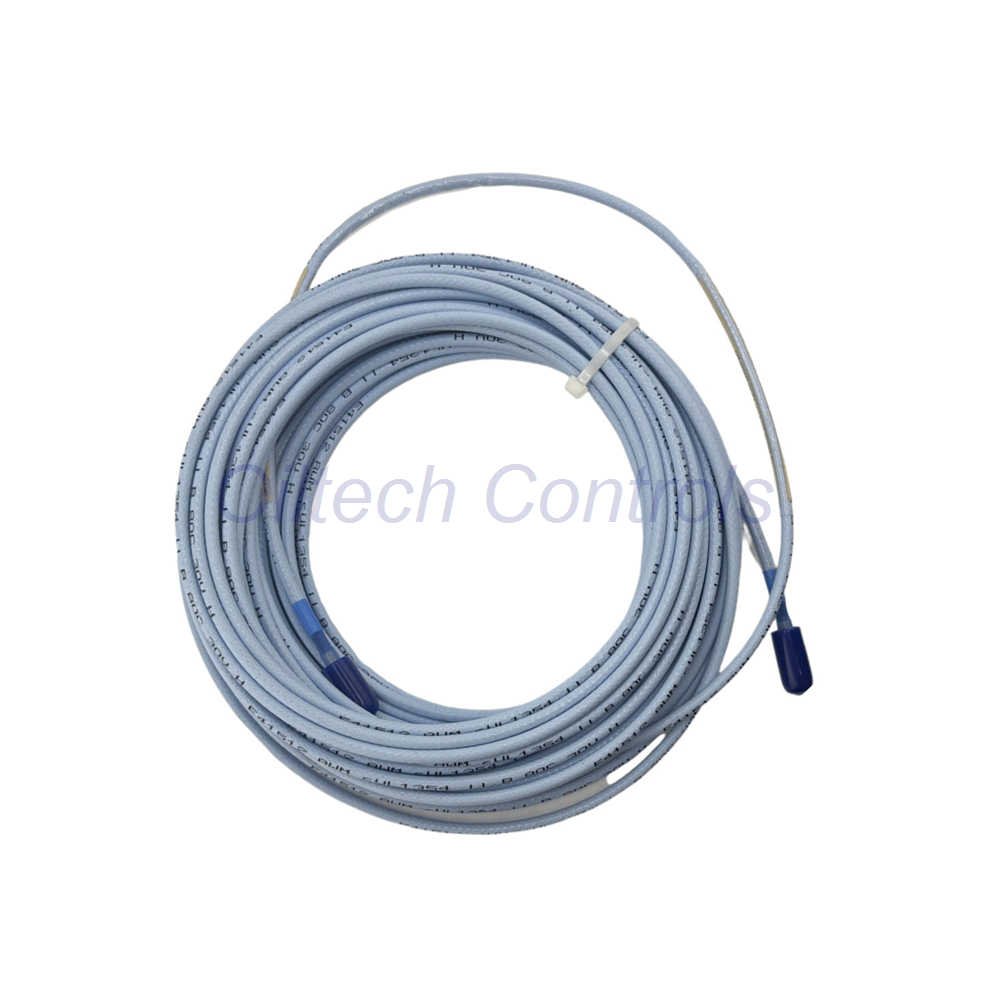

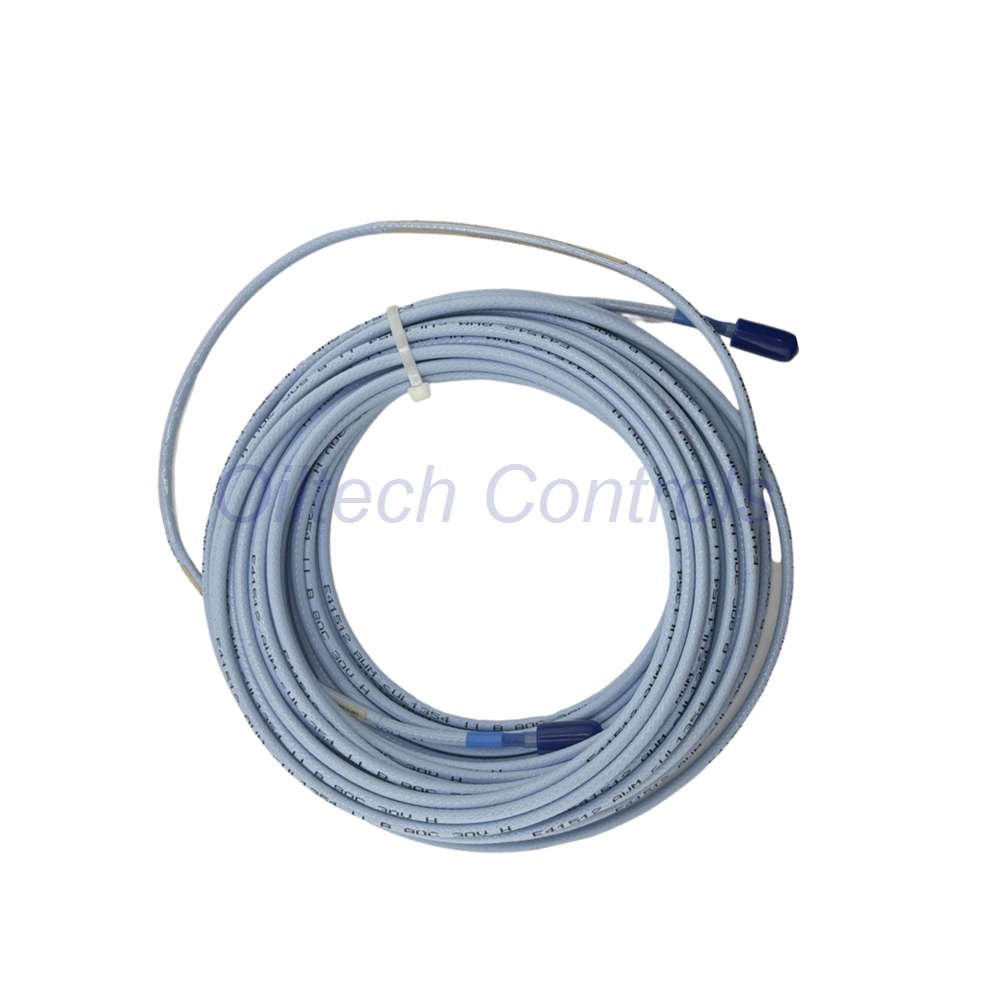

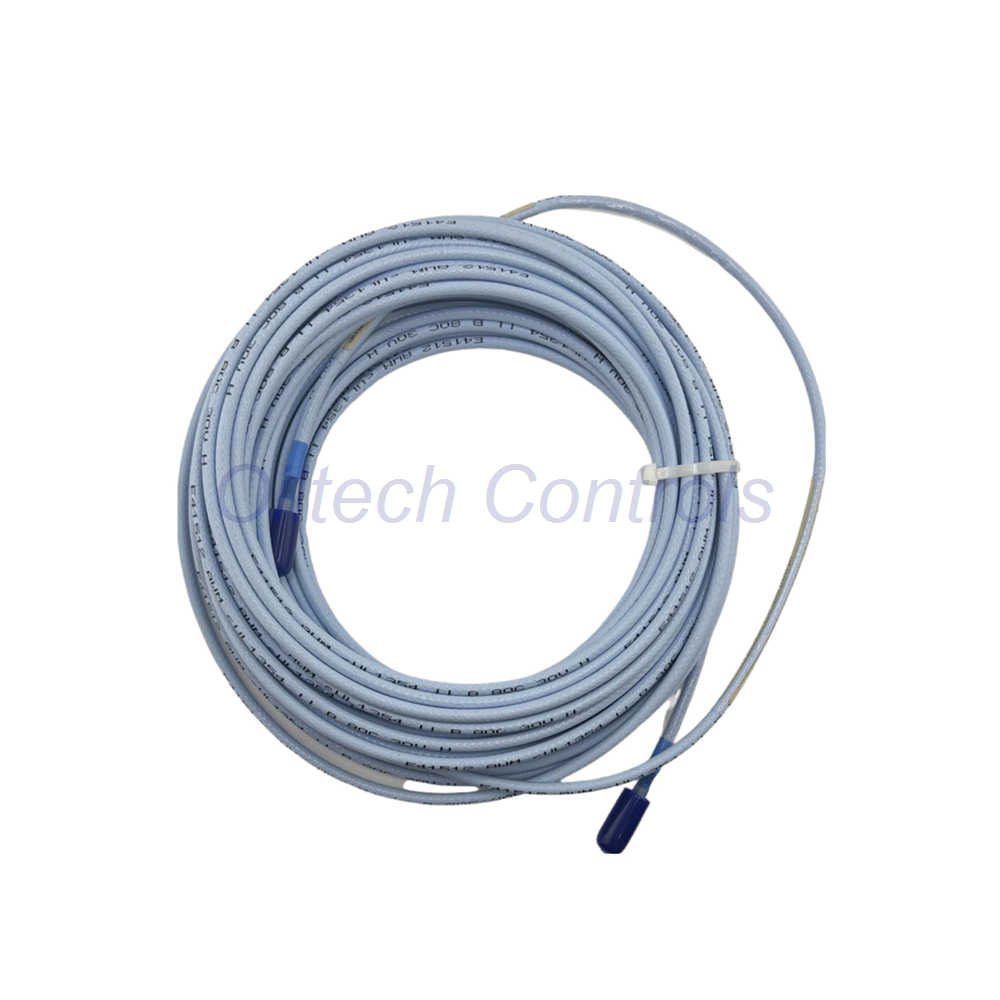

142238-120-00-05 Bently Nevada 3300 XL 12m Extension Cable
The 142238-120-00-05 serves as a critical transmission link within the Bently Nevada 3300 XL proximity transducer system. This high-precision extension cable maintains signal integrity across a 12-meter span, connecting specialized 2-meter probes to the 14-meter internal Proximitor modules. Engineers specify the 142238-120-00-05 to ensure accurate displacement and vibration measurements in high-stakes rotating machinery environments.
Configuration Breakdown & Hardware Hierarchy
- Base Model: 142238
- Product Category: 3300 XL Proximity Extension Cable
- Manufacturer: Bently Nevada (USA)
- Total Length Option: -120
- Measurement: 12.0 Meters (39.4 feet)
- System Compatibility: Designed for 14-meter total system length
- Connector & Cable Option: -00
- Type: Standard unarmored cable
- Connector: Miniature coaxial gold-plated interface
- Agency Approval Option: -05
- Certification: Multiple Approvals (ATEX, IECEx, CSA)
- Application: Suitable for hazardous area classifications
Logistics and Fulfillment
- Direct shipping via premium couriers: FedEx, UPS, and DHL.
- Secure anti-static packaging ensures the 142238-120-00-05 arrives ready for immediate field installation.
- Real-time tracking provided for all international exports to maintain project timelines.
Expert Technical FAQ
- Can I use this 12-meter cable with a standard 1-meter probe?
- No, the 142238-120-00-05 is electrically tuned for a 2-meter probe to meet the 14-meter system calibration.
- What is the primary difference between the -00 and -01 cable options?
- The -00 suffix indicates a standard cable, whereas the -01 option usually includes stainless steel fluid-tight armor.
- How do I identify signal degradation during routine maintenance?
- Technicians should check for physical kinks and use a dedicated proximity calibrator to verify voltage output linearity.
- Is the “Multiple Approvals” option necessary for non-hazardous indoor plants?
- While not strictly required for safety, the -05 version simplifies spare parts inventory for companies with diverse site requirements.
- What is the selection guide for choosing between 12-meter and 7-meter cables?
- Selection depends entirely on the Proximitor module model; the 170133-140-XX requires this 12-meter cable for total loop accuracy.
