Introducing the Vibro-Meter CA202 Industrial Accelerometer
The CA202 144-202-000-206 piezoelectric accelerometer from Meggitt’s vibro-meter® line delivers reliable vibration monitoring. This robust sensor excels in harsh and hazardous industrial environments with its high sensitivity and durable construction. Oiltech Controls recommends this unit for critical measurement applications where performance matters most.
Primary Applications
- Continuous vibration monitoring on turbines, pumps, compressors, and fans.
- Condition-based maintenance programs in demanding industrial plants.
- Measurement in hazardous locations with potentially explosive atmospheres.
- Environments with exposure to steam, water, sea-salt, or corrosive agents.
Product Description
- The CA202 accelerometer uses a symmetrical shear-mode piezoelectric measuring element.
- Its design ensures internal case insulation and a differential charge output signal.

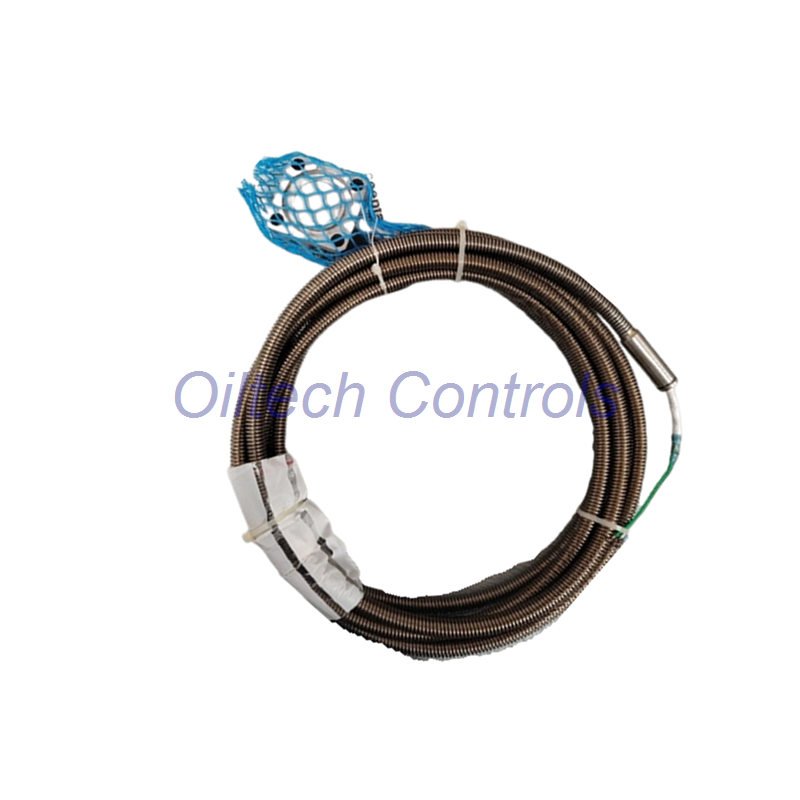

- The sensor comes with an integral low-noise cable for reliable signal integrity.
- A flexible, heat-resistant stainless-steel hose protects the cable along its entire length.
- This assembly is hermetically welded to create a permanently leaktight and robust sensor.
Technical Specifications
- Brand & Model: Vibro-Meter by Meggitt, CA202 Piezoelectric Accelerometer.
- Sensitivity: 100 pC/g ±5% at 120 Hz.
- Measurement Range: 0.01 to 400 g peak (0.01-20g: ±1% linearity, 20-400g: ±2%).
- Frequency Response: 0.5 to 6000 Hz (±5%), resonant frequency >22 kHz.
- Temperature Range: -55°C to +260°C continuous operation for the sensor.
- Overload Capacity: Withstands shocks up to 1000 g peak (1 ms half-sine).
- Case Material: Hermetically welded austenitic stainless steel (1.4441).
- Output: 2-pin insulated charge output, requires a charge converter (e.g., IPC70x).
- Weight: Approximately 250 grams (0.55 lb) for the sensor.
Mounting Guide
- Mount the sensor using four M6 x 35 mm Allen screws.
- Always use the four supplied M4 spring-lock washers.
- Apply a uniform tightening torque of 15 N·m (11.1 lb-ft) to all four screws.
- Ensure the mounting surface is clean, flat, and free of paint or debris.
- For detailed mechanical drawings, please contact our technical team.
Packaging Details
- One CA202 piezoelectric accelerometer unit (PNR: 144-202-000-206).
- Integral 3-meter cable with flying leads, protected by a stainless-steel hose.
- Four M6 x 35 mm Allen mounting screws.
- Four M4 spring-lock washers.
Shipping & Delivery
- We ship globally via reliable carriers: FedEx, UPS, and DHL.
- Shipping costs and transit times are calculated at checkout based on your location.
- Orders are typically processed and dispatched within 1-2 business days.
Frequently Asked Questions (FAQ)
- What signal conditioner is needed for the CA202?
The CA202 has a charge output and requires a charge converter like the Meggitt IPC70x series for signal conditioning.
- Can this sensor be used in outdoor or wet environments?
Yes, its hermetically welded stainless-steel case and hose make it impervious to water, steam, and humidity.
- What is the difference between the standard and Ex versions?
The Ex versions carry additional certifications for safe use in legally defined hazardous areas with explosive atmospheres.
- What is the typical lifespan of this accelerometer?
With its robust construction, the sensor offers a long service life when used within its specified environmental and mechanical limits.
