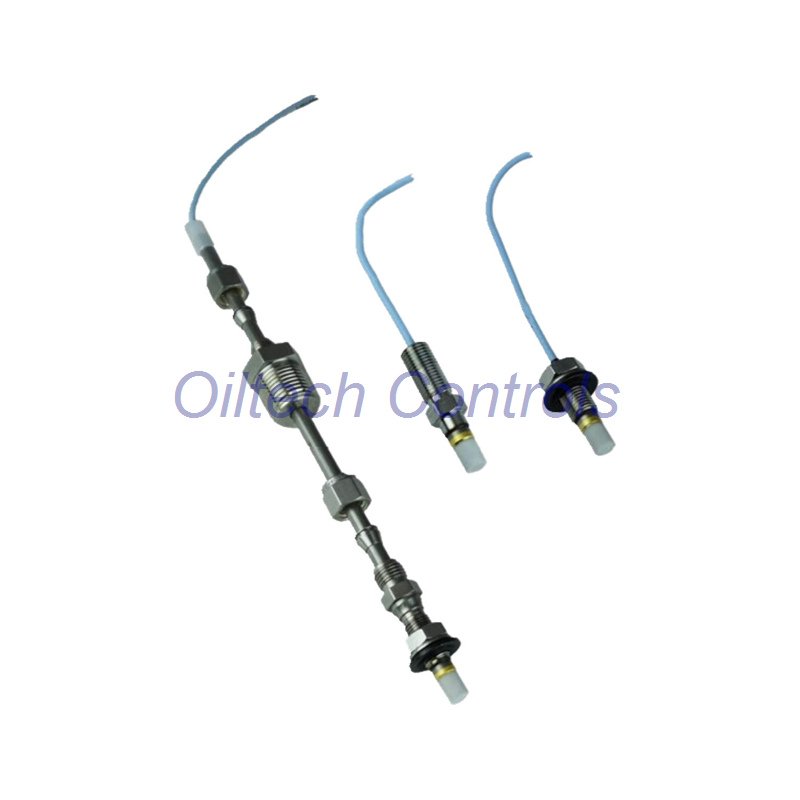

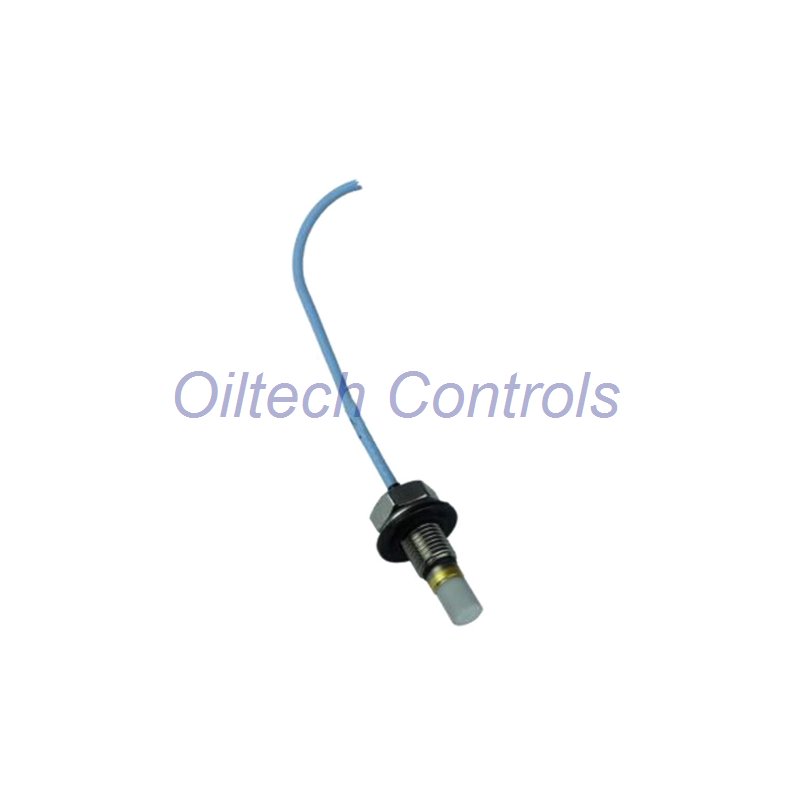

Bently Nevada 146054-08-50-01-05 Product Snapshot
- Part Number: 146054-08-50-01-05
- Series: 3300 Ceramic Capped Proximity Probes
- Brand: Bently Nevada
- Status: Brand new, sealed packing
- Warranty: 12 months factory warranty
Why This Probe Works Better
- Stable signal over long distance.
- Ceramic tip reduces wear.
- Safe for hazardous zones.
- Strong resistance to oil and heat.
- Fast plug-in ClickLoc design.
Ordering Code Explained
- 146054-AA-BB-CC-DD
- 146054: 3300 ceramic capped probe, no armor
- -08: 0.8 inch case length
- -50: 5.0 meter total cable length
- -01: Miniature coaxial ClickLoc connector
- -05: CSA, ATEX, IECEx approvals
Electrical Characteristics
- System Type: 3300 5 mm proximity system
- Nominal Voltage: -24 Vdc
- Output Range: -4 to -16 Vdc
- Linear Range: 1.52 mm (60 mils)
- Scale Factor: 7.87 V/mm
- Resistance: 8.73 ±0.70 ohms
- Accuracy: ±6.5%
Mechanical & Build Data
- Thread: 3/8-24 UNF
- Max Thread Engagement: 0.563 inch
- Probe Tip: Alumina ceramic (Al₂O₃)
- Housing: AISI 304 stainless steel
- Pressure Rating: 34 bar (500 psi)
Cable & Environment
- Cable Type: 75 Ω coaxial, FEP insulated
- Cable Length: 5.0 meters
- Matching Rule: Use with 5 m Proximitor only
- Operating Temp: -51°C to +177°C
- Storage Temp: -51°C to +177°C
Shipping Options
- FedEx international express
- UPS worldwide delivery
- DHL priority shipping
Professional FAQ
- Can this probe work with shorter Proximitors?
- No. Cable length must match the Proximitor.
- Why choose ceramic capped probes?
- They last longer in harsh conditions.
- Is this model safe for explosive areas?
- Yes. It has CSA, ATEX, and IECEx approvals.
- Does longer cable reduce accuracy?
- No, when matched correctly.
- What should buyers check before ordering?
- Confirm cable length and mounting space.
