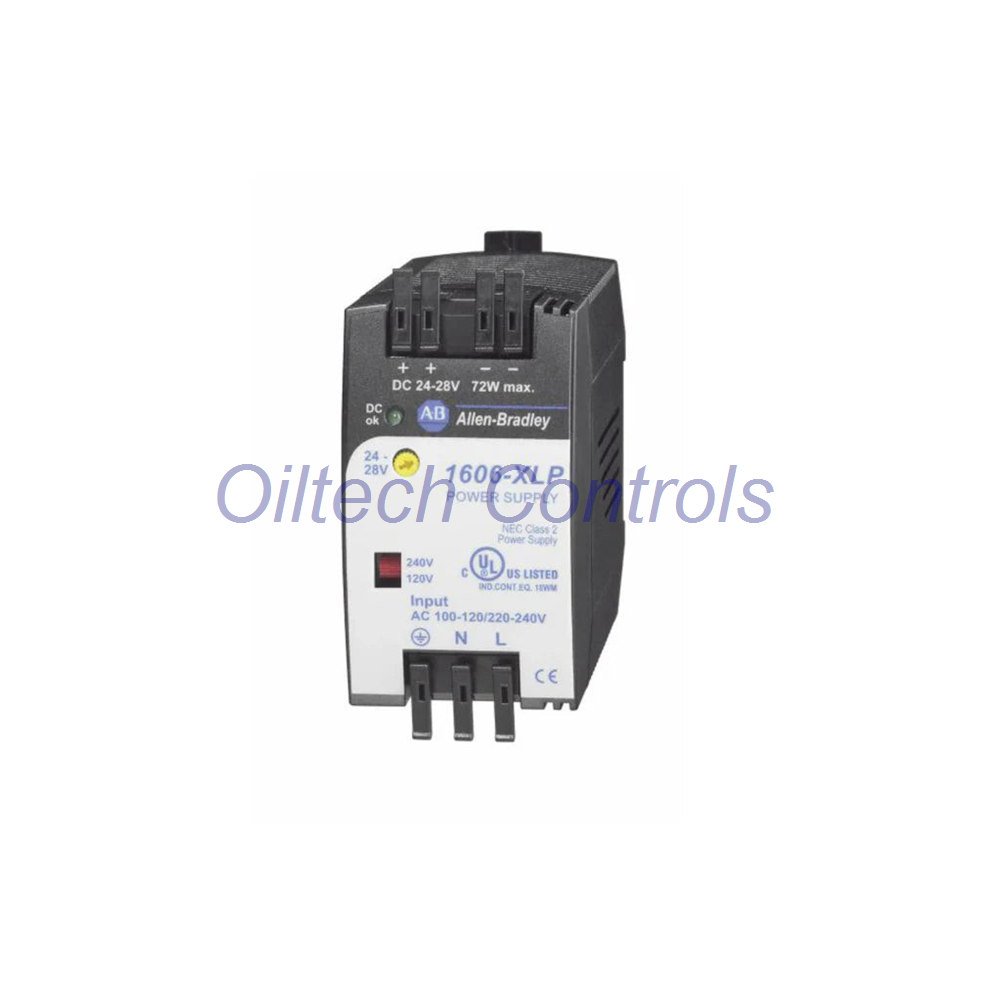

1606-XLP50E Allen-Bradley 50W Supply 24VDC 1606-XLP50E

1606-XLP50E: Allen-Bradley Compact 50 W, 24 V DC, 2.1 A Supply

The 1606-XLP50E is an Allen-Bradley Bulletin 1606-XL compact switched-mode power supply. It delivers 24 V DC at 2.1 A (at 24.5 V), 50 W. Input is single-phase wide range, 85-264 V AC, plus 85 V DC. The 45 mm wide body saves rail space. Spring clamp terminals cut wiring time. There is no power boost on this frame, so size loads with care. Efficiency is 89 % typical. Hold-up reaches over 171 ms at 230 V AC. No bus interface exists here. The 1606-XLP50E ships tested, in 24-28 h, with a 12-month warranty.

Frame and Fit

• Mounting: DIN rail or wall mount
• Output: 24 V DC nominal, trim 24-28 V DC
• Current: 2.1 A at 24.5 V (50 W)
• Connection: spring clamp terminals
• Protection: no power boost. Plan steady loads only.
• Approvals: UL 60950-1, cUL, CE marked

Interface Note

• Ports: none. This frame has no DC OK contact.
• Protocols: none. No bus or status signal.
• Workaround: add an external voltage monitor relay if you need alarms.

Electrical Values

• Input: 100-240 V AC nominal (85-264 V AC operating); 85 V DC
• Output: 24 V DC nominal, adjustable 24-28 V DC
• Current: 2.1 A at 24.5 V. Power: 50 W
• Efficiency: 89 % typical
• Hold-up time: over 171 ms typical at 230 V AC
• Ripple and noise: 50 mV max

Environment and Dimensions

• Operating temperature: -10 °C lower bound published
• Storage temperature: -40 °C lower bound published
• Humidity: 5-95 % RH, non-condensing
• Protection rating: IP20
• Size (H×W×D): 75 × 45 × 91 mm
• Weight: 0.24 kg

Lifecycle

• Status: Active on the official Rockwell product page
• Last verified: 2026-10
• Request label photos and test data before you buy.

Where It Fits

• Small panels with tight 45 mm rail space
• Sensor and I/O islands that draw steady light loads
• Remote junction boxes with AC or DC feed
• Legacy Bulletin 1606-XL panels under retrofit
• Machines that need long hold-up at 230 V AC

Oiltech Controls Review

• Size: 45 mm width and 0.24 kg weight ease dense layouts.
• Wiring: spring clamps hold well under vibration.
• Hold-up: 171 ms at 230 V AC covers short input dips.
• Limits: no boost and no DC OK contact. Add external monitoring.
• Thermal: 89 % efficiency is fine for small enclosures.

Oiltech Controls Insight

• Size loads at 2.1 A steady. Inrush motors need a bigger frame.
• Hold-up drops fast at 120 V AC. Check your dip profile at low line.
• Trim up to 26-28 V DC on long cable runs to offset drop.
• Use ferrule tips on stranded wire for clean spring clamp entry.
• Keep spare units above -40 °C to protect capacitors.

Warranty and Dispatch

• 12-month warranty on function defects.
• Dispatch in 24-28 hours after technical verification.
• Shipping by FedEx, UPS, or DHL with tracking.

Why Buy From Oiltech Controls

• More than 15 years in automation spare parts
• Global express shipping support
• Tested surplus and refurbished units
• 12-month warranty on every order
• Technical check before each dispatch
• Support for obsolete control systems

FAQ

• Q: Can I run a 2.1 A load and a solenoid on this supply?
• A: No. There is no power boost. Add up steady and inrush current. Choose a larger frame if the total exceeds 2.1 A.
• Q: How do I get a DC OK signal without the built-in contact?
• A: Fit an external voltage monitor relay on the 24 V rail. Wire its contact to a PLC input. Set the trip point below your logic minimum.
• Q: Is hold-up time enough for short power dips?
• A: 171 ms applies at 230 V AC. Hold-up falls at 120 V AC. Measure your dip length at the actual line voltage.
• Q: What wire works best in the spring clamps?
• A: Use stranded wire with ferrules. Keep strip length short and square. Tug-test each wire after insertion.
• Q: What should I check on arrival?
• A: Label and serial, clamp grip, no-load 24 V DC output. Then load-test near 2.1 A for ten minutes.
