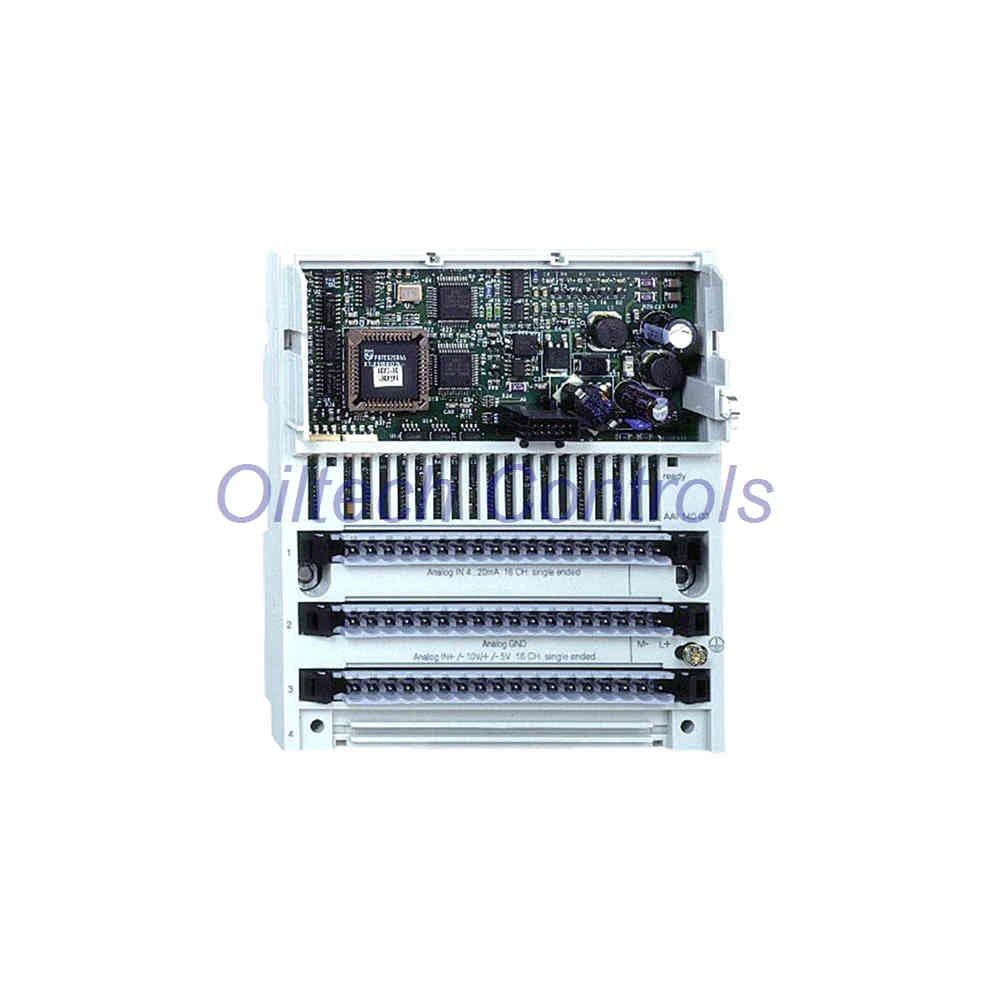

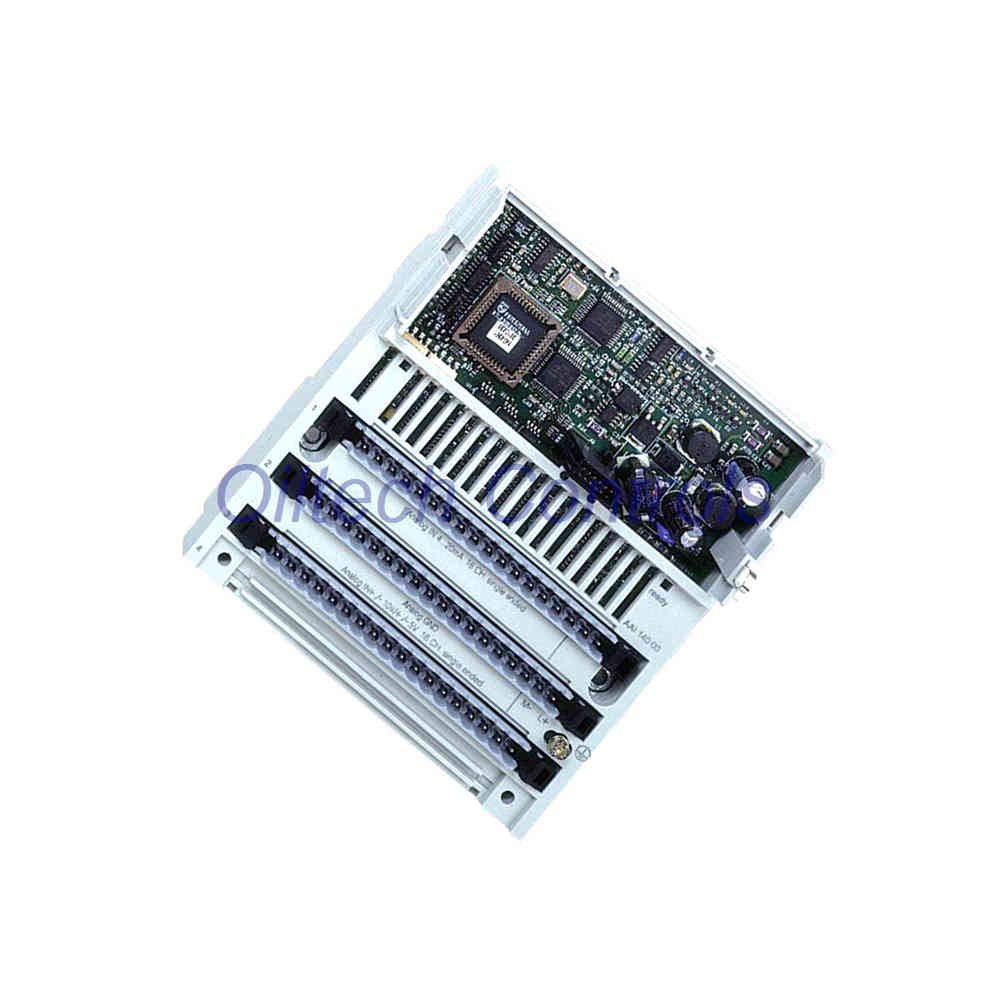

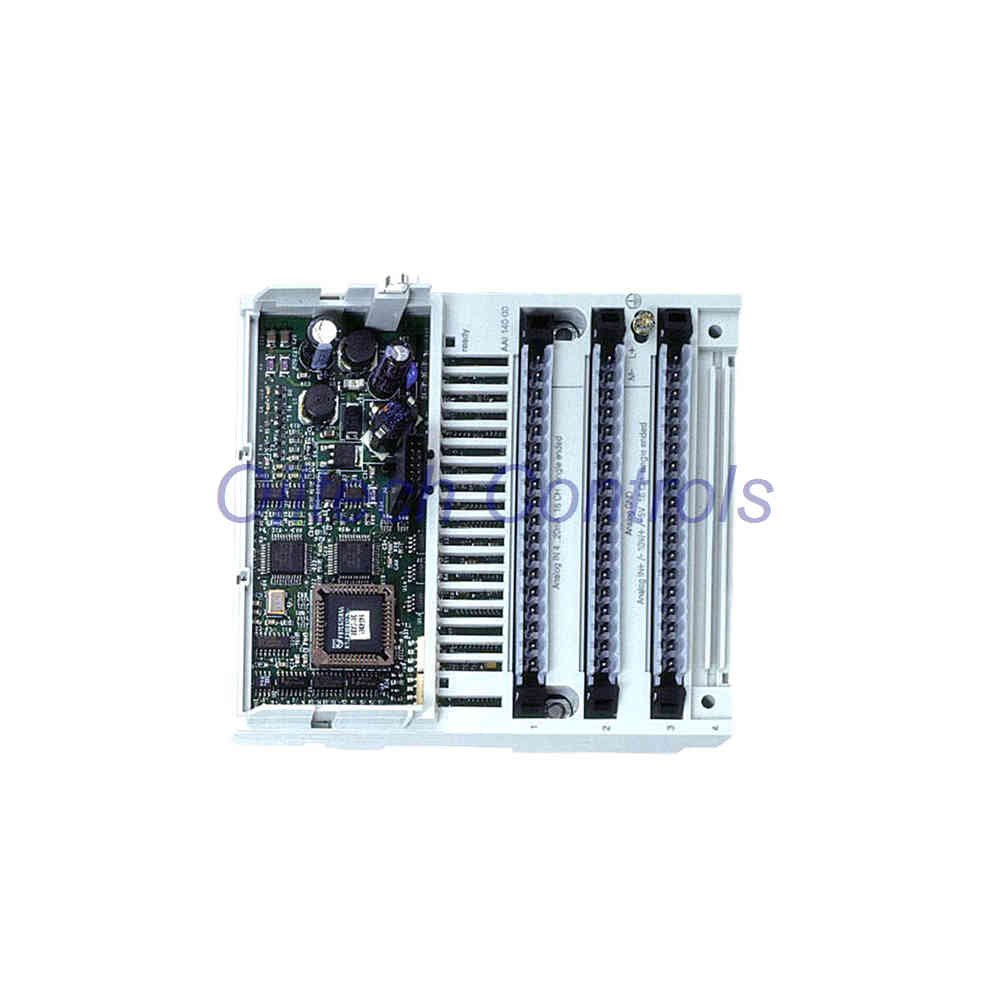

170AAI03000 | Schneider Electric Modicon Momentum Analog Input Base
The 170AAI03000 serves as a high-performance analog input module within the Schneider Electric Modicon Momentum automation platform. Engineering teams utilize this base to convert external sensor signals into precise 16-bit signed integer values for PLC processing. It provides eight differential input channels, ensuring reliable data acquisition in complex electrical environments where signal noise might interfere with accuracy. For urgent technical inquiries, contact Oiltech Controls at info@oiltechcontrols.com or via WhatsApp: +86 158 8020 0923.
Core Technical Specifications
- Manufacturer: Schneider Electric
- Model Number: 170AAI03000
- Product Line: Modicon Momentum
- Input Channels: 8 Differential Channels
- Data Resolution: Full 16-Bit Signed Integer
- Conversion Time: 12 Milliseconds per cycle
- Channel Isolation: 200V DC between channels for 60 seconds
- Bus Isolation: 500V AC between channels and internal bus
- Ground Isolation: 500V AC between channels and earth ground
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Reverse Polarity: Internal protection against incorrect wiring
Shipping and Logistics Information
- Packaging Unit: Single PCE (Piece) contained in professional industrial-grade protective boxing.
- Package Weight: Approximately 400 grams (14.1 ounces) for efficient international air freight handling.
- Courier Options: Global delivery available via FedEx, UPS, and DHL.
- Package Dimensions: 26.0cm length by 18.0cm width ensures the unit remains safe during transit.
- Origin: Manufactured in Indonesia (ID) following strict Schneider Electric global quality control standards.
Frequently Asked Questions (FAQ)
- How do I select the right base for my sensors?
- Match your sensor output type (voltage/current) to the differential input capabilities of the 170AAI03000 module.
- Does this module support single-ended wiring?
- The 170AAI03000 utilizes differential inputs to provide better noise rejection than standard single-ended configurations.
- What is the typical lifespan in high-heat environments?
- Operating near the 60°C limit is safe, but maintaining lower temperatures significantly extends the electronic component life.
- Where can I get technical support for configuration?
- Reach out via WhatsApp: +86 158 8020 0923 for expert assistance from the Oiltech Controls team.
