Product Introduction

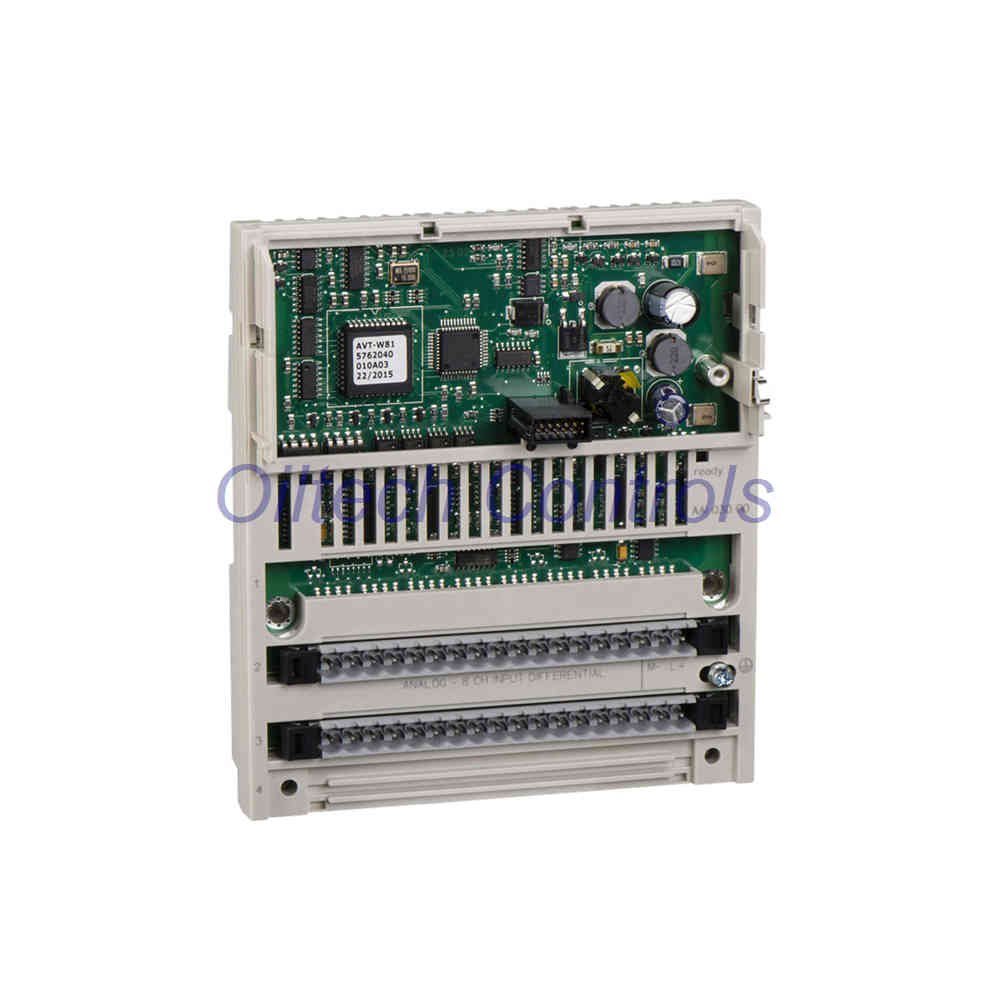

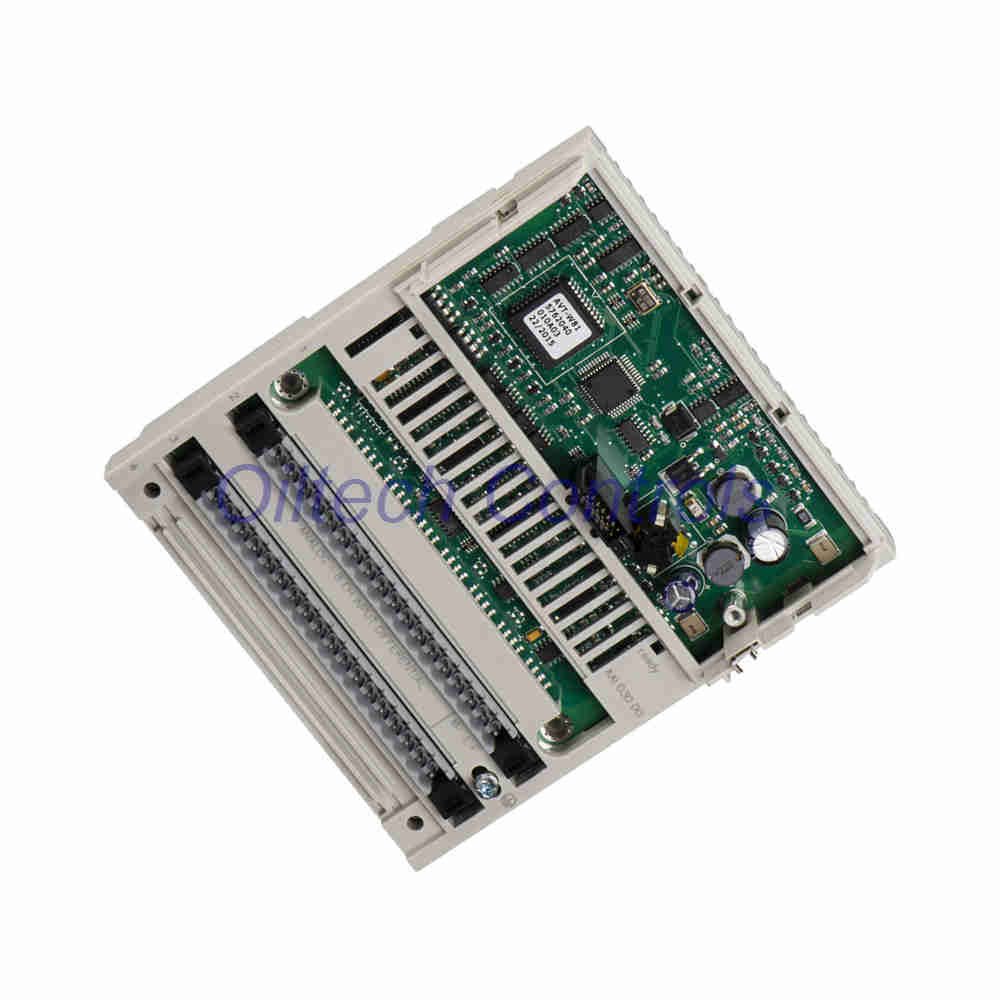

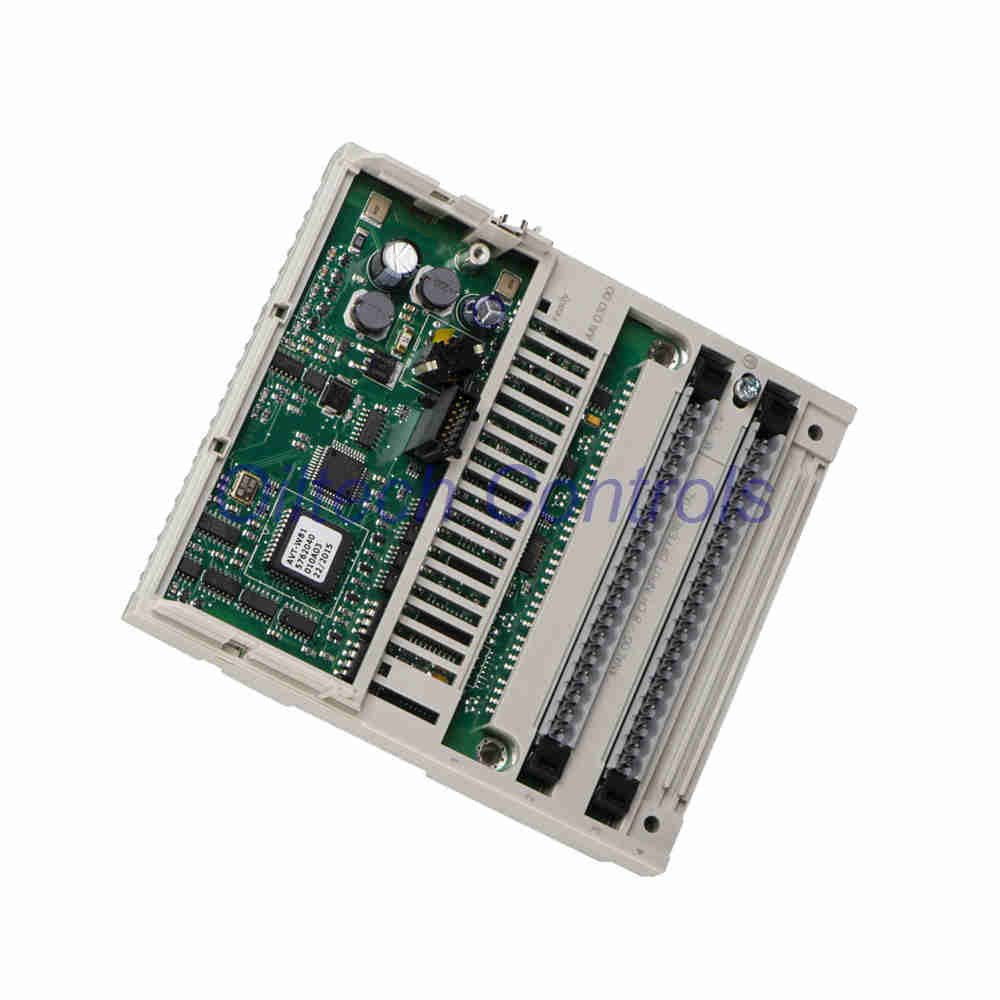

170AAI52040 is a 4-channel analog input base from Schneider Electric.
It belongs to the Modicon Momentum automation platform.
The module collects analog signals from sensors and field devices.
Differential input design improves signal accuracy and reduces noise.
It is widely used in industrial control systems.
Main Functional Features
- Four differential analog input channels.
- High resolution full 16-bit signed data format.
- Stable signal acquisition in industrial environments.
- Internal reverse polarity protection.
- Designed for Modicon Momentum automation systems.
- Reliable operation with strong electrical isolation.
Technical Specifications
- Manufacturer: Schneider Electric
- Model: 170AAI52040
- Product Type: Analog Input Base
- Series: Modicon Momentum
- Input Channels: 4
- Input Type: Differential
- Data Format: Full 16-bit signed
- Update Time: 500 ms
- Isolation Between Channels: 400V DC for 1 minute
- Isolation Channel to Ground: 500V AC for 1 minute
- Isolation Channel to Bus: 500V for 1 minute
- Operating Temperature: 0°C to 60°C
- Storage Temperature: −40°C to 85°C
- Humidity Limit: 95% non-condensing
- Protection: Internal reverse polarity protection
- Weight: 0.215 kg
- Dimensions: 125 × 141.5 × 47.5 mm
- Certification: CE
Electrical Safety Design
- Channel isolation protects connected devices.
- Strong insulation between channel and bus.
- Stable performance in noisy environments.
- Internal protection reduces wiring risk.
- Suitable for continuous industrial operation.
Compatible Automation Systems
- Modicon Momentum PLC controllers.
- Distributed industrial control systems.
- Factory automation production lines.
- Process monitoring equipment.
- Systems integrated with Modicon Quantum PLC architecture.
Expert Review
- The module is widely used in signal measurement tasks.
- Differential inputs help reduce electrical noise.
- Isolation design improves system safety.
- 16-bit resolution allows accurate sensor data.
- Engineers often use it in process monitoring systems.
Shipping and Warranty
- Product condition: New original factory unit.
- Warranty period: 12 months.
- Fast global shipping available.
- Courier options: FedEx, UPS, DHL.
- Secure export packaging.
FAQ
- What type of sensors work with this module?
- It can receive signals from industrial sensors such as transmitters, pressure sensors, and temperature devices.
- Why choose differential input modules?
- Differential inputs reduce electrical noise and improve signal accuracy.
- Is this module suitable for continuous industrial operation?
- Yes. The isolation design allows stable operation in factory environments.
- What should be checked before installation?
- Verify wiring polarity, input signal type, and system compatibility.
- How do I select the correct analog module?
- Check the number of channels, signal type, and resolution needed in your control system.
