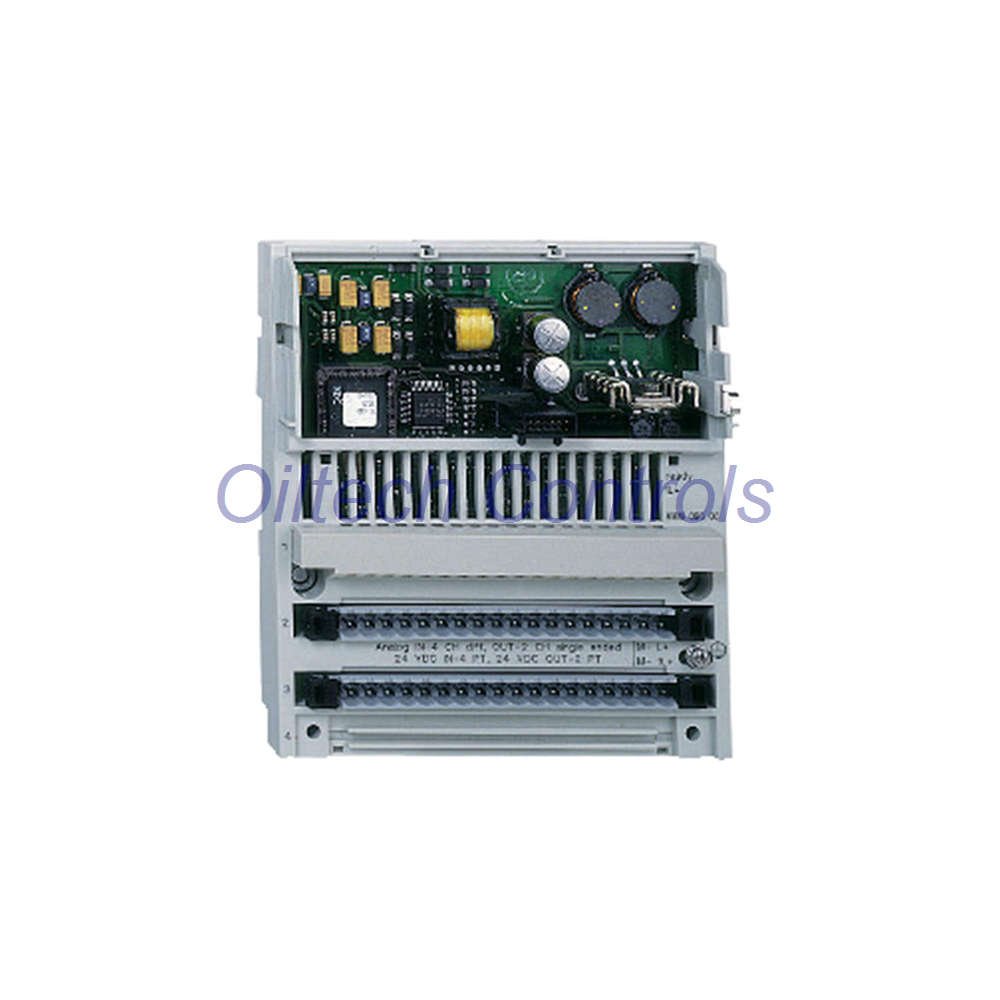

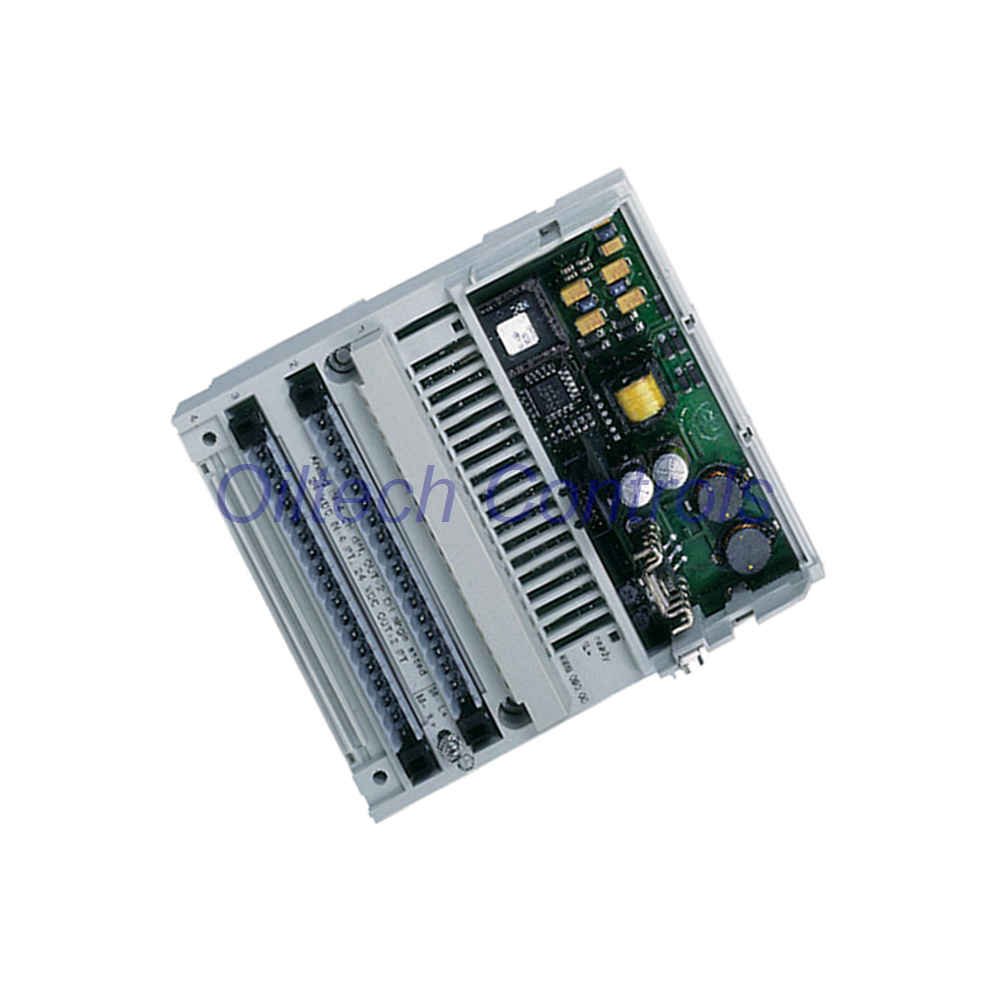

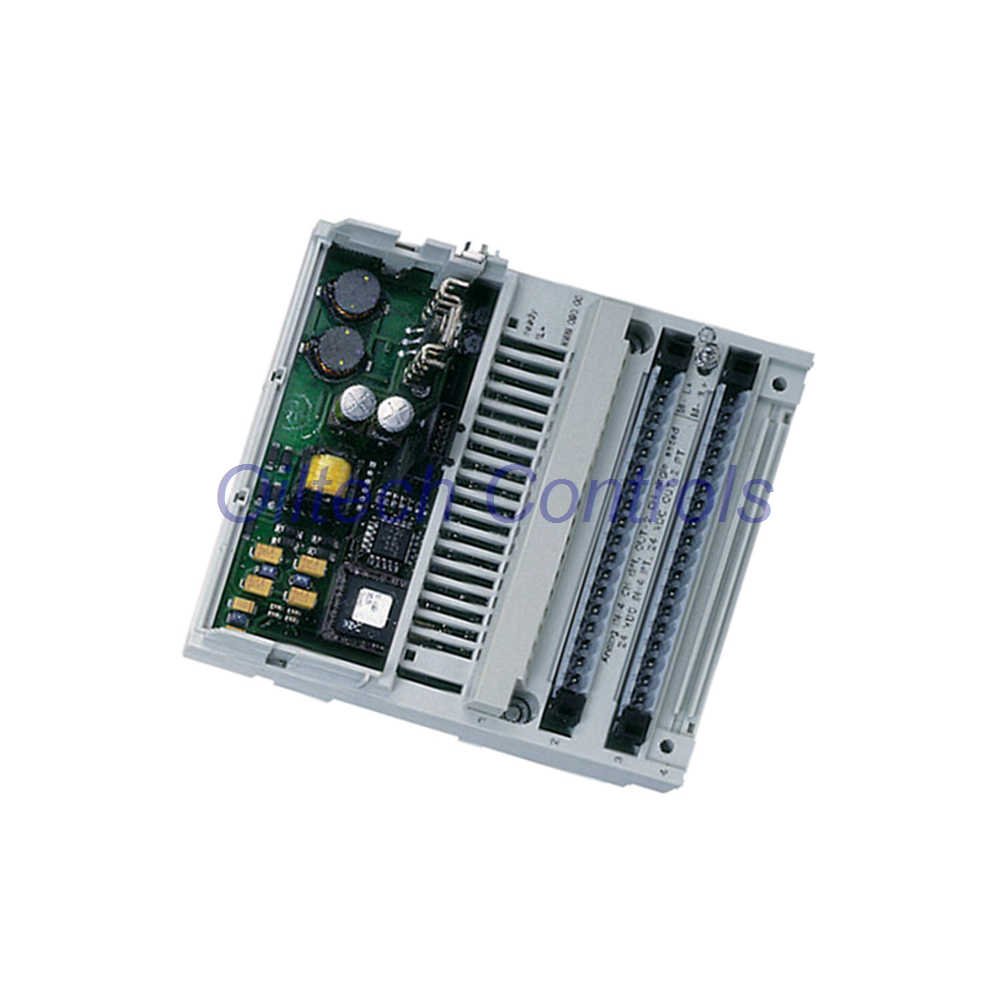

Schneider Electric 170AMM09000 Modicon Momentum I/O Base Unit
The 170AMM09000 functions as a high-performance hybrid I/O base within the Schneider Electric Modicon Momentum automation platform. This hardware integrates both analog precision and discrete signal handling into a single compact footprint for efficient control. Engineering teams utilize the 170AMM09000 to bridge complex field measurements with standard logic processing in diverse industrial environments.
Core Technical Specifications
- Brand: Schneider Electric
- Model: 170AMM09000
- Product Line: Modicon Momentum
- Input Configuration: 4 Analog Differential Inputs and 4 Discrete Inputs
- Output Configuration: 2 Analog Outputs and 2 Discrete Outputs
- Supply Voltage: 24 Volts DC (Operating range 200 to 350 mA)
- Power Dissipation: 6 Watts maximum during full operational load
- Analog Input Range: ±10V, ±5V, 1-5V, ±20mA, and 4-20mA
- Analog Output Range: ±10V at 12-bit and 0-20mA at 12-bit resolution
- Discrete Logic: Positive logic with 24V DC rated input voltage
- Conversion Speed: 10ms for analog inputs and 1ms for analog outputs
- Resolution: Up to 14-bit for voltage and 13-bit for current signals
- Operating Temperature: 0 to 60°C (32 to 140°F) in non-condensing zones
- Weight: 1.00 lbs (0.45 kg) for the base unit
Installation and Logistics
- Mount the unit directly onto a standard DIN rail or a flat panel surface.
- Connect the 24V DC power supply to the designated terminals before activating the system.
- Ensure the environment stays within the 0 to 60°C range to prevent thermal component stress.
- Packaging List: One Schneider Electric 170AMM09000 module and factory-sealed protective packaging.
- Shipping Methods: We offer worldwide express delivery via FedEx, UPS, and DHL.
- For technical inquiries, contact info@oiltechcontrols.com or reach us via WhatsApp at +86 158 8020 0923.
Frequently Asked Questions & Selection Guide
- What primary advantage does the 170AMM09000 offer over standard digital-only bases?
- The hybrid design combines analog precision and discrete control, reducing the total hardware footprint.
- How do I select the correct input range for my specific sensor?
- Verify your sensor output signal and configure the module via the Modicon software interface.
- Does the unit require a separate communication adapter?
- Yes, you must pair this base with a Momentum communication adapter like Modbus or Interbus.
- What happens if a discrete output experiences a short circuit?
- The internal protection circuit trips to prevent hardware damage and signals a fault status.
- Selection Tip: Check your total current draw to ensure your 24V DC power supply is sufficient.
- Selection Tip: Use shielded twisted pair cables for analog signals to minimize electromagnetic interference.
