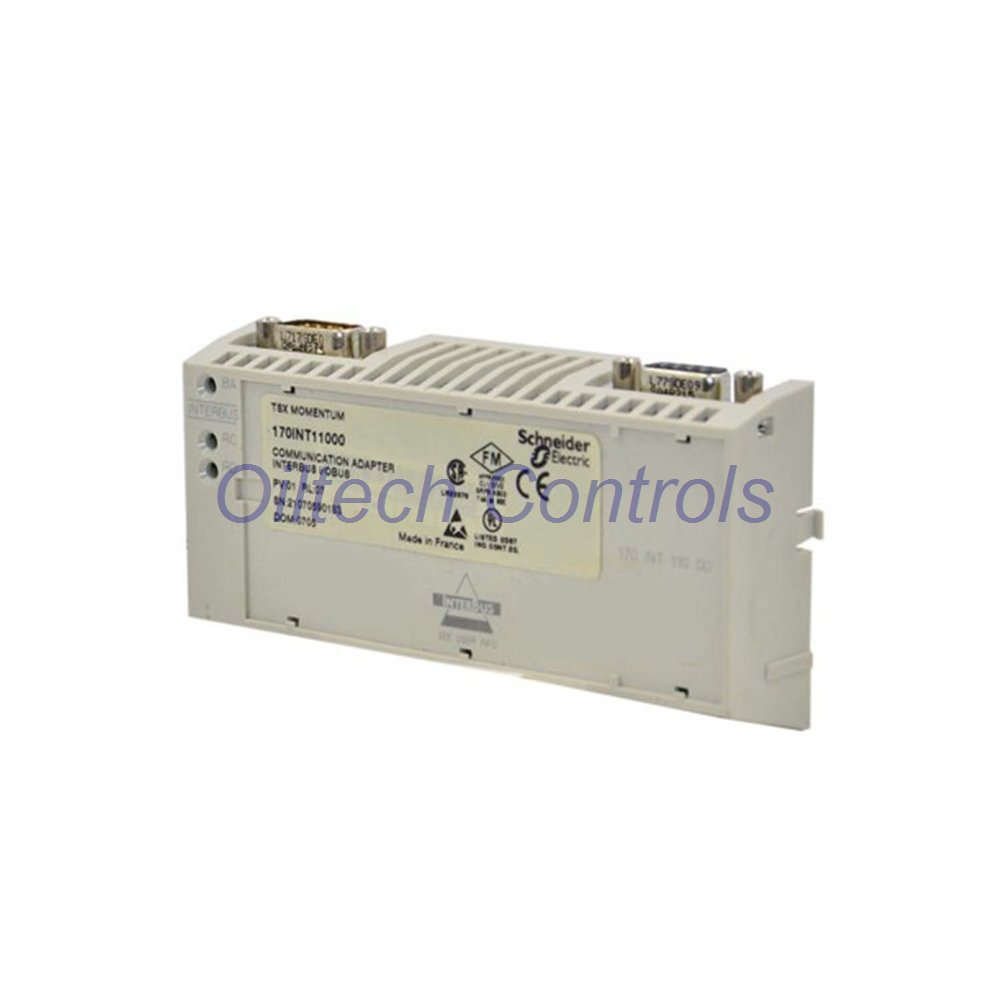

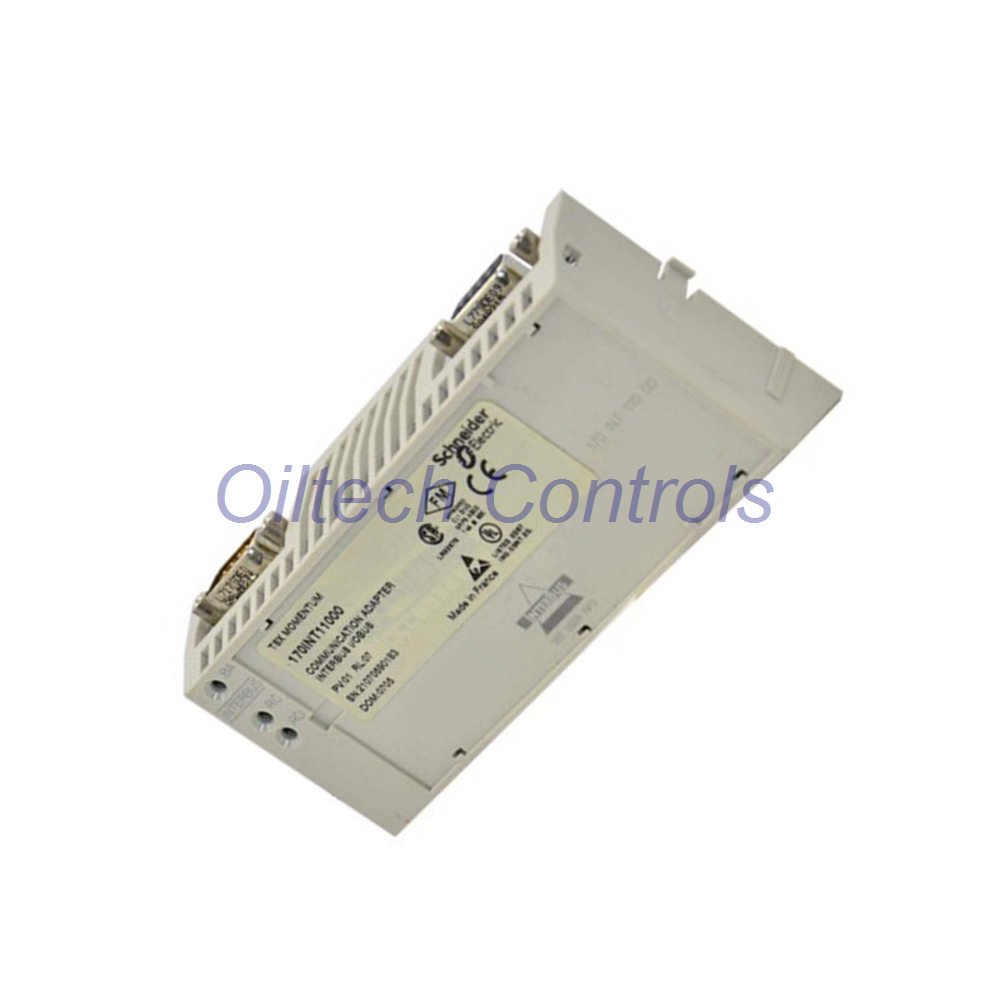

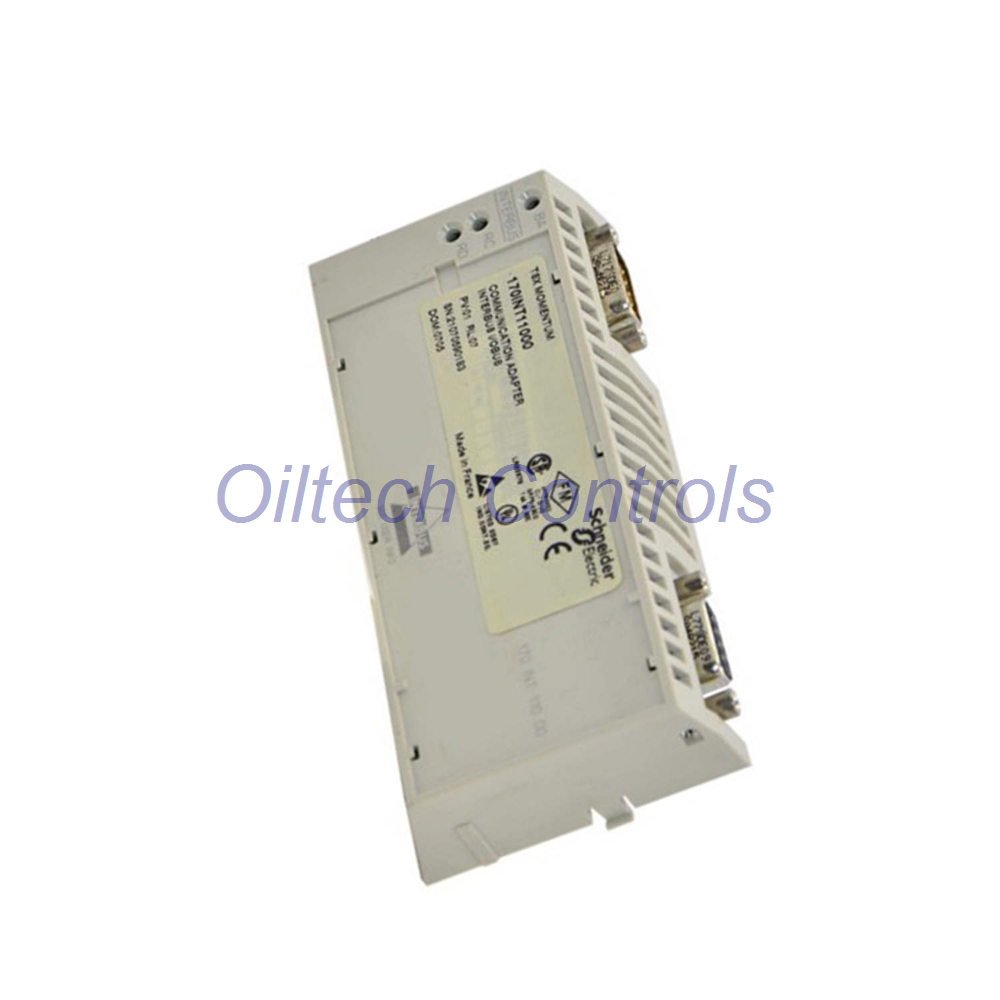

170INT11000 Schneider Electric Modicon Momentum Interbus Adapter

170INT11000 Schneider Electric Modicon Momentum Interbus Adapter

The 170INT11000 serves as a high-performance communication adapter for the Schneider Electric Modicon Momentum automation platform. This module uses the Interbus Generation SUPI II protocol to ensure rapid data exchange across industrial networks. It supports a stable transmission rate of 500 kbit/s over twisted pair cabling for reliable fieldbus performance. Engineering teams integrate this device to bridge local I/O bases with centralized control systems using a ring topology. For technical support, contact Oiltech Controls at info@oiltechcontrols.com or via WhatsApp at +86 158 8020 0923.

Technical Specifications and Environmental Limits

• Brand: Schneider Electric
• Model: 170INT11000
• Product Line: Modicon Momentum
• Protocol: Interbus Generation SUPI II
• Transmission Rate: 500 kbit/s
• Control Parameter: CRC-16 error checking
• Operating Temperature: 0 to 60°C (32 to 140°F) in non-condensing environments
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Power Consumption: Less than 400 mA at 5 V DC supply voltage
• Power Dissipation: 0.8 Watts maximum during standard operation
• Protection Rating: IP20 degree of protection against solid objects
• Physical Connectors: Two 9-pin D-Sub Interbus ports for input and output
• Net Weight: 0.15 lb (0.07 kg) for the module

Installation and Mechanical Integration

• The compact design fits seamlessly onto Modicon Momentum I/O bases for quick mechanical and electrical assembly.
• Standard 9-pin D-Sub connectors simplify the wiring process when building the required Interbus ring network topology.
• The IP20 rated housing requires installation inside an enclosure to protect the circuitry from dust and moisture.
• The fail-safe state ensures that the system enters a secure mode during a loss of communication.
• Engineers must verify cable shielding to maintain the 500 kbit/s rate in high-interference industrial environments.

Shipping and Logistics Information

• Package includes one factory-sealed Schneider Electric 170INT11000 communication adapter module.
• Global logistics partners include Fedex, UPS, and DHL for rapid delivery.
• The shipping weight totals approximately 6.63 oz (188 g) with the original protective manufacturer packaging.
• Package dimensions measure 10.2 inches in length and 7 inches in width for secure handling during transit.

Frequently Asked Questions

• What happens if the communication link fails?
  The adapter triggers a fail-safe state to prevent erratic machine behavior and ensure operator safety.
• Can I use fiber-optic cables with this specific model?
  This model uses twisted pair cables, but you can add an external fiber-optic adapter for longer distances.
• How do I select the right adapter for my Momentum I/O?
  Verify your processor protocol as this unit only supports Interbus SUPI II and not Modbus.
• Does the unit require an external power supply?
  The adapter draws its required 5 V DC power directly from the Momentum I/O base backplane.
• Who provides technical support for this module?
  Please contact Oiltech Controls at info@oiltechcontrols.com for expert troubleshooting and configuration advice.
