Overview

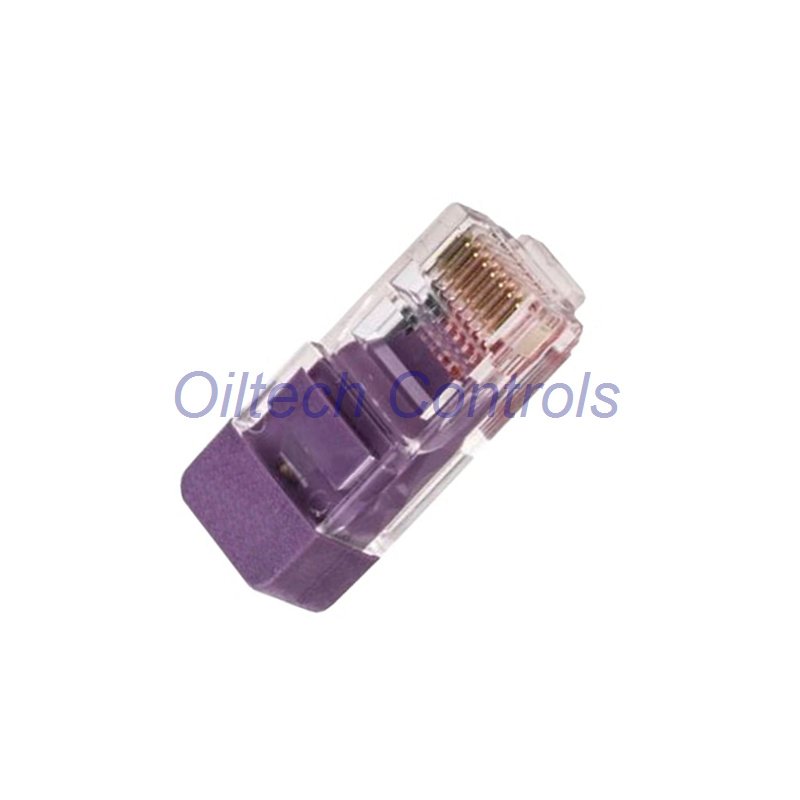

The Schneider Electric 170XTS02100 ensures stable ModBus Plus communication.
It reduces signal reflection and improves network reliability.
Main Selling Points
- Designed for ModBus Plus networks
- Improves signal quality and stability
- Simple DIN rail or panel mounting
- Compact size saves cabinet space
- Industrial-grade mechanical strength
Electrical and Network Details
- Rated Supply Voltage: 24 V DC
- Power Consumption: <1.5 W
- Connection Type: Dual RJ45 ports
- Supported Network: ModBus Plus
- Signal Termination: Fixed impedance design
Mechanical and Physical Data
- Dimensions: 100 × 100 × 40 mm
- Approximate Weight: 0.5 kg
- Mounting Options: DIN rail or panel
- Housing Material: Industrial-grade plastic
Environmental Performance
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity Tolerance: 5% to 95% non-condensing
- Protection Rating: IP20
Shock, Vibration, and Safety
- Shock Resistance: 50 g peak
- Vibration Resistance: 5 g RMS
- Certified to CE, UL, and CSA standards
- Designed for long-term industrial use
System Compatibility
- Modicon Momentum systems
- Modicon Premium controllers
- Modicon Quantum platforms
- Legacy Schneider ModBus Plus networks
Warranty and Shipping
- 12-month standard warranty
- 100% functional testing before shipment
- Worldwide delivery available
- Shipping via FedEx, UPS, or DHL
Professional FAQ
- Why is a line terminator required?
It prevents signal reflection and keeps data stable. - Where should this unit be installed?
Install it at the end of a ModBus Plus network. - Is this model suitable for upgrades?
Yes. It works well in both new and legacy systems. - How do I confirm compatibility?
Check that your system uses ModBus Plus protocol. - What warranty and support are included?
It includes a 12-month warranty and technical support.
