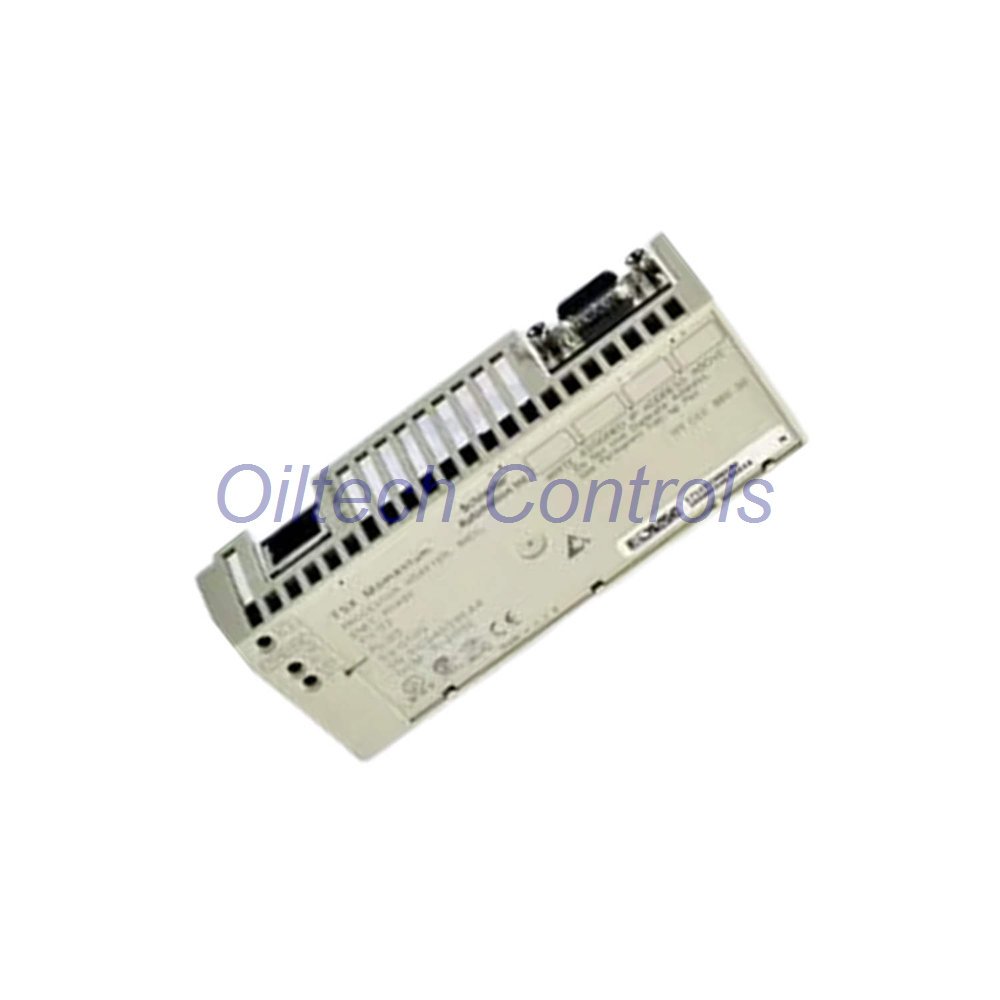

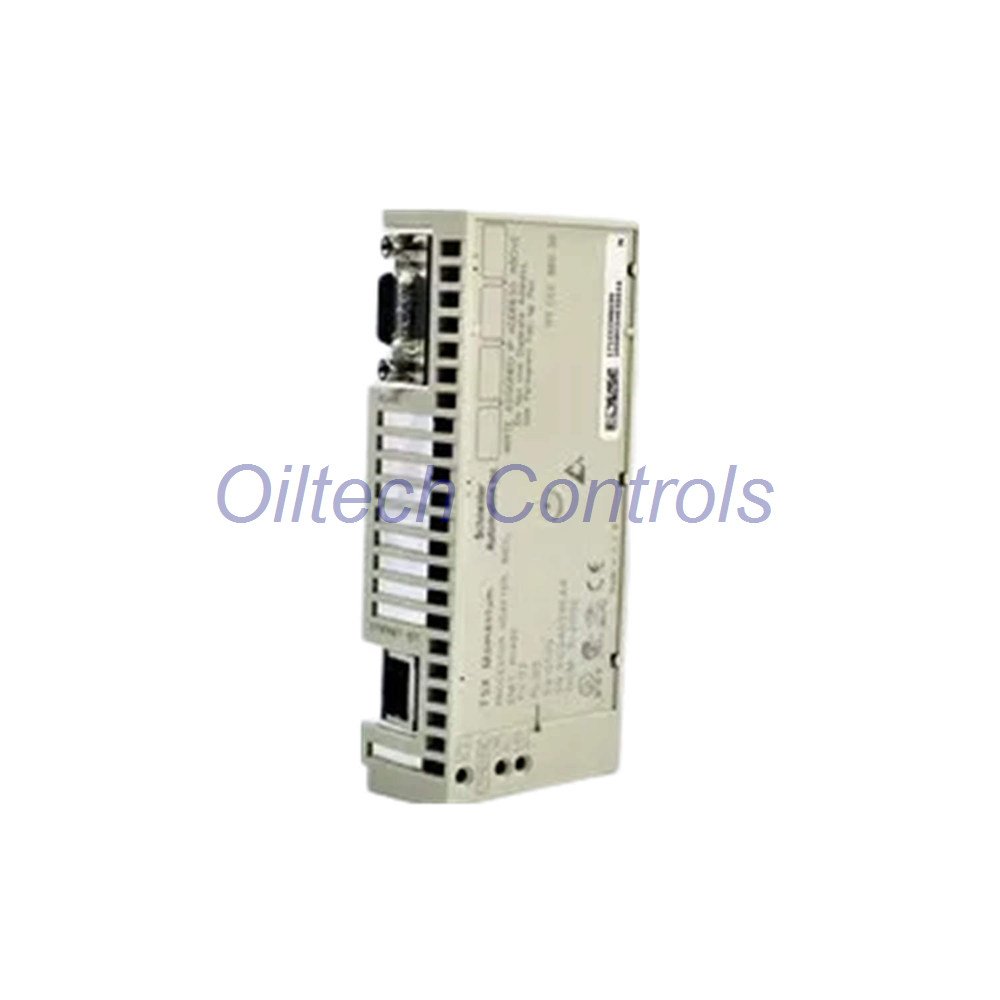

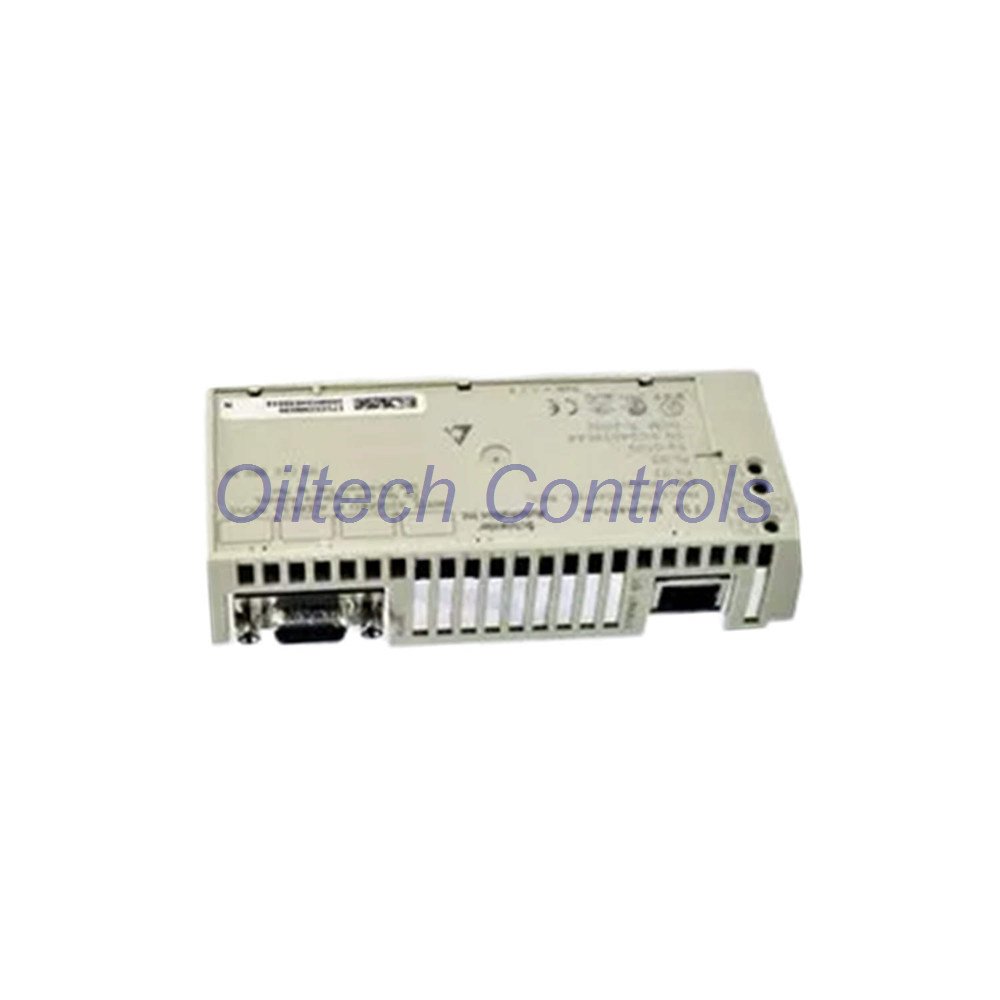

171CCC98030 Schneider Electric Modicon Momentum Processor Adapter Module
The 171CCC98030 processor adapter module from Schneider Electric is built for reliable PLC control systems.
It belongs to the Modicon Momentum automation platform and provides fast processing for industrial automation tasks.
This module supports Ethernet and Modbus communication, making it easy to connect machines, PLC networks, and monitoring systems.
Core Product Highlights
- Manufacturer: Schneider Electric
- Model: 171CCC98030
- Product type: M1/M1E processor adapter module
- Automation platform: Modicon Momentum
- Processor type: X86 based processor
- Clock speed: 50 MHz
- Word length: 16 bit
- Rated supply voltage: 5 V DC
- Protective coating: TC treatment
Communication Interfaces
- 1 Ethernet port
- 1 RS-485 communication port
- Supported protocols: Ethernet and Modbus
- Modbus TCP messaging support
- I/O scanning capability
- Web page loader and diagnostics tools
Memory Configuration
- Flash memory: 1 MB
- RAM memory: 544 KB
- Program memory: 18 KB LL984
- IEC program memory: 200 KB
- Data memory: 24 KB
Processing Capacity
- Register I/O processor capacity: 26,048 words
- Discrete I/O processor capacity: 8,192 inputs and outputs
- Instruction processing time: 1 ms per 1K instruction
- Typical scan time: 0.3 ms per kilobyte
- Local Modbus I/O support
Mechanical Details
- Material: Lexan industrial housing
- Net weight: 0.042 kg
- Compact industrial module design
- CE certified
- Designed for installation in Momentum I/O base
Operating Environment
- Operating temperature: 0°C to 60°C
- Storage temperature: −40°C to 85°C
- Relative humidity: 5% to 96% non-condensing
- Operating altitude: up to 2000 meters
- Shock resistance: 15 gn peak
- Vibration resistance: 1 gn
Compatible Automation Systems
- Schneider Electric Modicon Momentum PLC systems
- Distributed control networks
- Industrial Ethernet automation systems
- Remote I/O monitoring networks
- Works alongside PLC systems like Modicon Quantum
Typical Equipment Applications
- Factory automation lines
- Packaging machines
- Material handling systems
- Industrial production lines
- Energy monitoring systems
- Process control equipment
Expert Review
- This processor module offers stable communication.
- The Ethernet and RS-485 ports increase network flexibility.
- The 50 MHz processor provides fast response.
- Memory capacity supports medium control programs.
- It is a good solution for distributed PLC architectures.
Warranty and Shipping
- Condition: New and original
- Factory warranty: 12 months
- Careful quality inspection before shipment
- Secure export packaging
- Fast global delivery via FedEx, UPS, DHL
Professional FAQ
- How do I know if this processor adapter fits my PLC system?
- Check if your system uses the Modicon Momentum platform and supports M1 or M1E processor adapters.
- What is the advantage of having both Ethernet and RS-485 ports?
- It allows the controller to connect to modern Ethernet networks and traditional serial devices.
- Is this module suitable for distributed control systems?
- Yes. It works well in distributed I/O networks where controllers manage remote modules.
- How should the module be powered?
- It receives 5 V DC power from the Momentum I/O base, so no separate power supply is needed.
- What should be checked before installation?
- Verify firmware compatibility, PLC software version, and communication configuration.
