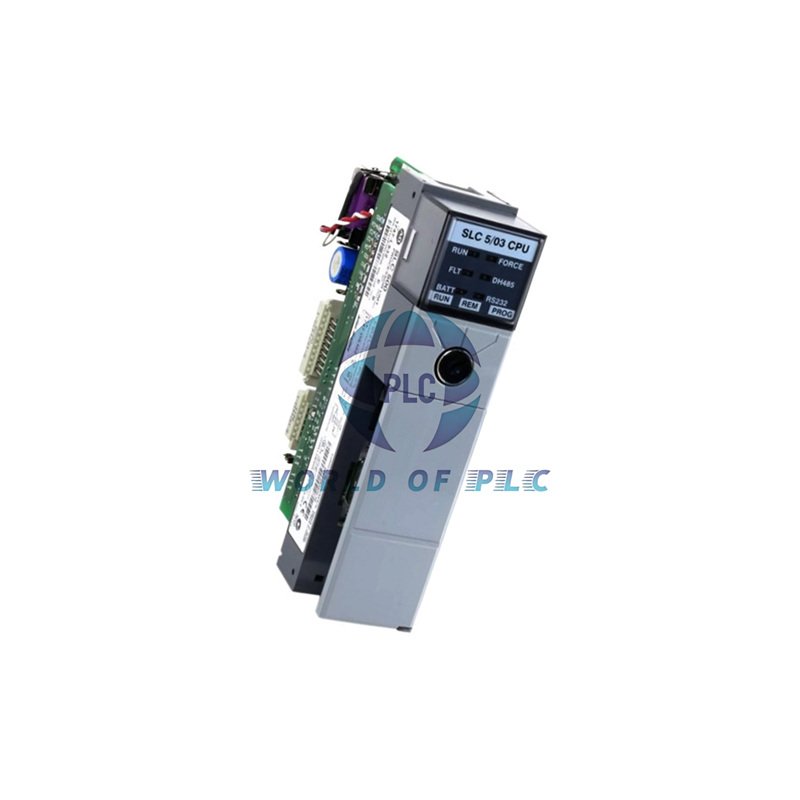

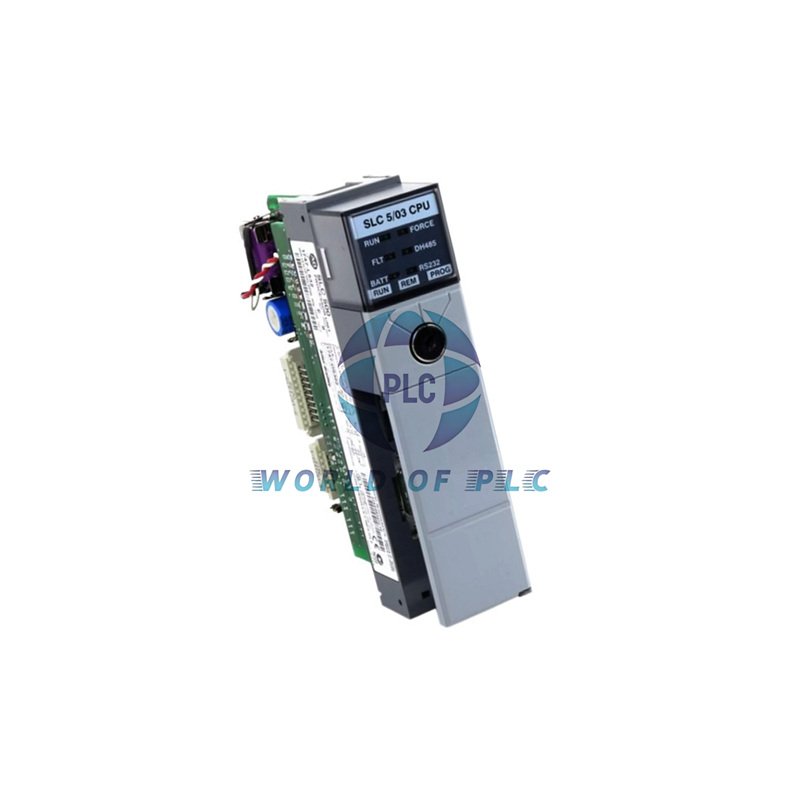

Allen-Bradley 1747-L532: SLC 5/03 Programmable Controller
The 1747-L532 from Allen-Bradley delivers powerful control for industrial automation applications. Rockwell Automation designed this compact processor with robust communication capabilities. This versatile controller handles material handling, HVAC control, and process automation with exceptional reliability.
Core Technical Specifications
- Brand & Model: Allen-Bradley 1747-L532
- Processor Type: SLC 5/03 Programmable Logic Controller
- User Memory: 16K words (12K program + 4K data)
- I/O Capacity: 4096 inputs & 4096 outputs
- Analog I/O: 480 points maximum
- Scan Time: 0.225ms I/O scan, 1ms/K program scan
- Instruction Execution: 0.44ms bit instruction speed
- Backplane Current: 500mA @ 5V DC, 175mA @ 24V DC
- Communication Ports: RS-232 & DH-485 built-in
Performance & Environmental Specifications
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Shock Resistance: 30G operational rating
- Memory Backup: Battery-backed RAM (1747-BA lithium battery)
- Chassis Support: Up to 2 local I/O chassis, 30 module slots
- Data Rates: Up to 19.2 Kbaud communication speed
- Protocol Support: DF1 Full-duplex, DH-485 peer-to-peer
- Programming: Online programming capability
- Math Capabilities: Floating-point math and advanced trigonometry
Installation & Compatibility
- Installs in SLC 500 modular chassis systems
- Supports remote I/O scanner module configuration
- Works with DeviceNet scanner modules for network I/O
- Features built-in real-time clock and calendar functions
- Includes key-switch for operation mode control
- For communication needs, consider the 1747-C20
- For programming connections, explore the 1747-CP3
Shipping & Package Contents
- Genuine Allen-Bradley 1747-L532 controller module
- Product documentation and specification sheet
- Secure protective packaging
- Shipped via FedEx, UPS, or DHL express services
- 12-month performance warranty coverage
