1756-OV32E Allen-Bradley | ControlLogix DC Output Module

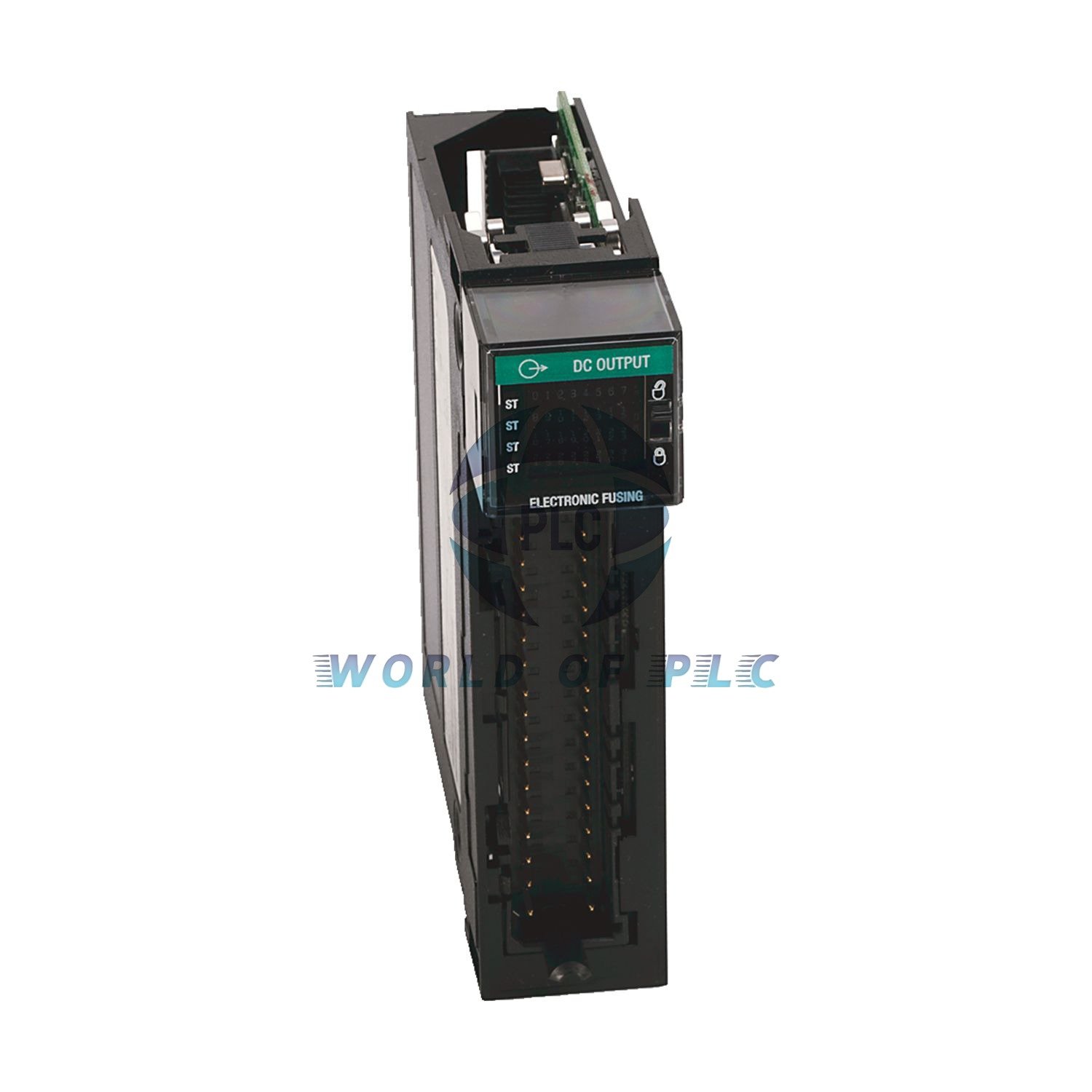

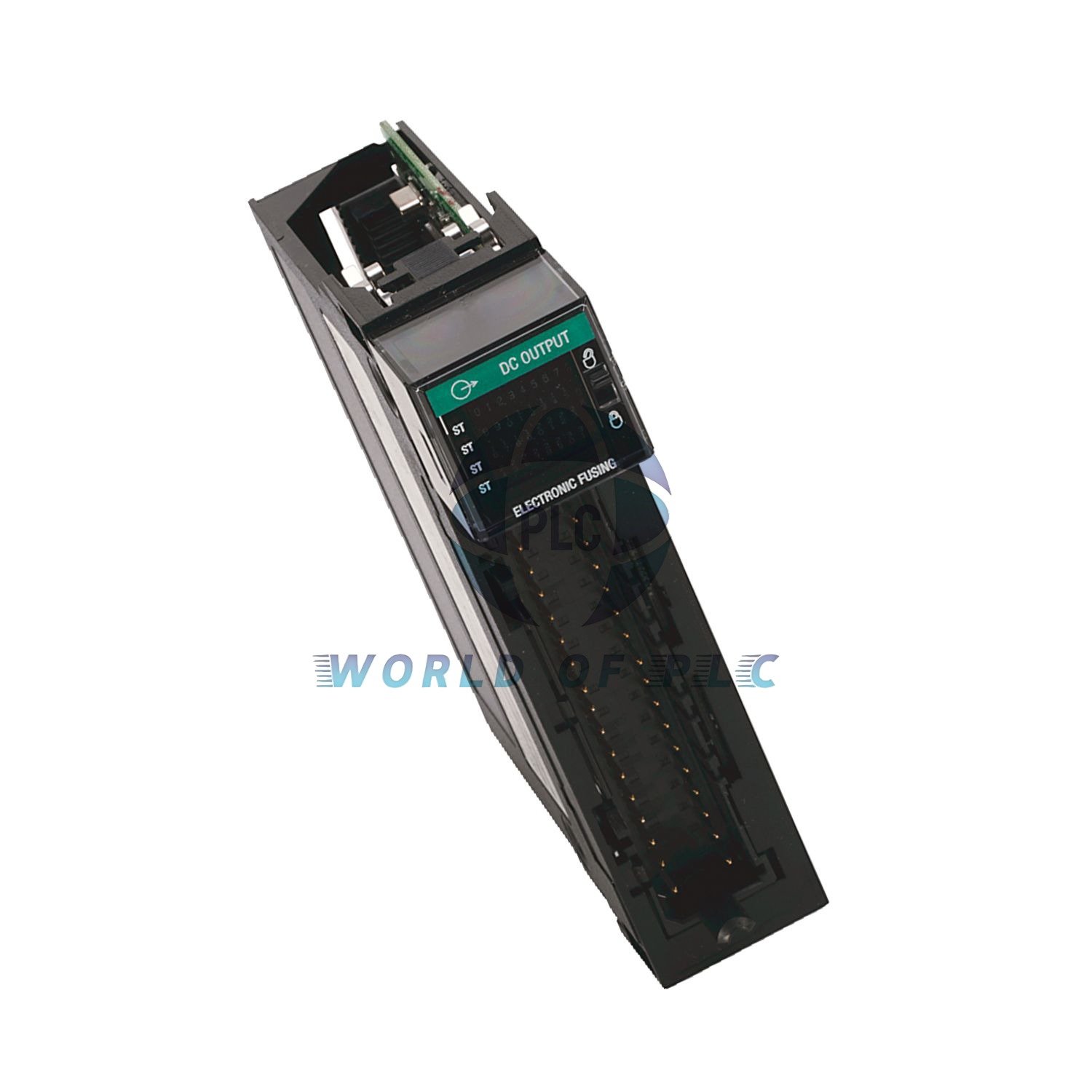

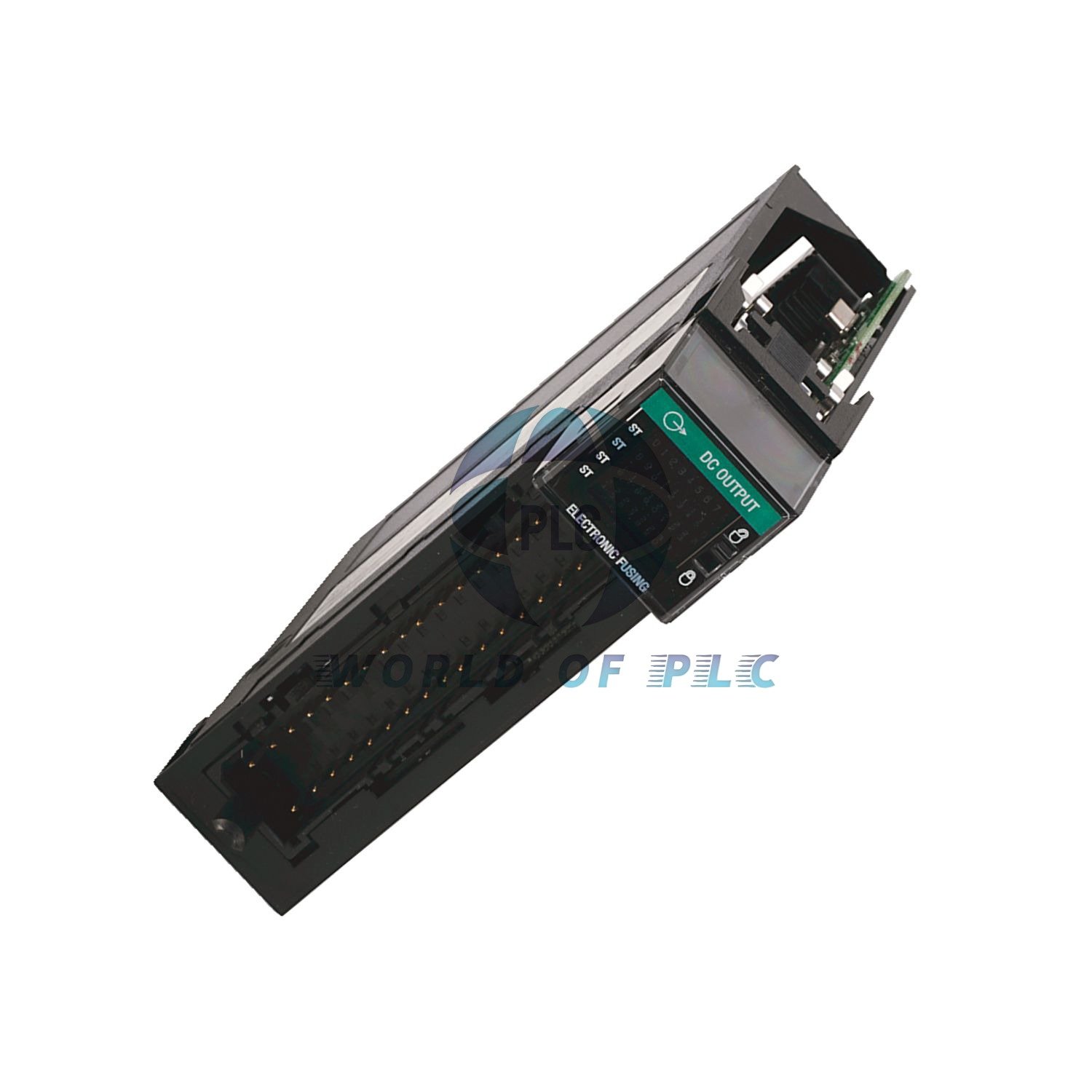

Allen-Bradley 1756-OV32E – 32-Channel Fused DC Output Module

Key Benefits

• 32 protected outputs with electronic fusing
• Works with 10-30V DC systems
• Ultra-fast 300μs response time
• High-density single-slot design
• Built-in overcurrent protection

Technical Specifications

• Output Type: DC sinking with fusing
• Voltage Range: 10-30V DC (12-24V nominal)
• Current per Point: 0.5A @50°C, 0.35A @60°C
• Total Current: 16A @50°C, 10A @60°C
• Switching Speed: 300μs OFF-ON, 1ms ON-OFF
• Terminal Blocks: 1756-TBCH or 1756-TBS6H
• Surge Protection: 2A for 10ms (repeatable)
• Power Use: 5.88W max
• Isolation: 250V continuous

Easy Setup

• Fits any 1756 ControlLogix chassis
• Hot-swappable for easy maintenance
• LED indicators for each channel

Download Complete Documentation

Get full specs for the 1756-OV32E: Download Manual

Common Questions

1. What does “sinking output” mean?
   Connects load between +V and output (current sinks to module).
2. Can I control solenoids with this?
   Yes, perfect for solenoids and small relays.
3. How does electronic fusing work?
   Automatically protects each output from overloads.
4. Is this module good for LED arrays?
   Yes, ideal for lighting control applications.
5. What’s the module weight?
   Approx. 0.7kg (1.5lb).

Package Contents

• 1x 1756-OV32E output module
• Installation documentation

Shipping & Support

• 12-month product warranty
• Express shipping via FedEx, UPS, DHL
