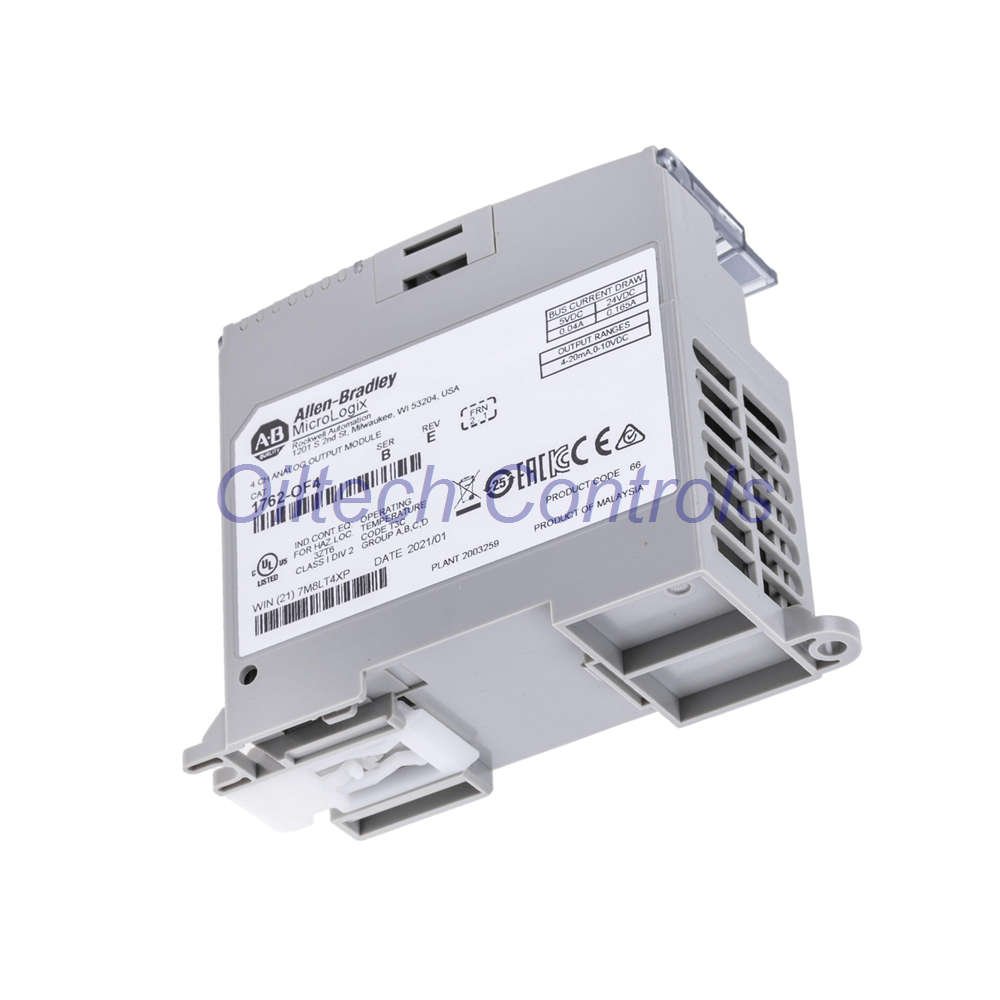

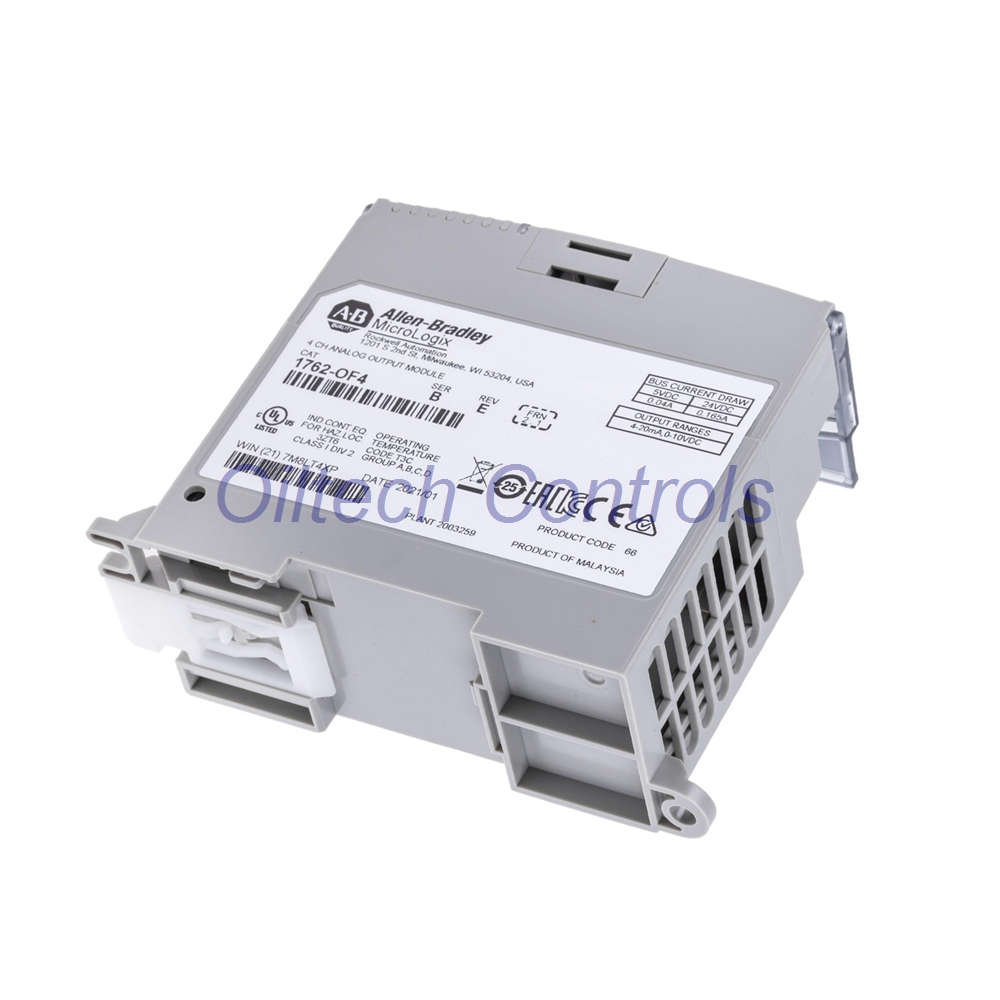

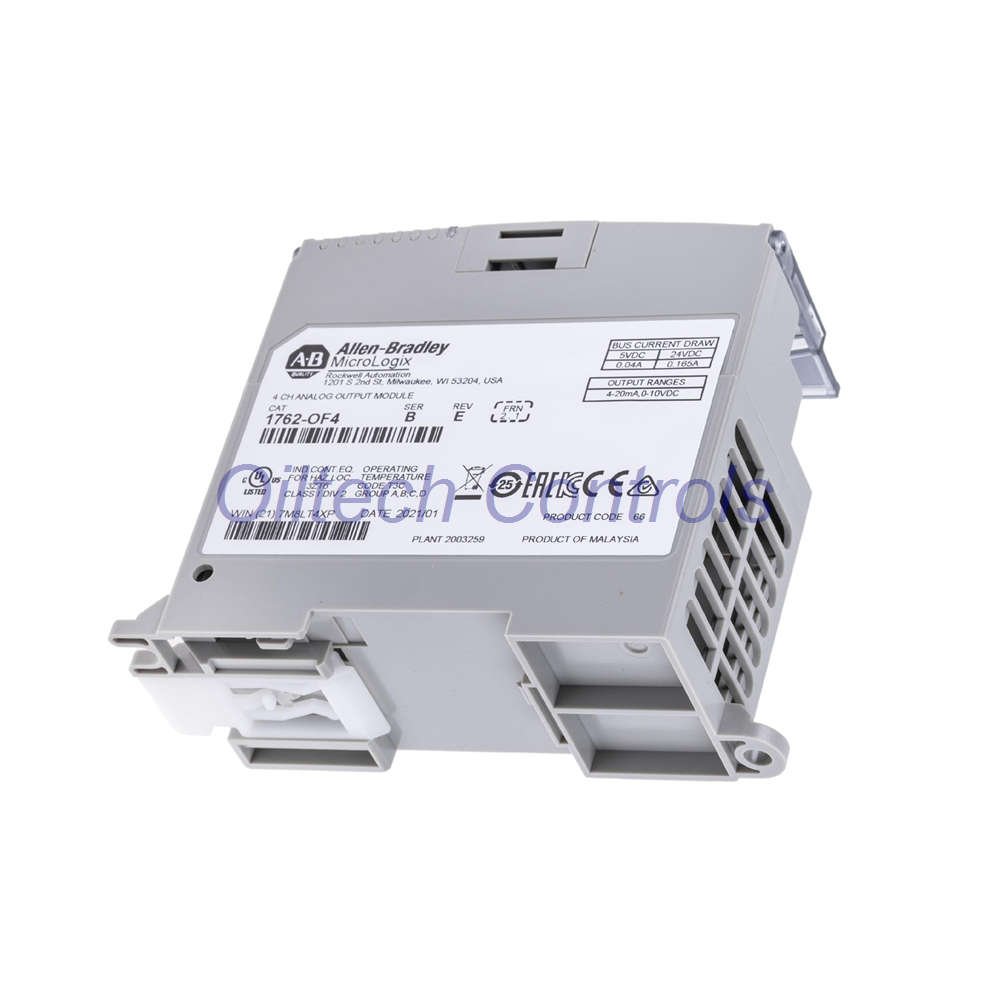

1762-OF4 Analog Output Module – MicroLogix 1200
Allen‑Bradley | 4 unipolar single‑ended outputs | 12‑bit resolution
Product Overview
1762‑OF4 is a high‑precision analog output module for the MicroLogix 1200 series. It delivers four unipolar single‑ended outputs with 2.5 ms update time – ideal for real‑time control. The module supports 0‑10V DC and 4‑20 mA normal ranges, extending to 0‑10.5V and 0‑21 mA full scale. Built‑in open‑circuit and short‑circuit protection ensure reliable operation in demanding industrial environments.
Key Technical Data
- Manufacturer: Allen‑Bradley / Rockwell Automation
- Model: 1762‑OF4
- Series: MicroLogix 1200
- Outputs: 4 unipolar single‑ended channels
- Resolution: 12‑bit (unipolar)
- Update time: 2.5 ms per module
- Load range (current): 0 … 500 Ω
- Load range (voltage): > 1 kΩ
- Normal analog ranges: 0‑10V DC / 4‑20 mA
- Full‑scale ranges: 0‑10.5V DC / 0‑21 mA
- Protection: continuous open‑circuit + short‑circuit
- LED indicator: module power status
- Enclosure rating: IP20
- Heat dissipation: 2.8 W
- Weight: 1.00 lbs (0.45 kg)
Measurement & Environmental Specifications
| Measurement range | 0‑10.5V DC / 0‑21 mA (full scale) |
| Resolution | 12‑bit (4096 steps) |
| Linearity | ±0.1% of full scale (typical) |
| Temperature range | 0 … 55 °C (operating), -40 … 85 °C (storage) |
| Environmental tolerance | 5‑95% RH (non‑condensing), IP20 |
| Immunity | Meets EN 61000‑6‑2 industrial standards |
Installation & Commissioning
- Directly mount on MicroLogix 1200 base unit – no external power supply needed.
- Use shielded twisted‑pair cables for analog signals to minimise noise.
- Set DIP switches for output type (voltage/current) before power‑up.
- Auto‑calibration routine simplifies initial commissioning.
Maintenance & Diagnostics
- Built‑in diagnostics – LED reports power and internal fault status.
- Read back channel status via ladder logic (open‑circuit / short‑circuit detection).
- Hot‑swap compatible – no need to power down for module replacement.
Compatibility
- Designed for Allen‑Bradley MicroLogix 1200 controllers (1762‑Lxx series).
- Fully compatible with RSLogix 500 and Connected Components Workbench.
- Also works with Modicon Quantum when used with appropriate adapters (not direct).
Certifications
- CE, cULus, ATEX (Zone 2), C‑Tick
- RoHS compliant, REACH
Package Contents
- 1762‑OF4 analog output module
- Removable terminal block (plug‑in type)
- Installation instructions sheet
- Protective dust cap
Warranty & Shipping
- 12‑month warranty – covers material and workmanship defects.
- Shipped via FedEx, UPS, or DHL – express worldwide.
- All units are tested prior to dispatch (functional & calibration check).
Typical Applications
- Precision valve positioners & actuator drives
- Variable speed motor control (0‑10V / 4‑20 mA input drives)
- Process signal conditioning for PLC/DCS systems
- Test bench simulation of analog sensors
Diagnostic Capabilities
- Per‑channel fault detection (open‑wire, short‑circuit, over‑load)
- Internal temperature monitoring for thermal protection
- Status feedback via RSLogix 500 diagnostics tab
Frequently Asked Questions
- Q: Can I use 1762‑OF4 with MicroLogix 1400?
A: Yes, with adapter cable (1762‑RD4), but native compatibility is with 1200. - Q: Does it support 0‑20 mA?
A: Yes, the full‑scale range covers 0‑21 mA. - Q: What is the update rate per channel?
A: 2.5 ms total module update – all channels updated simultaneously.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation – deep technical expertise
- Global logistics – fast, insured delivery worldwide
- Tested surplus / refurbished – fully verified before shipping
- 12‑month warranty with hassle‑free replacement
- Engineering verification – we check every unit against original specs
- Support for obsolete systems – we help you keep legacy lines running
