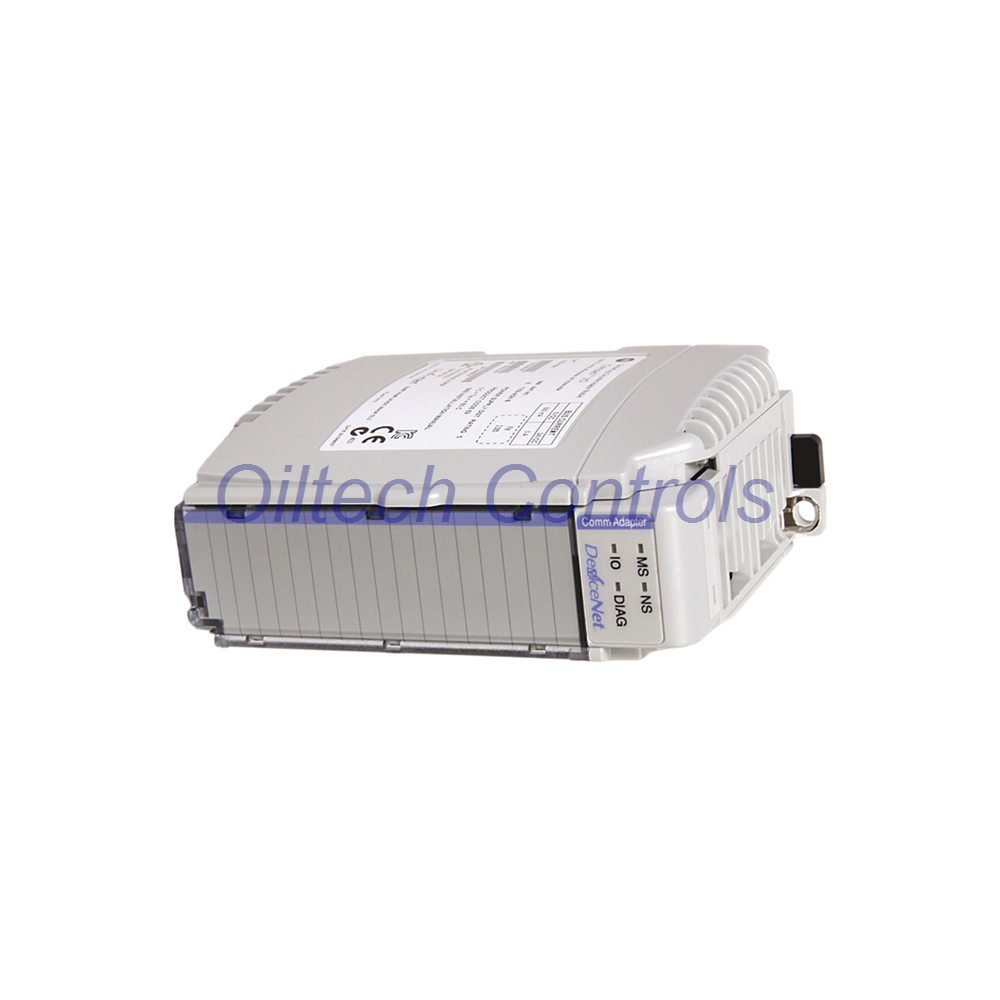

1769-ADN Allen-Bradley DeviceNet Adapter Module

Product Insight by Oiltech Controls
The 1769-ADN is a DeviceNet adapter for CompactLogix and MicroLogix 1500. It bridges low-level actuators and sensors to high-level PLC controllers. This module uses the Common Industrial Protocol (CIP) for control, data collection, and configuration. It eliminates the need for separate I/O modules by connecting devices directly to plant-floor controllers. Data transmission occurs on demand, which reduces start-up time and wiring complexity compared to hard-wired systems.

Technical Specifications

• Manufacturer: Rockwell Automation / Allen-Bradley
• Part Number: 1769-ADN
• Series: A and B
• Communication Port: One (1) DeviceNet
• Data Transfer Rates: 125, 250, 500 kbit/s
• Maximum Nodes: 30 I/O nodes
• Backplane Current (5V DC): Series A: 450mA, Series B: 500mA
• Current Draw (24V DC): 90 mA
• Voltage Range: 11 to 25V DC
• Isolation Voltage: 30V continuous
• Power Dissipation: 7.5 W (max)
• Mounting: DIN Rail or Panel
• Enclosure: Open type
• Dimensions (HxWxD): 118 x 50 x 87 mm (including tabs: 138mm)
• Weight: 0.6 lbs (shipping weight 2 lbs)
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Humidity: 5% to 95% non-condensing
• Certifications: UL, CE, DeviceNet Foundation
• Status Indicators: Module, Network, I/O, Diagnostic (red/green)

Compatibility & System Integration

• Compatible with 1769 CompactLogix and MicroLogix 1500 platforms.
• Works with DeviceNet scanners like 1769-SDN.
• Responds to scanners from PLC-5, SLC 500, and ControlLogix families.
• Supports 180 words input, 180 words output, and 724 words configuration data.
• Power Supply Distance Rating: Series A: 4 modules, Series B: 5 modules from power supply.
• Requires one slot in a CompactLogix chassis.

Installation & Wiring Guidelines

• Mount via DIN rail or panel (open enclosure).
• Use 802.3 compliant twisted-pair cable (14 AWG / 2 mm²).
• Securely lock bus connectors to establish electrical connection.
• If resistance is felt, disengage and check pin alignment before reconnecting.
• Maximum cable length: 500m at 125kbps, 250m at 250kbps, 100m at 500kbps.

Diagnostic & Maintenance Features

• Enhanced diagnostic capabilities for better fault detection.
• Improved data collection for predictive maintenance.
• Status LEDs provide real-time module and network health.
• Reduced start-up time compared to traditional hard-wired systems.

Typical Applications

• Connecting sensors, actuators, and simple devices to CompactLogix.
• Integrating DeviceNet field devices with PLC-5 or SLC 500 systems.
• Distributed I/O in manufacturing and process automation.

Oiltech Controls’s Insight

• This module is a reliable choice for upgrading legacy DeviceNet networks.
• Series B offers a longer power supply distance (5 modules vs. 4).
• Ensure proper bus connector locking to avoid intermittent communication faults.

5 Professional FAQs

• Q: Can the 1769-ADN be used with ControlLogix?
  A: Yes, it can respond to ControlLogix scanners via DeviceNet messaging functions.
• Q: What is the maximum number of I/O nodes?
  A: It supports up to 30 I/O nodes on the DeviceNet network.
• Q: Does it support hot swap?
  A: No, this module does not support hot swap. Always power down before installation or removal.
• Q: Which cable type is recommended?
  A: Use Allen-Bradley DeviceNet cable or 802.3 compliant twisted pair (14 AWG).
• Q: How to troubleshoot if the module does not communicate?
  A: Check bus connector alignment, verify power supply distance, and confirm baud rate matches the scanner.
