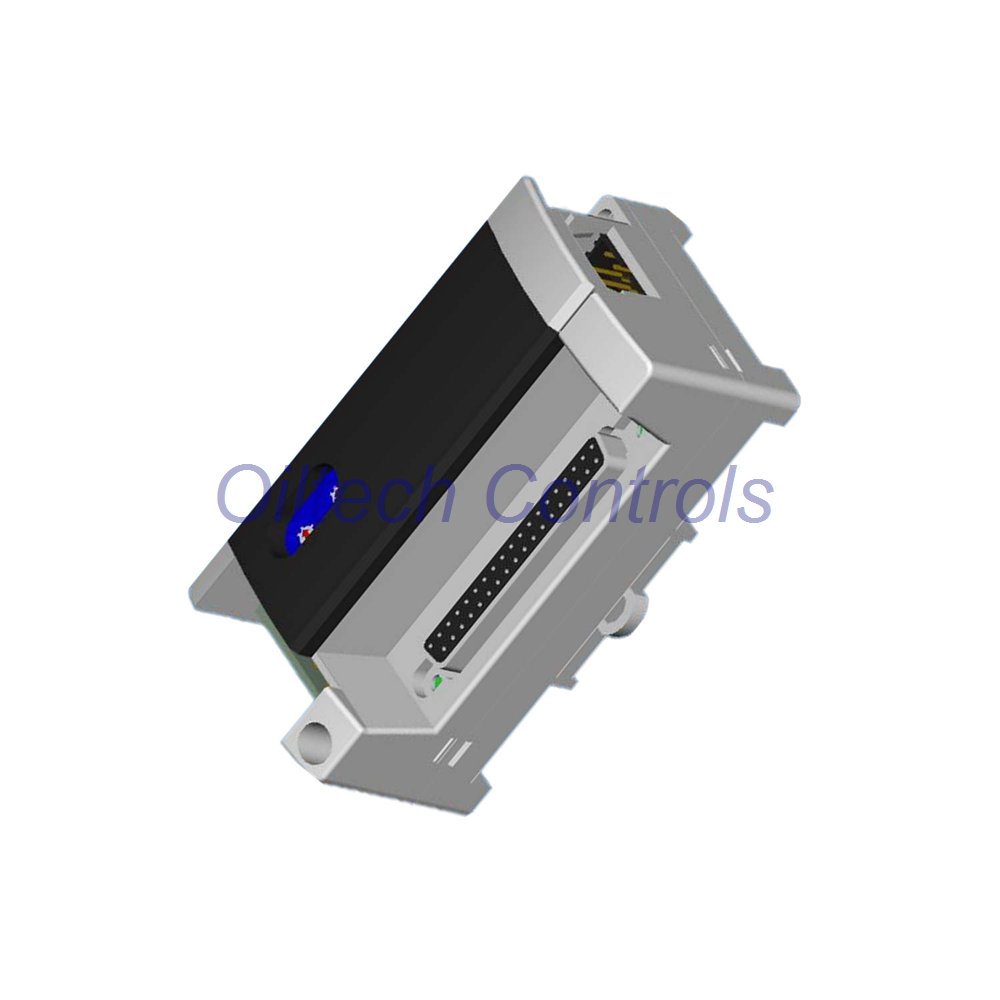

1790-0V16X Allen-Bradley 16-Point Sinking Output Module
1790-0V16X delivers reliable 24V DC sinking outputs for compact DeviceNet automation systems.
This module supports 16 non-isolated outputs with fast response and stable electrical performance.
It fits base and expansion configurations and improves control accuracy in industrial environments.
Oiltech Controls provides tested units to ensure consistent operation in demanding applications.
Core Output Performance
- 16 sinking output channels provide efficient signal control for multiple devices.
- On-state voltage ranges from 10V to 28.8V DC for flexible system compatibility.
- Maximum voltage drop stays within 0.5V DC to maintain output efficiency.
- Each channel supports minimum 1 mA current for stable signal activation.
- Off-state leakage remains low at 0.5 mA maximum to reduce false triggering.
- Output current supports up to 0.5A per channel and 4.0A per common.
Switching Speed and Indicators
- Fast response ensures accurate control with 0.5 ms Off-to-On switching time.
- On-to-Off delay reaches 1.0 ms maximum for consistent signal transitions.
- 16 green LED indicators display real-time channel status clearly.
- Quick diagnostics improve maintenance efficiency and reduce downtime.
Electrical and Power Specifications
- DeviceNet supply voltage operates at 24V DC nominal.
- Voltage range supports 11V to 28.8V DC for flexible system integration.
- Field power operates at 24V DC with a 10V to 28.8V range.
- Power dissipation remains low at 1.2W maximum under full load.
- Each output consumes only 6 mA at 28.8V DC for energy efficiency.
Isolation and Wiring Design
- Photocoupler isolation protects logic circuits from electrical interference.
- Isolation voltage reaches 1250V AC RMS for enhanced safety.
- Uses a 37-pin D-shell connector for secure and reliable wiring.
- Common wiring supports grouped configuration for simplified installation.
- Com 0 and Com 2 connect to +24V DC, while Com 1 and Com 3 connect to GND.
Compatible Systems and Applications
- Works with Allen-Bradley DeviceNet compact I/O systems.
- Suitable for PLC-controlled automation and distributed control panels.
- Ideal for manufacturing lines, packaging machines, and process control systems.
- Supports integration with sensors, actuators, and industrial relays.
Oiltech Controls’s Insight
- This module suits applications that require fast switching and compact installation space.
- Engineers prefer sinking outputs when loads connect to positive supply configurations.
- Stable current handling ensures reliable operation in multi-channel control systems.
- Proper grounding and wiring improve long-term performance and reduce noise issues.
Logistics and Warranty
- All units undergo inspection before shipment to ensure working condition.
- Orders ship within 24–48 hours after payment confirmation.
- Delivery options include FedEx, UPS, and DHL.
- We provide a 12-month warranty for quality assurance.
FAQ – Practical Selection and Usage
- How do I choose between sinking and sourcing output modules?
- Sinking modules work best when loads connect to positive voltage, while sourcing fits negative-side switching designs.
- What factors affect output stability in industrial environments?
- Stable power supply, proper grounding, and shielded wiring reduce interference and improve reliability.
- Can this module handle high-current loads directly?
- Each channel supports up to 0.5A, so external relays are recommended for higher loads.
- How do I reduce signal delay in fast automation systems?
- Use short wiring distances and high-quality cables to maintain fast response performance.
- What should I check before installation?
- Verify voltage range, wiring polarity, and connector integrity to avoid startup issues.
