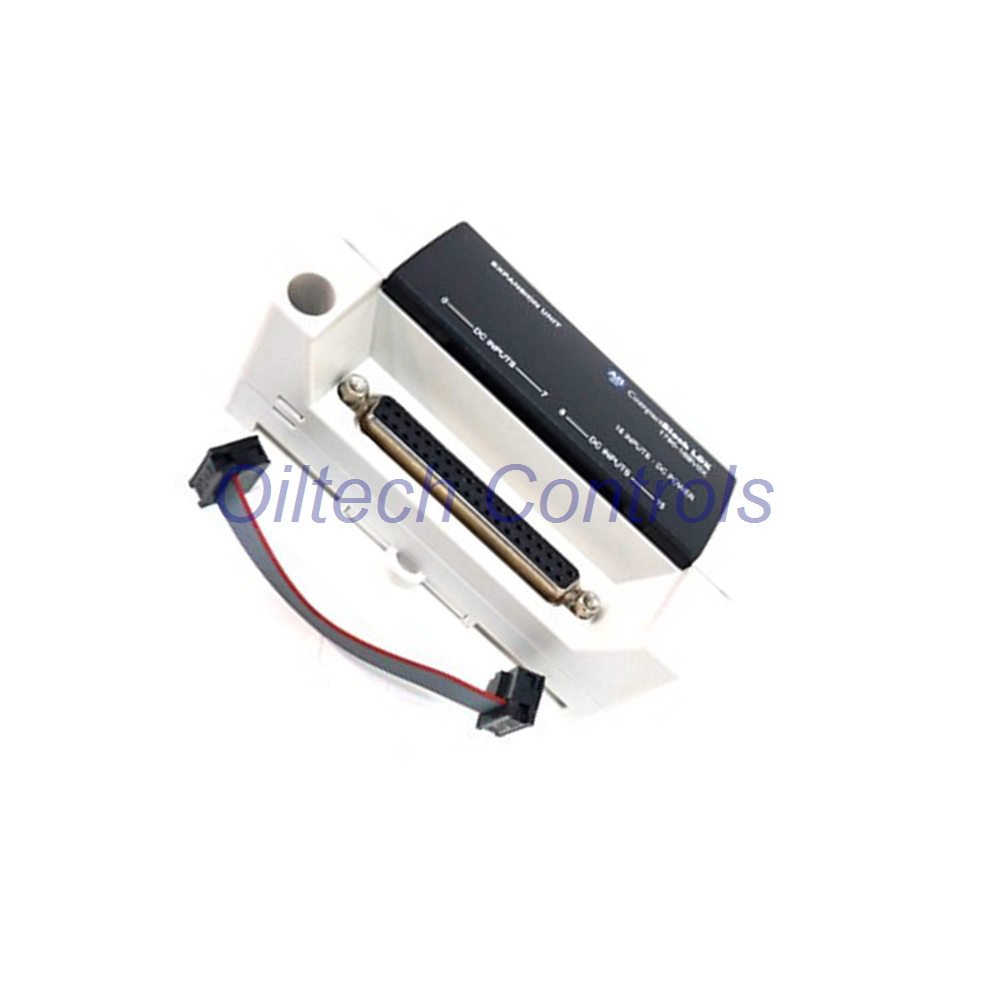

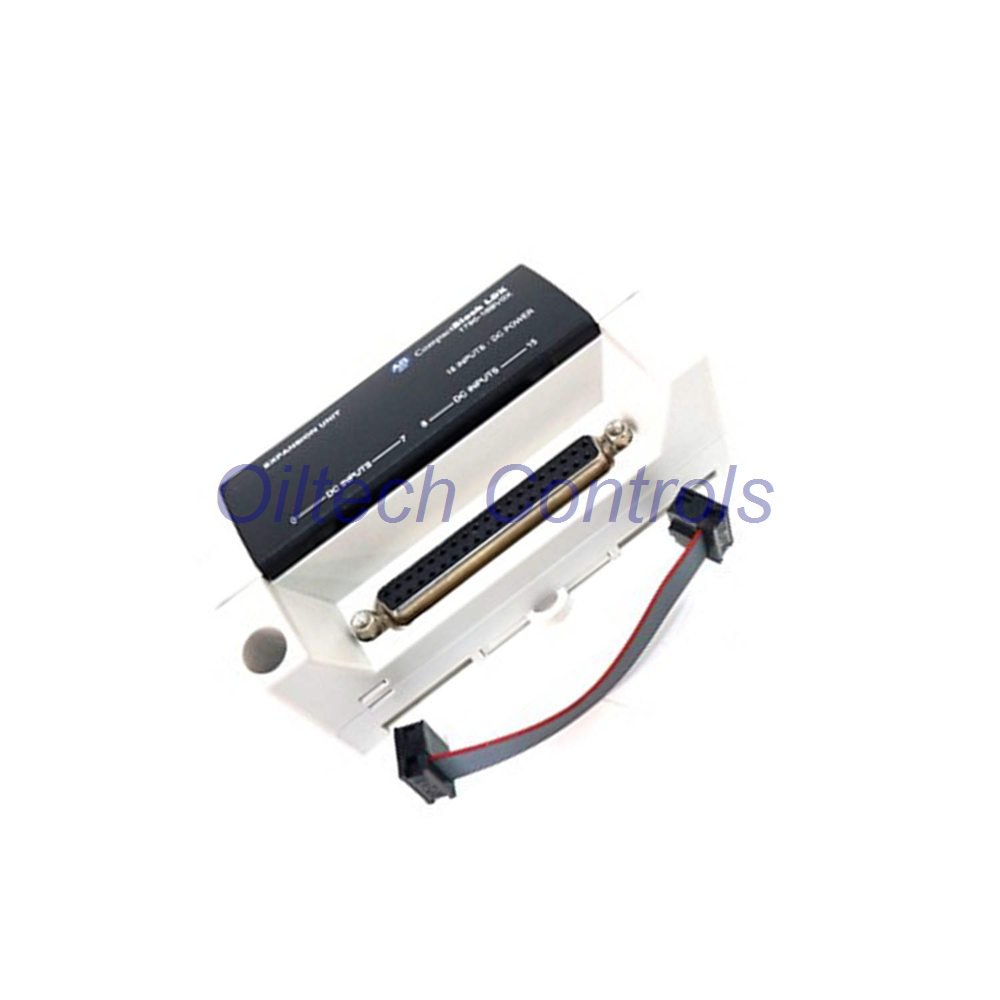

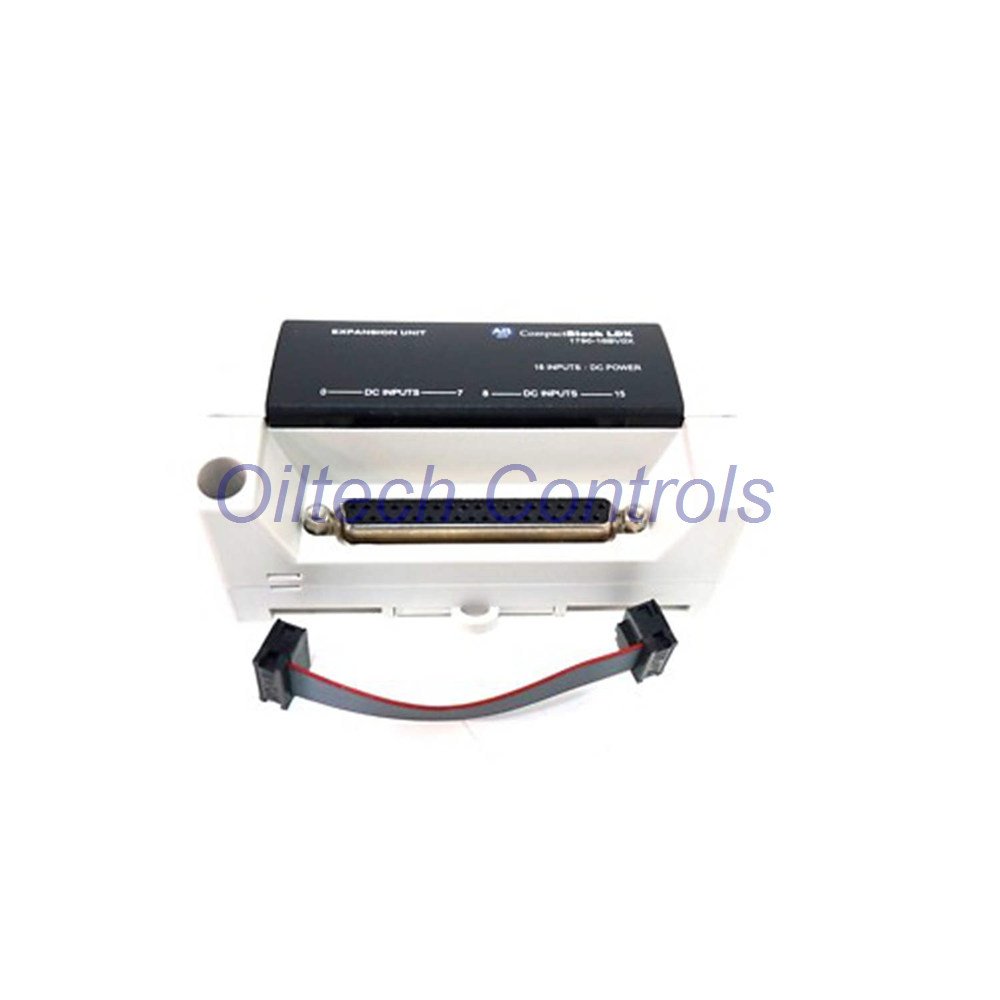

1790-16BV0X 16-Point Universal Input Module
1790-16BV0X is a compact industrial input module designed for stable signal acquisition.
It supports both sinking and sourcing inputs with DeviceNet compatibility.
Ideal for distributed I/O systems requiring reliability and flexibility.
Key Functional Highlights
- 16 universal input channels for flexible wiring configurations
- Supports both sinking and sourcing input types
- Clear status indication with 16 green LEDs
- Optimized for compact automation architectures
- Stable signal detection in industrial environments
Electrical Performance
- Operating voltage range: 11 to 28.8V DC
- Nominal input voltage: 24V DC
- On-state current: up to 8 mA per channel
- Input impedance: approximately 4.8 kΩ
- Power dissipation: maximum 1.2W
Signal Integrity & Protection
- Photocoupler isolation ensures signal stability
- Isolation voltage rated at 1250V AC
- High noise immunity improves system reliability
- Prevents interference between logic and I/O circuits
System Integration
- Compatible with DeviceNet distributed systems
- 37-pin D-shell connector simplifies wiring
- Non-polarity common design supports flexible installation
- Efficient mapping of input data via bit structure
Data Mapping Structure
- Status byte provides real-time module condition
- Input bits mapped clearly across multiple words
- Each bit directly corresponds to input channels
- Simplifies PLC programming and diagnostics
Installation & Wiring Guidance
- Use recommended cable size for stable connections
- Ensure secure connector installation to avoid signal loss
- Maintain proper grounding for noise reduction
- Install in control cabinets with adequate ventilation
Oiltech Controls’s Insight
- Highly reliable for distributed I/O applications
- Compact size suits space-limited control panels
- Flexible input type reduces design complexity
- Ideal for scalable automation systems
Typical Application Equipment
- Conveyor and material handling systems
- Packaging and assembly machinery
- Process monitoring systems
- Industrial automation control panels
- Distributed field I/O networks
Professional FAQ
- How to choose between sinking and sourcing inputs?
- Select based on sensor output type and system wiring standard.
- What is a common issue during installation?
- Loose connectors often cause unstable signal readings.
- Can this module operate in noisy environments?
- Yes, built-in isolation improves resistance to interference.
- What should be checked before commissioning?
- Verify voltage range, wiring integrity, and DeviceNet configuration.
- What are the delivery and warranty conditions?
- 12-month warranty with fast shipping in 24–48 hours via DHL, UPS, or FedEx.
