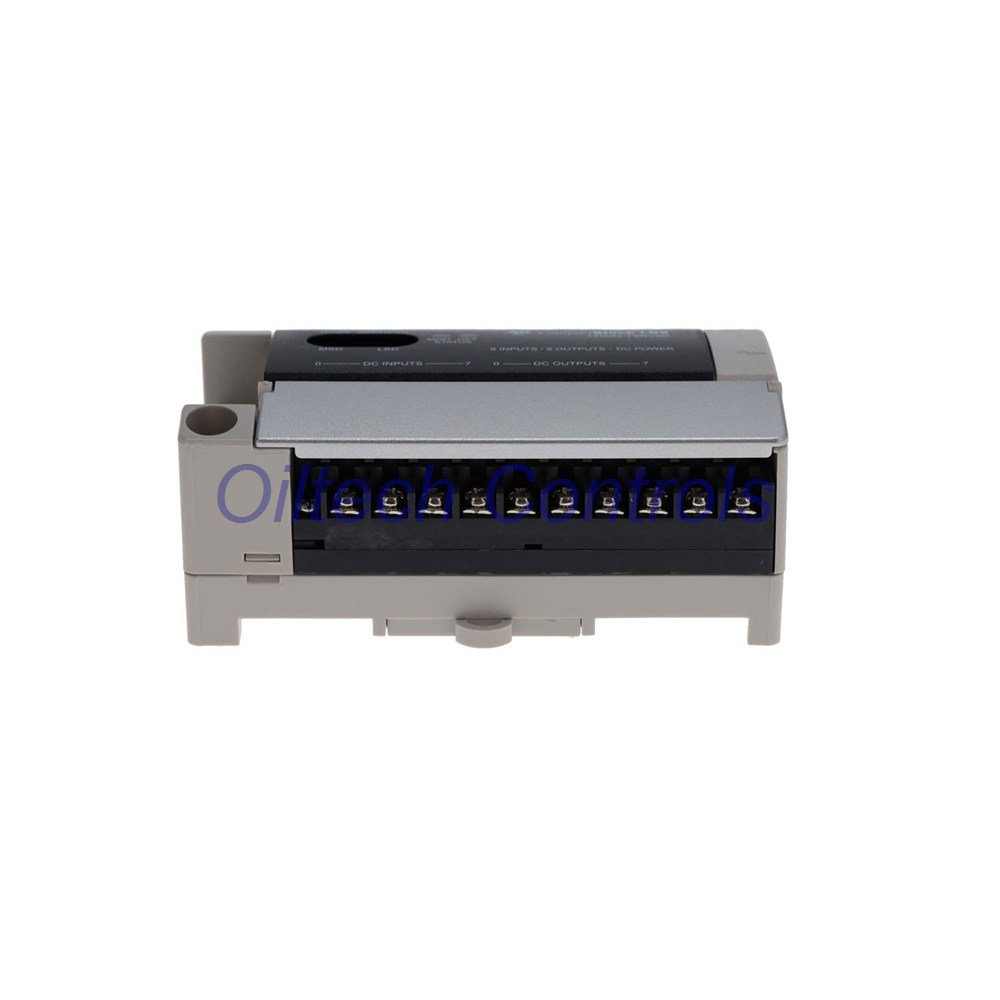

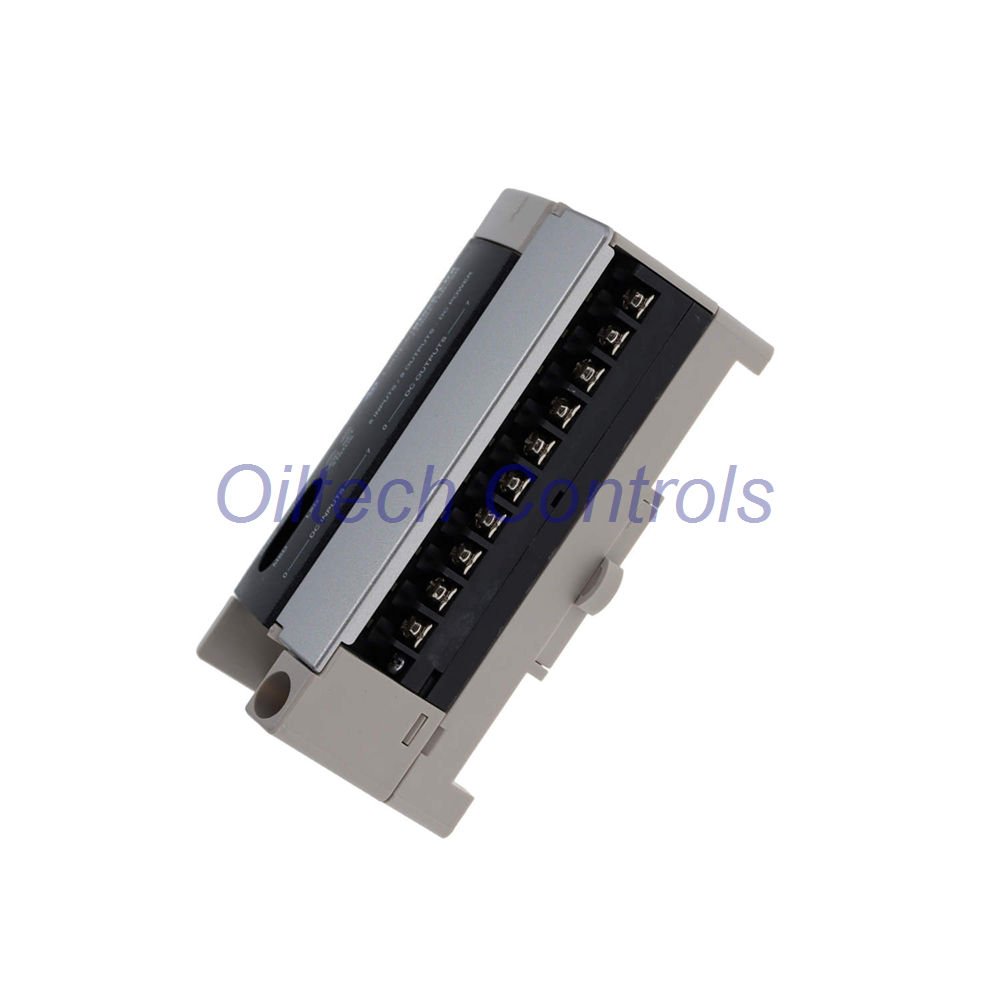

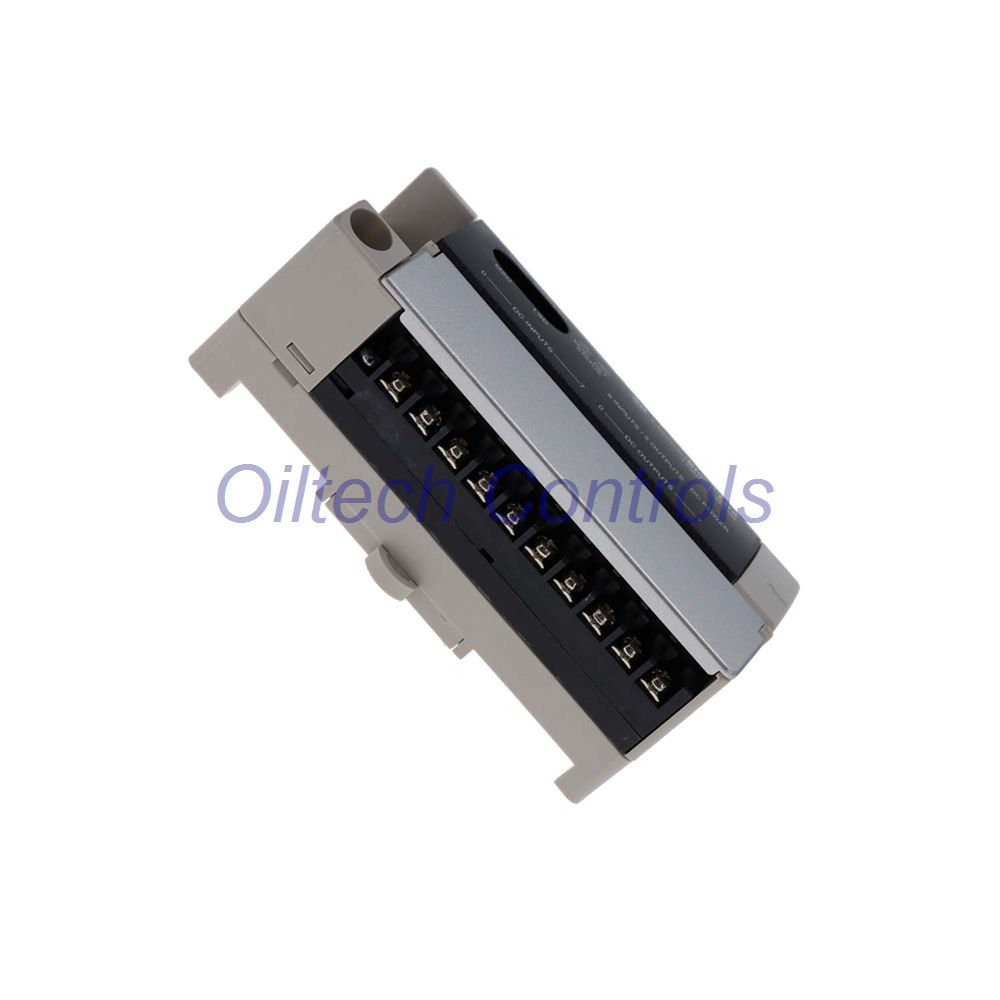

1790-8BV8VX DeviceNet I/O Module Overview
The 1790-8BV8VX is a compact DeviceNet base and expansion module.
It integrates 8 universal inputs and 8 sinking outputs.
It suits distributed control systems requiring stable signal handling.
The module ensures reliable operation in industrial automation environments.
Input Characteristics
- 8 non-isolated input points support sinking or sourcing signals.
- Input voltage range covers 9.6V to 28.8V DC.
- Maximum current per point reaches 8 mA.
- Input impedance is approximately 4.8 KΩ.
- Includes 8 green LED indicators for status monitoring.
Output Performance
- 8 sinking outputs designed for industrial loads.
- Output voltage operates up to 28.8V DC.
- Each output supports up to 0.5 A current.
- Total current capacity reaches 4.0 A per common.
- Fast switching with millisecond-level response time.
Electrical & System Features
- Powered by 24V DC nominal supply.
- Voltage range extends from 11V to 28.8V DC.
- Low power dissipation enhances efficiency.
- Photocoupler isolation protects I/O signals.
- DeviceNet communication ensures stable networking.
Installation & Wiring

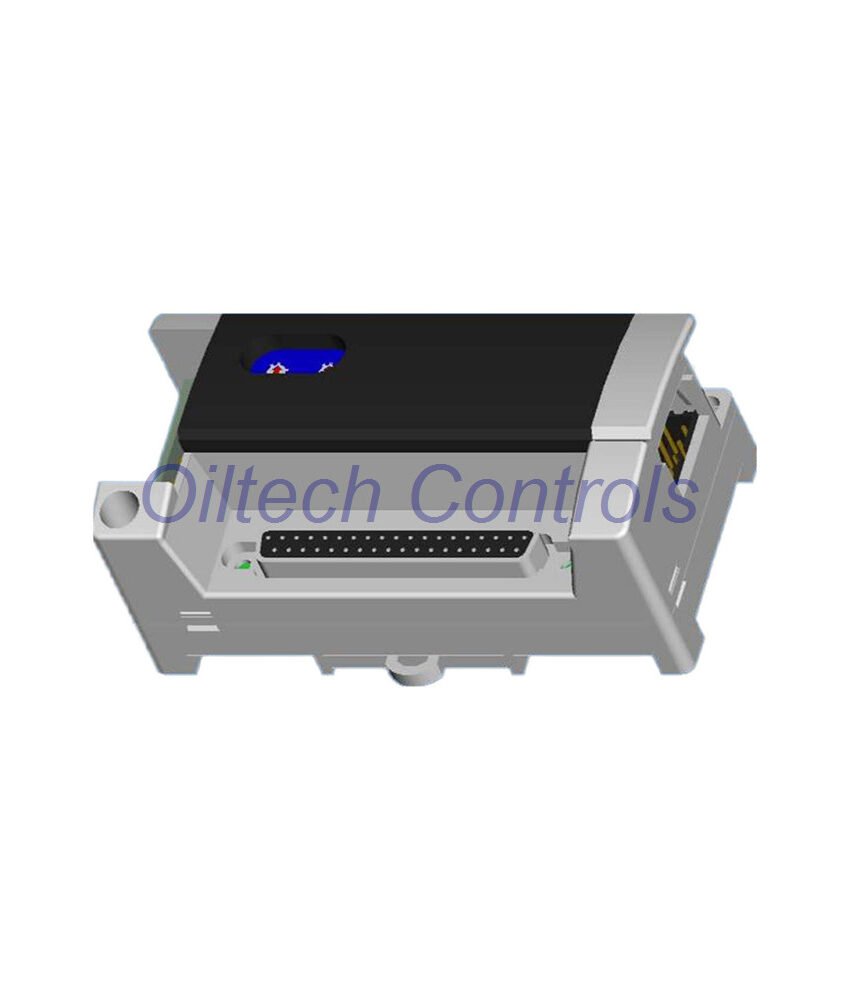

- Uses 37-pin D-shell connector for secure wiring.
- Compact structure simplifies panel integration.
- Supports distributed mounting in control systems.
- Ensure proper grounding for signal stability.
Application Scope
- Machine automation and control panels
- Material handling systems
- Packaging and assembly lines
- Distributed I/O networks
Oiltech Controls’s Insight
- This module fits compact PLC systems with limited space.
- It performs well in DeviceNet-based architectures.
- Suitable for applications requiring fast signal response.
- Works effectively with MicroLogix and similar controllers.
Warranty & Delivery
- 12-month warranty ensures product reliability.
- Fast dispatch within 24–48 hours.
- Shipping via FedEx, UPS, or DHL.
- Secure packaging protects during transport.
FAQ
- What is the main advantage of this module?
- It combines input and output in one compact unit.
- How to choose this module for a project?
- Check voltage compatibility and DeviceNet network requirements.
- Can it handle high-speed switching?
- Yes, it offers fast response within milliseconds.
- What installation detail is often overlooked?
- Proper wiring and grounding improve signal stability.
- How to place an order quickly?
- Contact support via email or WhatsApp for fast processing.
