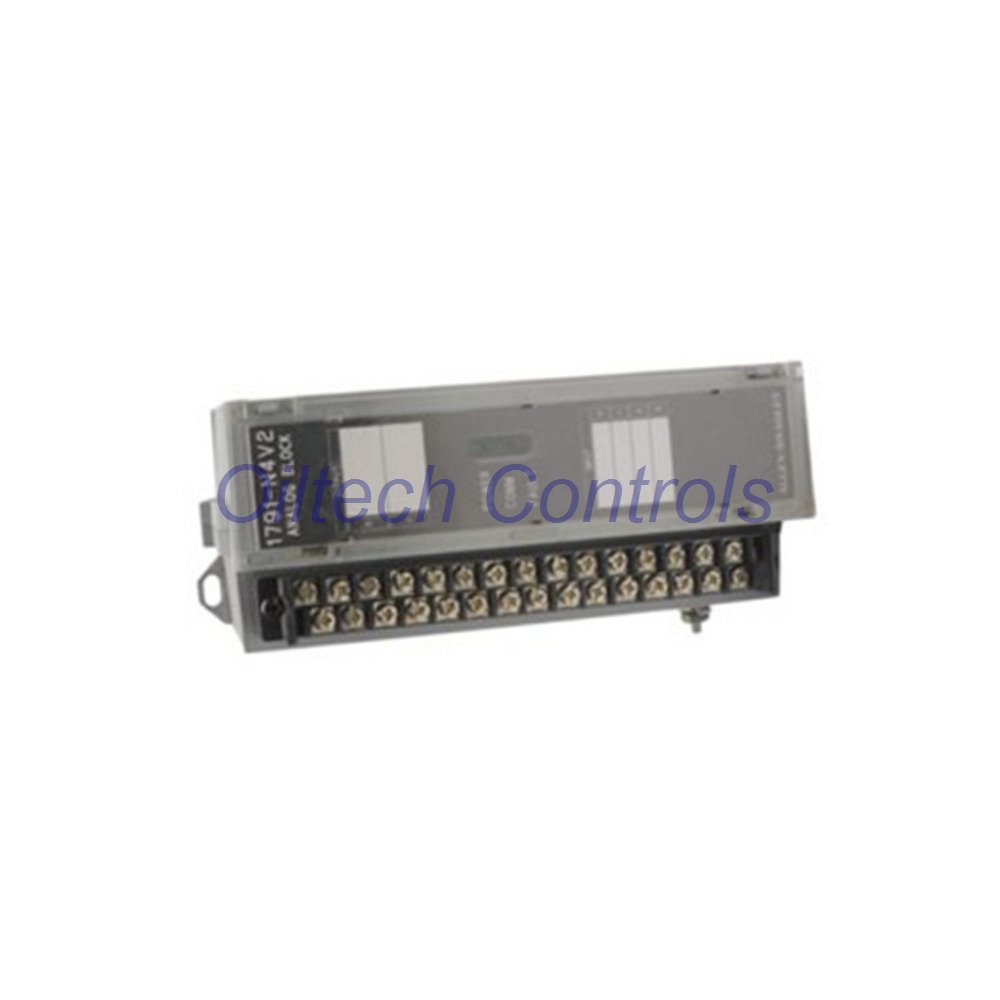

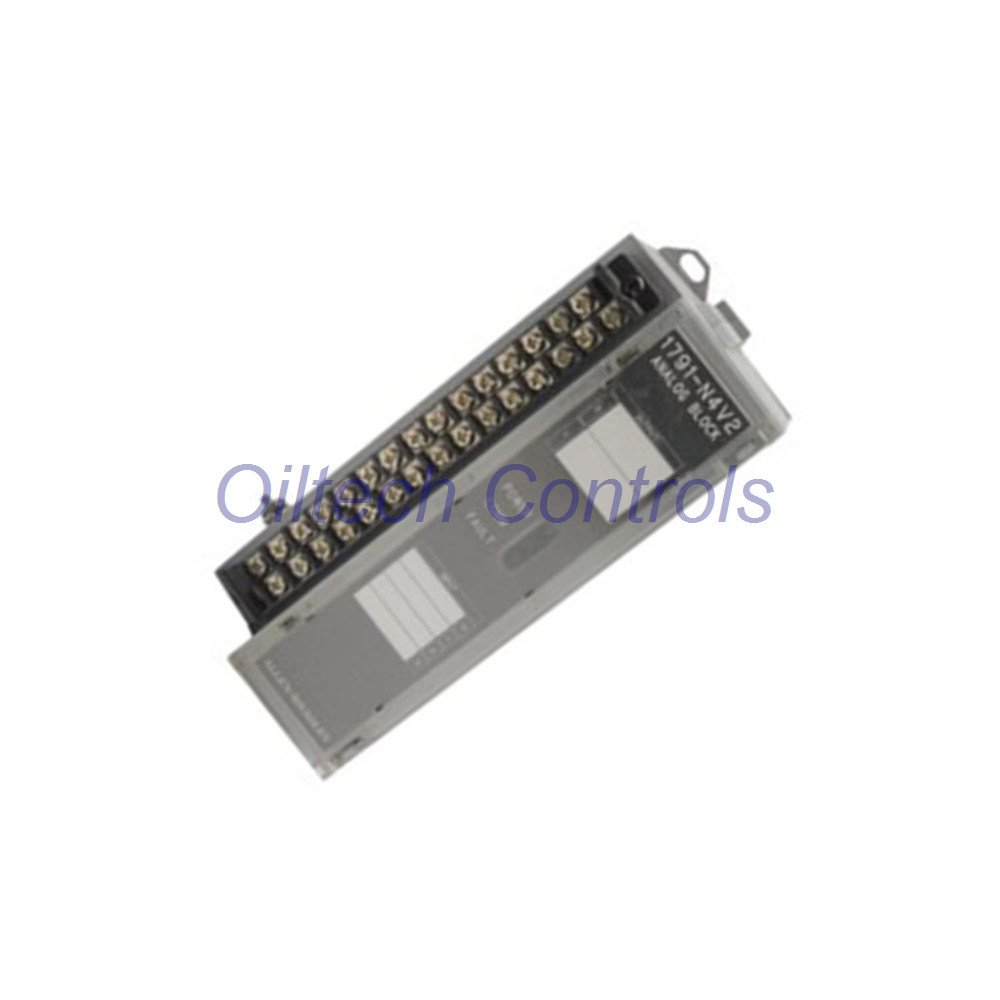

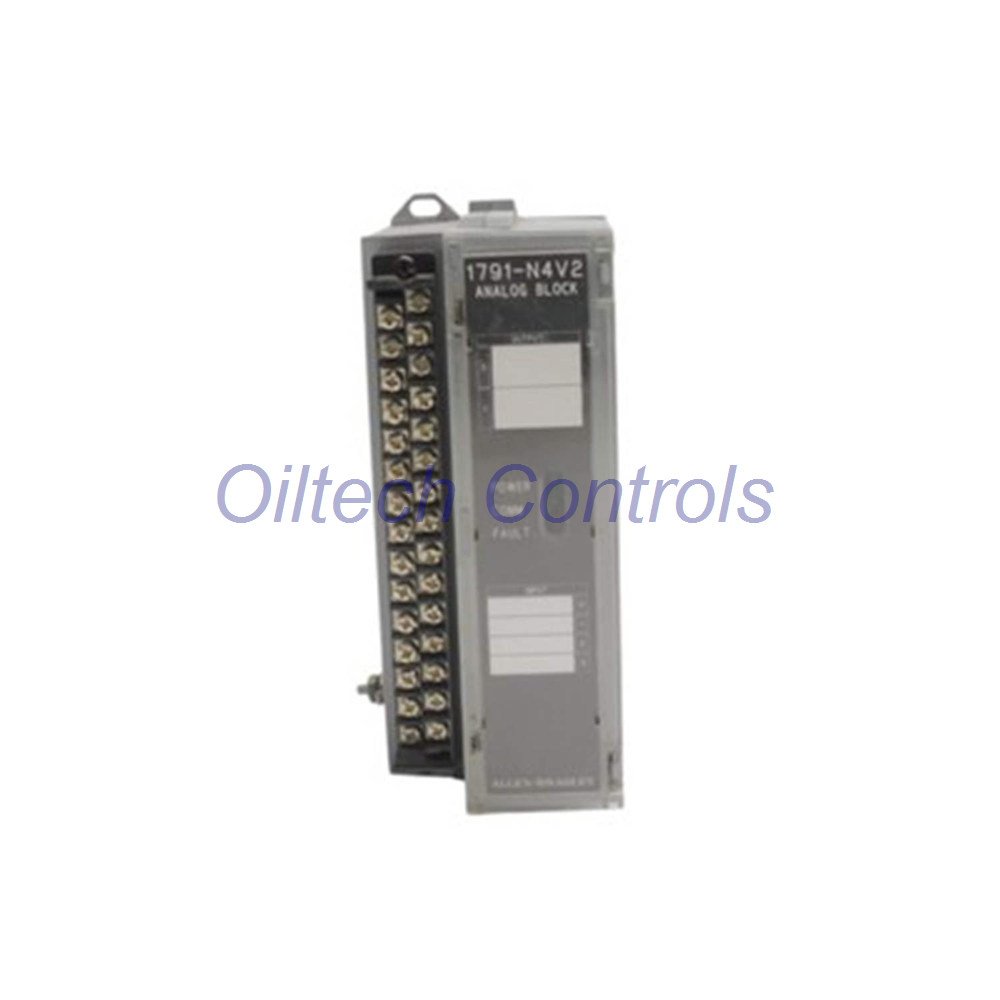

Technical Engineering Profile: 1791-N4V2 Analog Block
The 1791-N4V2 serves as a specialized analog combination module within the Allen-Bradley 1791 Block I/O series. This high-precision unit features four selectable analog inputs and two dedicated voltage outputs, facilitating localized signal processing in distributed RIO networks. Engineered for accuracy, the 1791-N4V2 maintains a 0.1% absolute accuracy rating at 25 degrees Celsius, making it ideal for monitoring critical pressure, temperature, or flow transducers. The integrated short-circuit protection and robust common-mode rejection ensure stable data acquisition in electrically noisy industrial environments.
Core Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model Number: 1791-N4V2
- Input Configuration: 4 Selectable Analog Channels (Current or Voltage)
- Output Configuration: 2 Analog Voltage Outputs
- Absolute Accuracy: 0.1% at 25°C (77°F)
- Linearity Rating: 0.05% at 25°C for linear signal tracking
- Common Mode Rejection: -75 dB for superior interference suppression
- Channel Update Rate: 108 milliseconds per input channel
- Output Update Rate: 10 milliseconds per output channel
- Output Impedance: Rated at less than 1 Ohm
- Protection: Indefinite short circuit protection for all output stages
- Unit Weight: 1.25 lbs (0.57 kg) for compact DIN rail mounting
Oiltech Controls’s Insight
- Application Compatibility: This module excels in legacy PLC-2, PLC-3, and PLC-5 control architectures.
- Device Interfacing: It seamlessly connects with variable frequency drives (VFDs), proportional valves, and analog sensors.
- Performance Edge: The 10ms output update rate provides near-real-time control for modulating critical actuators.
- Legacy Support: We recommend this component for maintaining existing RIO installations without full system overhauls.
- Technical Note: Engineers should prioritize proper shielding on analog lines to maintain high rejection performance.
Logistics and Service Terms
- Warranty: Every unit includes a standard 12-month functional guarantee.
- Dispatch Time: Our team processes and ships orders within 24-28 hours.
- Global Shipping: We provide priority delivery via FedEx, UPS, and DHL.
- Contact: For urgent stock inquiries, email info@oiltechcontrols.com or message +86 158 8020 0923.
Professional Engineering FAQ
How do I configure the input types on the 1791-N4V2?
You must set the internal DIP switches or jumpers to select between current or voltage modes.
What causes the “Absolute Accuracy” to drift from the 0.1% spec?
Temperature fluctuations beyond 25°C impact accuracy; always maintain stable enclosure cooling for precise measurements.
Is the 1791-N4V2 hot-swappable during PLC operation?
No, always remove system power before disconnecting Block I/O modules to prevent RIO communication errors.
How does the short-circuit protection handle a direct ground fault?
The module features indefinite protection, limiting current internally without damaging the circuitry until the fault clears.
Selection Guidance: When should I choose N4V2 over N4C2?
Select the 1791-N4V2 when your actuators require voltage-driven signals (0-10V) rather than current-loop signals.
