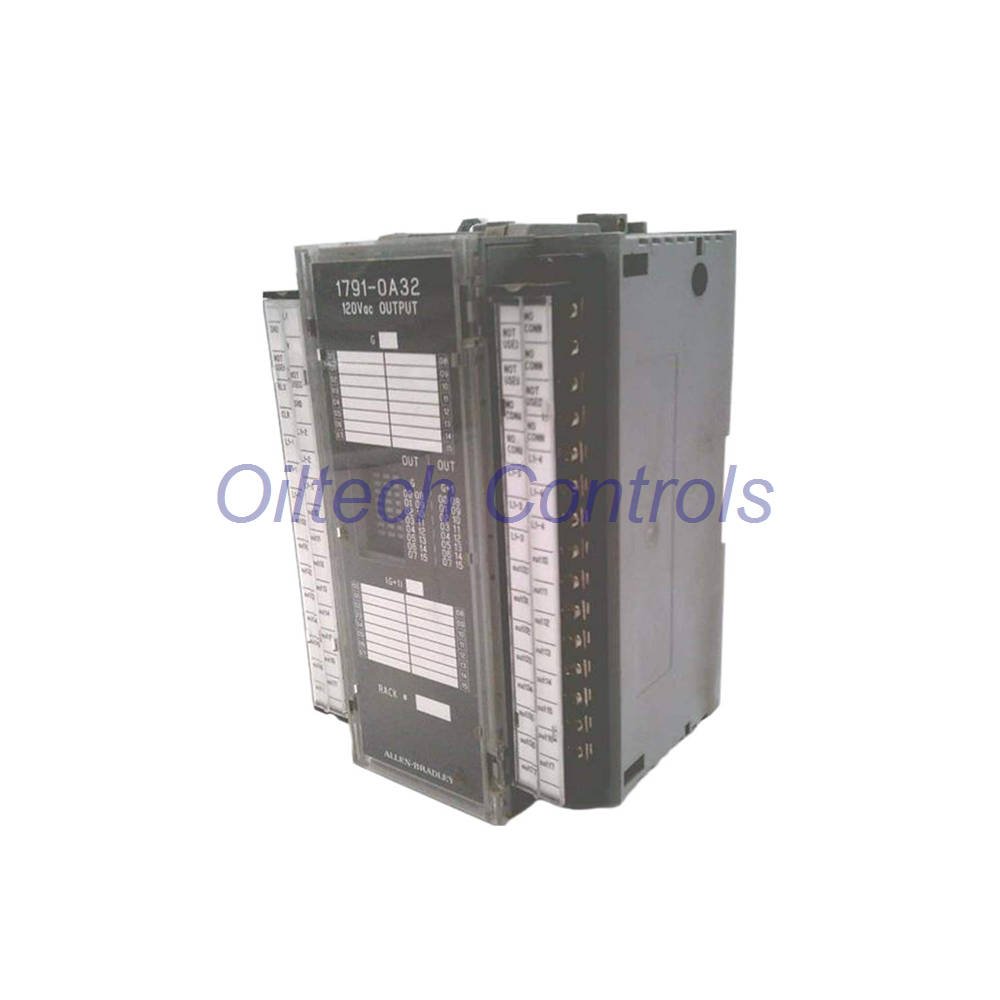

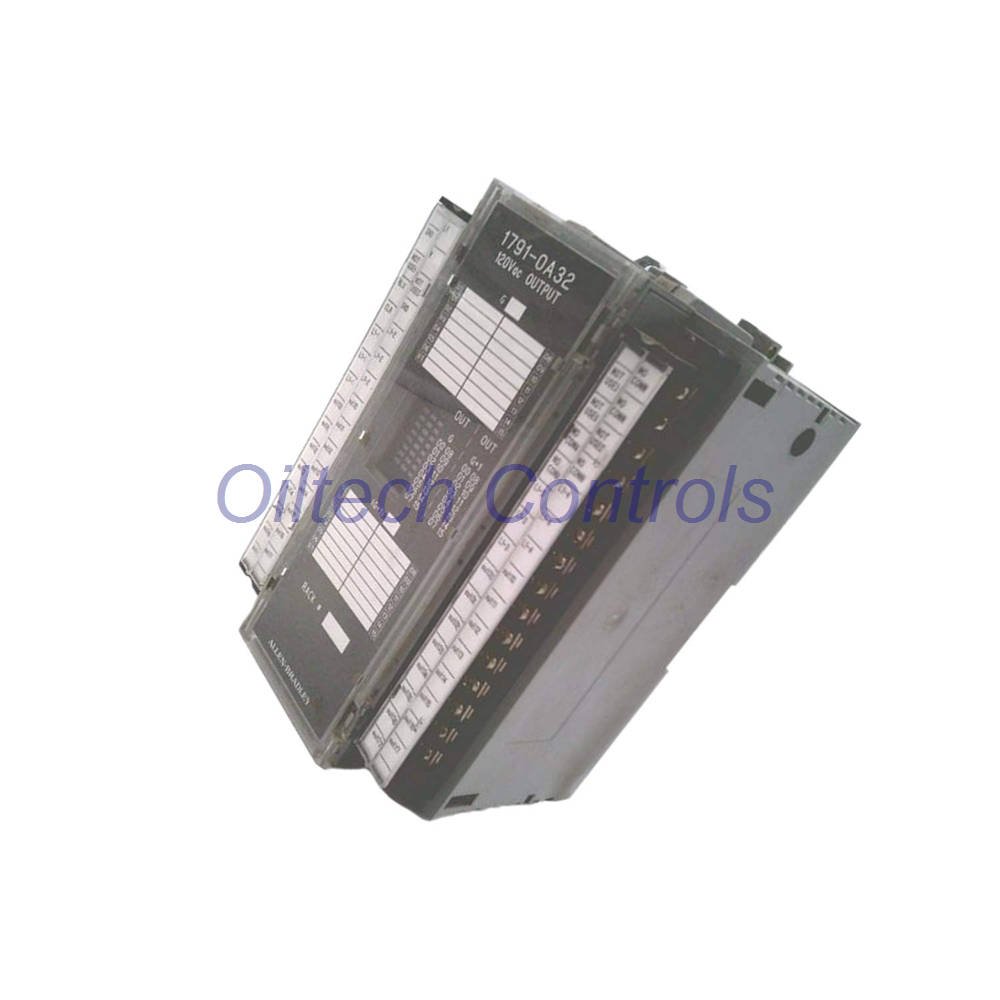

Engineering Summary: 1791-OA32 High-Density AC Output
The Allen-Bradley 1791-OA32 operates as a robust, slave-type distributed I/O station designed for high-density switching applications. It integrates thirty-two discrete AC output channels, strategically partitioned into four isolated groups of eight. This 1791-series block functions seamlessly as a remote I/O rack and adapter in one, communicating directly with RIO scanners. Technical personnel favor the 1791-OA32 for its compact footprint and integrated signal conditioning, providing reliable 120VAC control for complex industrial automation arrays.
Core Data & Technical Matrix
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Identification: 1791-OA32
- Module Class: Digital AC Output Block (High-Density)
- Operating Voltage: 20-132V AC (85-132V AC External Power)
- Channel Count: 32 Outputs (4 Groups of 8)
- Maximum Holding Current: 300mA per output (Vertical @ 60°C)
- Surge Capacity: 10A for 50ms (repeatable every 2 seconds)
- Isolation Type: Integrated adapter for Remote I/O (RIO) protocol
- Signal Response: 1.0ms ON delay / 10.0ms OFF delay (@ 50Hz)
- Mechanical Profile: 1.00 lbs (0.45 kg) with dual-orientation mounting support
Oiltech Controls’s Insight
- Device Suitability: Perfect for driving motor starters, high-wattage solenoids, and industrial signaling arrays.
- System Synergy: Optimized for legacy environments using PLC-5/20, PLC-3, or PLC-2/1772-SD scanners.
- Thermal Management: Engineers should prioritize vertical mounting to achieve the full 600mA rating at 30°C.
- Protection Factor: Features an internal power supply and electronic circuitry shielding to prevent signal crosstalk.
- Maintenance Tip: Use the front-facing status indicators to diagnose channel-specific faults without disassembling the block.
Ordering & Support Protocols
- Shipping Lead Time: All orders processed and dispatched within 24-28 hours.
- Logistics Partners: Reliable global delivery provided via FedEx, UPS, and DHL.
- Quality Assurance: This 1791-OA32 includes a comprehensive 12-month functional warranty.
- Direct Inquiry: Contact our team at info@oiltechcontrols.com for bulk pricing.
- WhatsApp Support: Chat with an expert at +86 158 8020 0923 for instant technical help.
Engineering FAQ & Selection Guide
How do I configure the RIO station address on the 1791-OA32?
Access the internal I/O group switch assembly by opening the module’s front cover; settings must match your scanner’s scan list.
What happens if my load exceeds the 300mA continuous rating?
Exceeding current limits causes overheating; for loads above 300mA at 60°C, consider using interposing relays to protect the 1791-OA32 circuitry.
Can this module be used in a horizontal cabinet layout?
Yes, but note that horizontal mounting derates the output current to 150mA per channel at 60°C due to reduced airflow.
Selection Tip: 1791-OA32 vs. Lower Density Blocks?
Choose the 1791-OA32 when cabinet space is at a premium and you need to minimize the number of RIO adapter drops on the link.
How do I identify a communication fault versus a power fault?
Observe the front LEDs; the “COMM” indicator shows RIO link status, while the “PWR” indicator confirms the health of the 85-132VAC supply.
