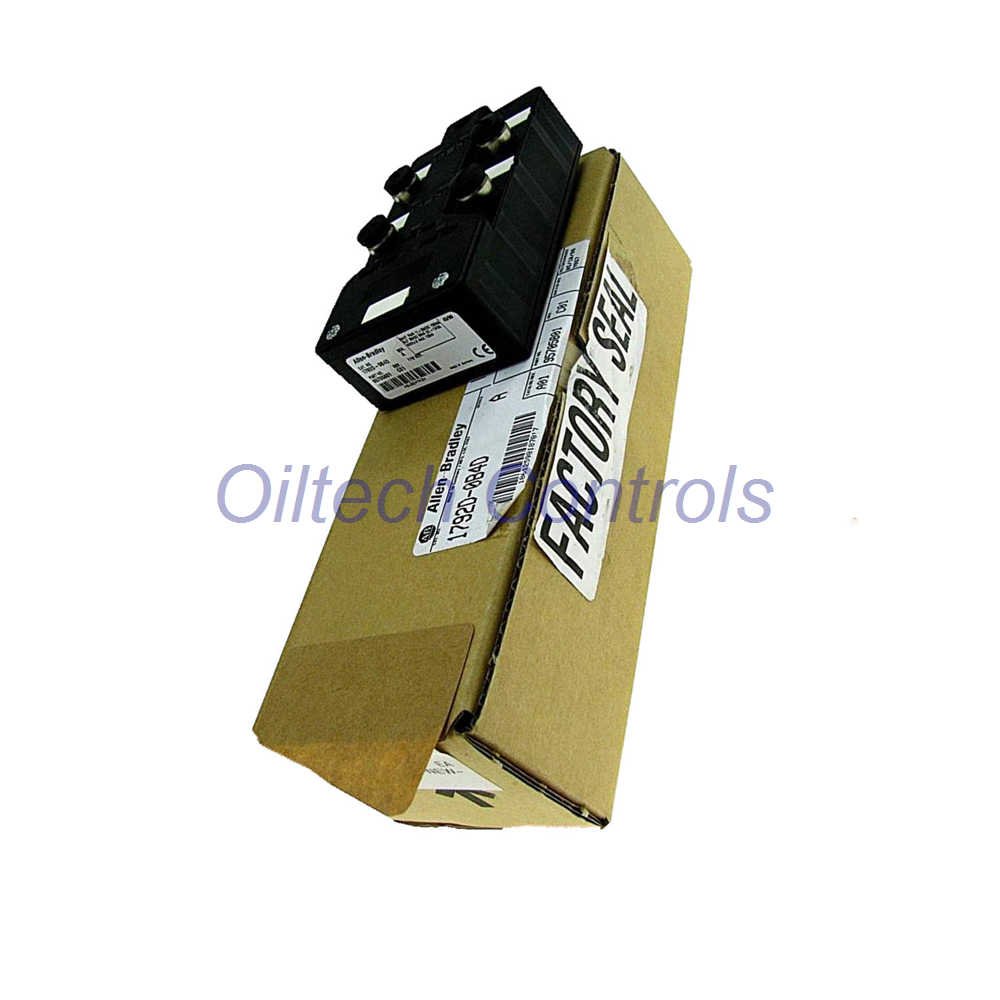

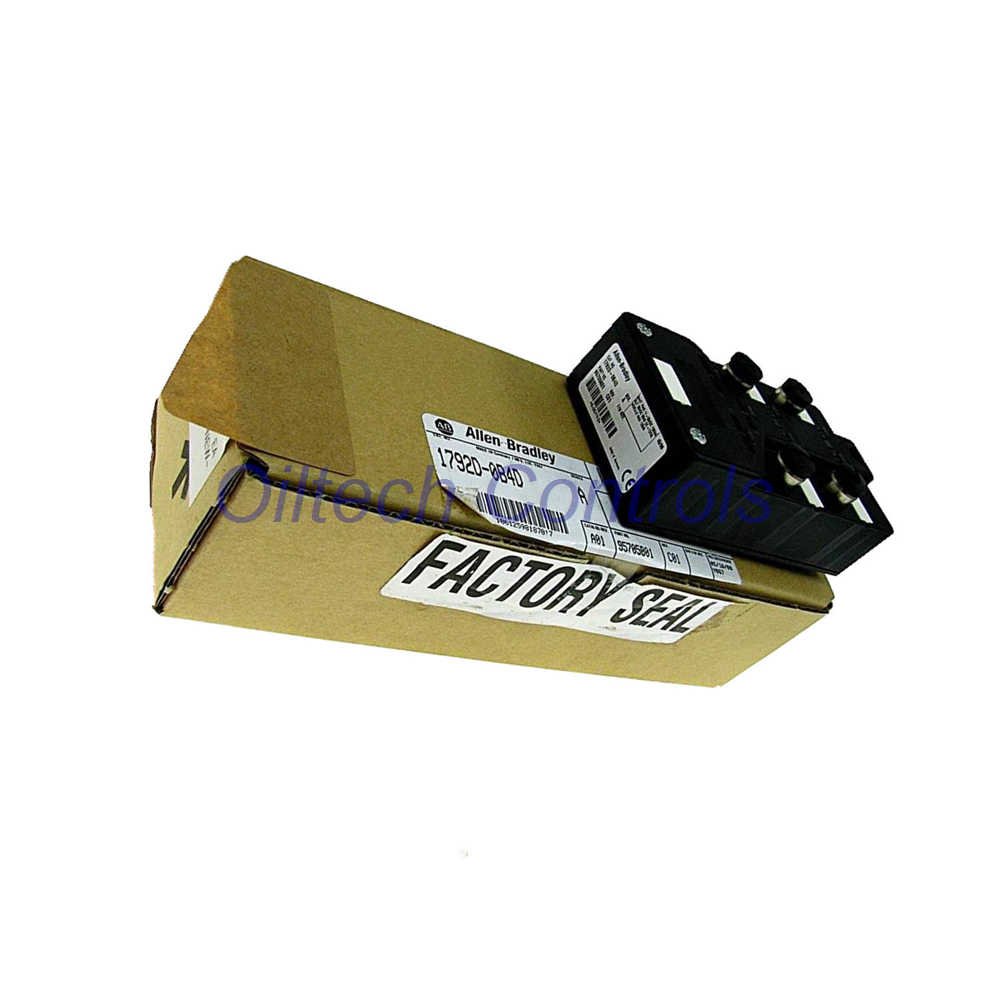

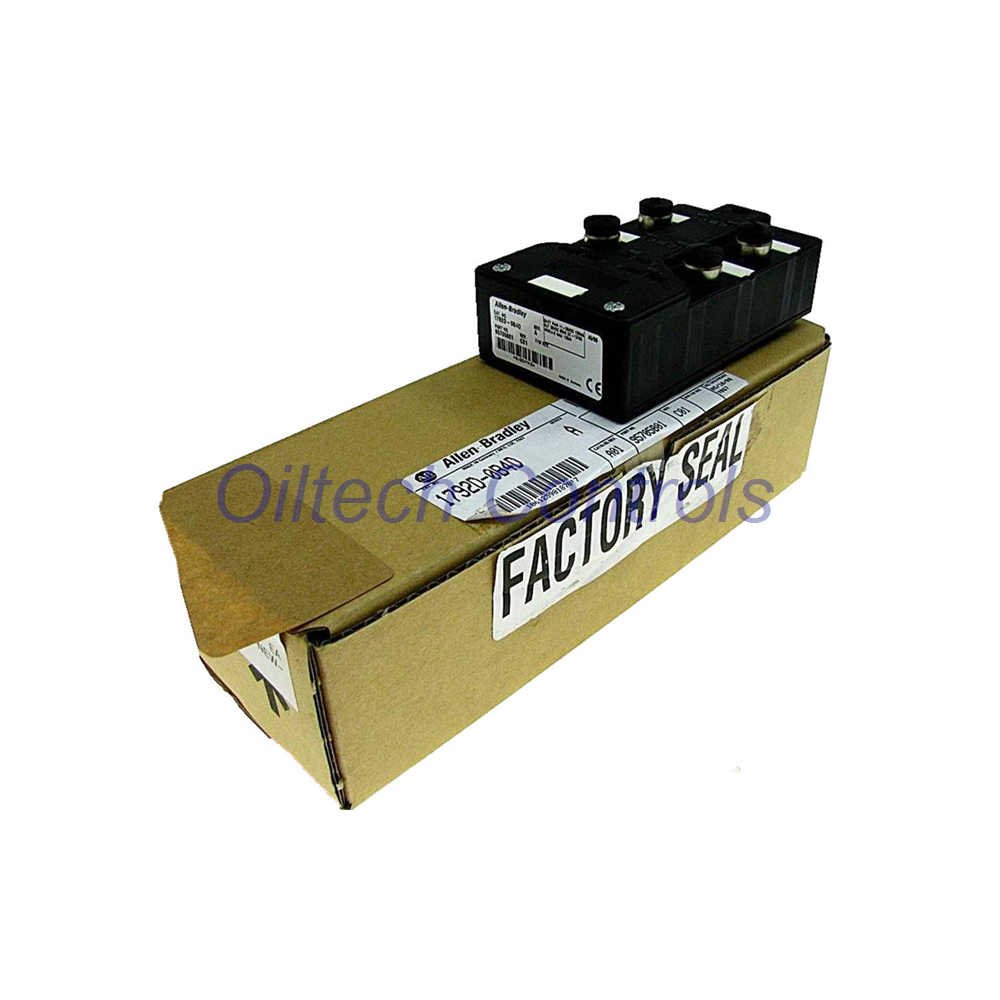

1792D-0B4D Allen Bradley ArmorBlock DeviceNet 4-Channel Output

Technical Framework & Data

• Brand: Allen Bradley
• Model: 1792D-0B4D
• Product Line: 1792D ArmorBlock MaXum I/O
• Network Protocol: DeviceNet
• Output Configuration: 4-Channel Sourcing Type
• Input Voltage: 24 V DC
• Current Capacity: 2A per output (4A total module load)
• Surge Tolerance: 4A for 10 ms intervals
• Leakage Current: ≤ 1.5 mA
• Connection Interface: M12 I/O and Network connectors
• Node Addressing: Manual Rotary Node Selector
• Protection Rating: IP67 (Dust-tight and water immersion resistant)
• Weight: 0.88 lbs (0.40 kg)

Oiltech Controls’s Insight

• The 1792D-0B4D offers superior resistance to mechanical vibration and liquid ingress in on-machine applications.
• Engineers appreciate the built-in local logic which enables faster response times at the device level.
• This Allen Bradley module eliminates the need for expensive electrical cabinets by utilizing the rugged IP67 enclosure.
• The 1792D-0B4D suits automotive assembly lines, food processing plants, and material handling systems perfectly.
• Its M12 connector standard simplifies field wiring and reduces potential maintenance downtime in high-cycle operations.
• For urgent stock availability, email info@oiltechcontrols.com or message +86 158 8020 0923.

Hardware Compatibility & Logistics

• Compatible with all standard DeviceNet scanners and Allen Bradley SLC or ControlLogix systems.
• Interfaces seamlessly with pneumatic valves, hydraulic solenoids, and heavy-duty motor starters.
• Includes a 12-month standard warranty on all 1792D-0B4D units.
• Fast processing ensures dispatch within 24 to 28 hours from our central warehouse.
• Reliable international delivery provided via FedEx, UPS, or DHL express services.

Expert FAQ & Procurement Guide

• How do I resolve duplicate node address errors on the DeviceNet network?
• Verify the rotary switches on the 1792D-0B4D match your system map and cycle the power.
• Does this module support high-speed switching for inductive loads?
• Yes, the 2A rating and 4A surge capacity allow it to drive large solenoid valves effectively.
• What is the primary benefit of the “Sourcing” output type in this model?
• Sourcing outputs provide positive voltage to the load, which is the safety standard for most North American machinery.
• Can the 1792D-0B4D operate without a protective enclosure?
• The IP67 rating permits direct mounting on machine frames even in areas with heavy coolant spray.
• What cable type should I select for the M12 network port?
• Use shielded thin or thick DeviceNet media to ensure high signal integrity over long distances.
