1792D-16BVT0D Allen-Bradley ArmorBlock MaXum 16-Input DeviceNet Module

1792D-16BVT0D | Allen-Bradley ArmorBlock MaXum Distributed Input Module

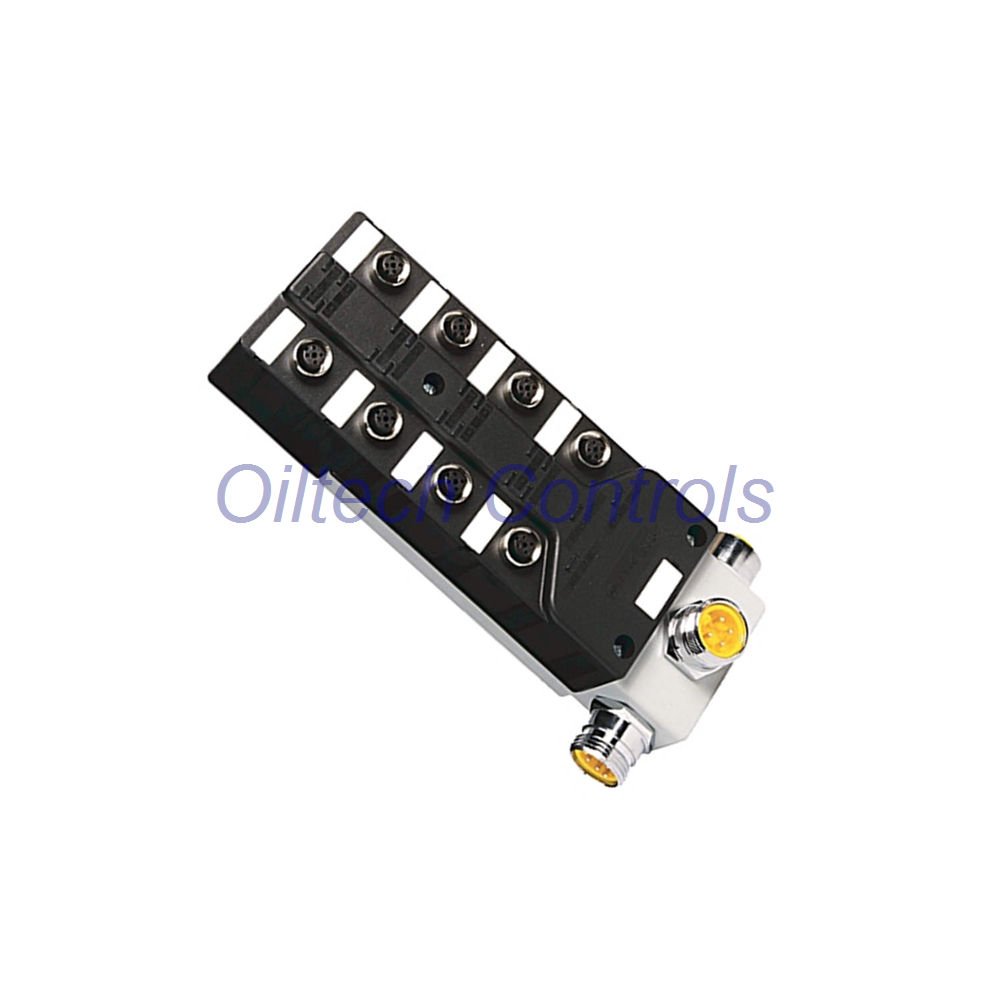

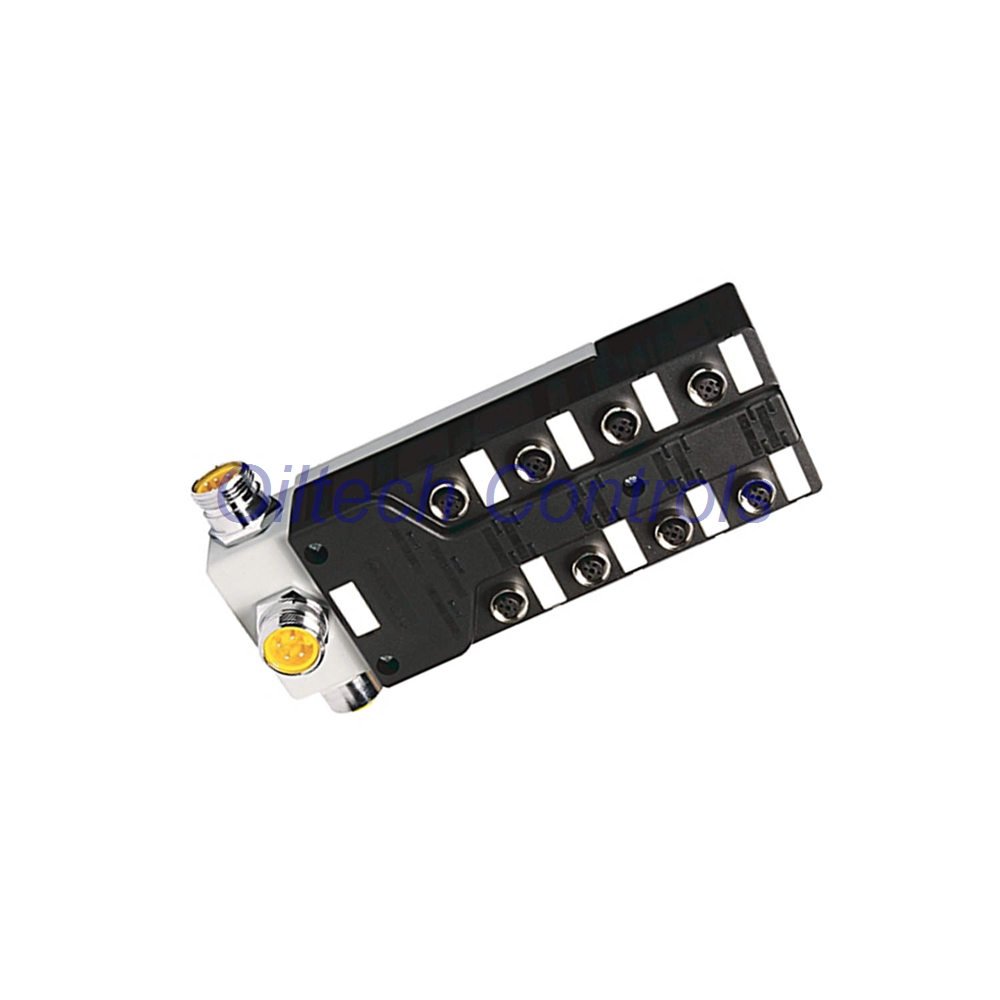

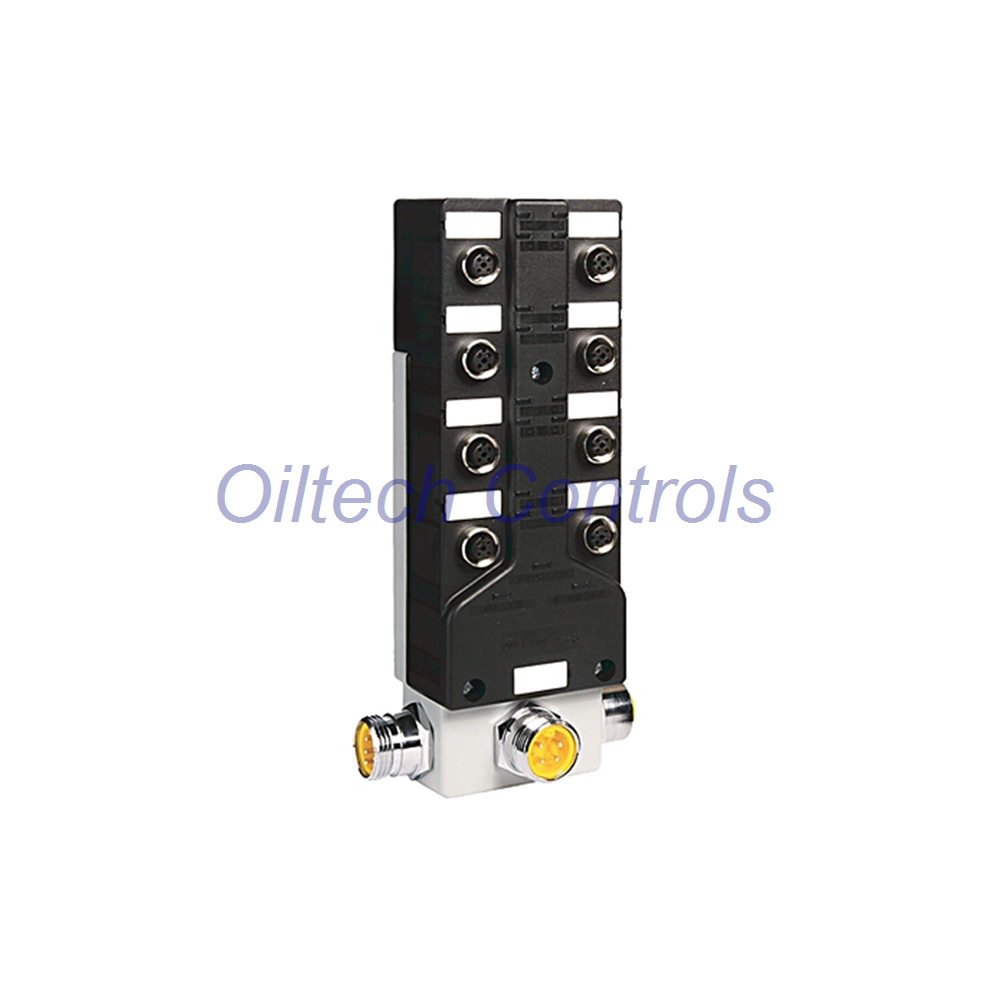

The 1792D-16BVT0D represents a robust solution for on-machine distributed I/O architecture. Designed by Allen-Bradley for the ArmorBlock MaXum series, this module functions as a stand-alone 24VDC node on DeviceNet networks. It eliminates the need for expensive control cabinets by offering an IP67-rated housing that mounts directly to machinery. Engineering teams utilize the 1792D-16BVT0D to bridge field sensors—including 3-wire PNP/NPN and dry contact devices—directly to PLC or SLC programmable controllers via high-speed network scanners. For technical support, contact Oiltech Controls at info@oiltechcontrols.com or via WhatsApp: +86 158 8020 0923.

Technical Specifications & Interface Matrix

• Manufacturer: Allen-Bradley
• Model Number: 1792D-16BVT0D
• Product Line: 1792D ArmorBlock MaXum I/O
• Input Count: Sixteen (16) Universal Sinking/Sourcing points
• Voltage Range: 10.0 to 25.0 VDC On-state
• Current Range: 2 mA to 10 mA On-state
• Network Connection: DeviceNet (125K, 250K, 500Kbps auto-baud)
• Enclosure Rating: IP67 (Washdown and dust-tight)
• Connector Type: M12 / Micro-Style seals
• Operating Temp: -25°C to 60°C (-13°F to 140°F)
• Indicators: Bi-color Net/Mod status, Logic status, and Tri-color Point LEDs

System Compatibility & Application Reach

• Primary integration with Allen-Bradley PLC-5, ControlLogix, and SLC 500 systems using DeviceNet scanner modules.
• Ideal for conveyor systems, automotive assembly lines, and high-vibration packaging machinery.
• Compatible with 3-wire or dry contact PNP/NPN sensors and 8-4 wire sensor configurations.
• Suitable for washdown environments requiring IP67 protection without external protective shrouding.
• Supports long-distance deployments up to 500 meters using thick trunk cable at 125Kbps.

Shipping, Warranty & Logistics

• Dispatch Time: Fast shipping within 24-28 hours from order confirmation.
• Shipping Carriers: Global express delivery via FedEx, UPS, or DHL.
• Warranty: Comprehensive 12-month quality assurance on all units (Standard Terms Apply).
• Packaging: Sealed anti-static industrial packaging to prevent transit damage.

Frequently Asked Questions (FAQ)

• How do I configure the baud rate for the 1792D-16BVT0D?
• The module supports auto-baud rate detection; ensure the network master is active and the cable lengths do not exceed standards for your target speed.
• Can I use this module with NPN sensors in a predominantly PNP system?
• Yes, the 1792D-16BVT0D features universal sinking/sourcing inputs, but ensure the common wiring logic matches your sensor specifications.
• What is the primary advantage of the Point LED tri-color indicator?
• It provides immediate visual feedback: yellow, orange, and red status helps technicians distinguish between active signals and faults without a laptop.
• Expert Selection Tip: When should I choose the MaXum series over standard ArmorBlock?
• Select MaXum when you require a higher density of inputs (16 points) in a single compact node and need specialized diagnostics like open-wire detection.
• Is an external power supply required for the inputs?
• The module requires 24VDC auxiliary power; ensure your DeviceNet power supply has sufficient headroom for the 200mA maximum current draw.
