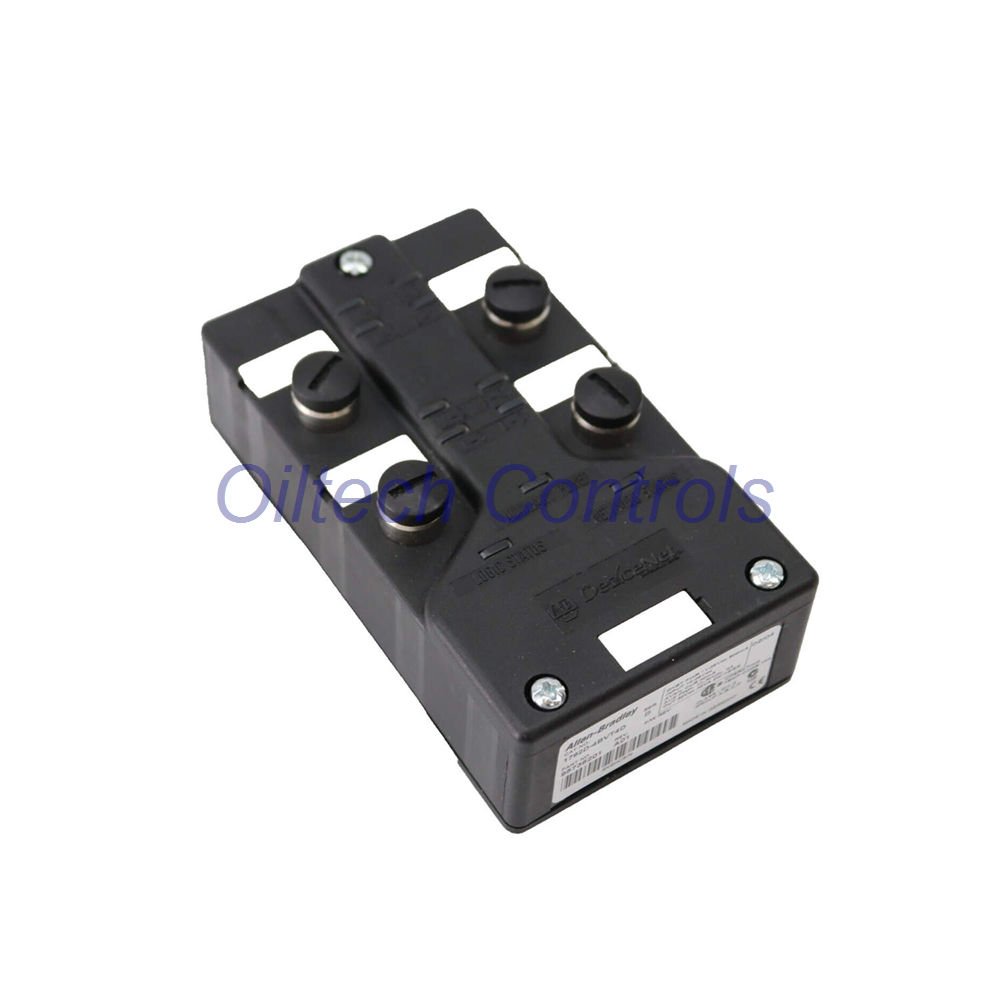

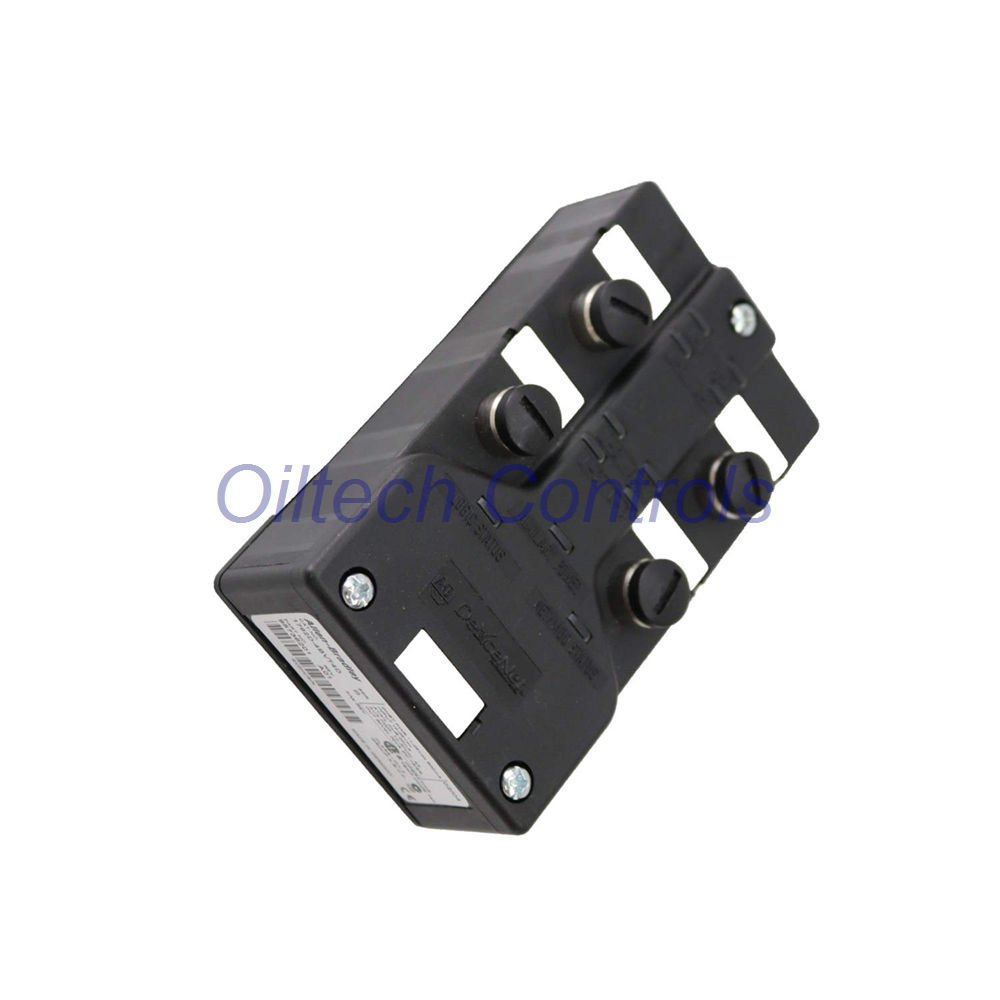

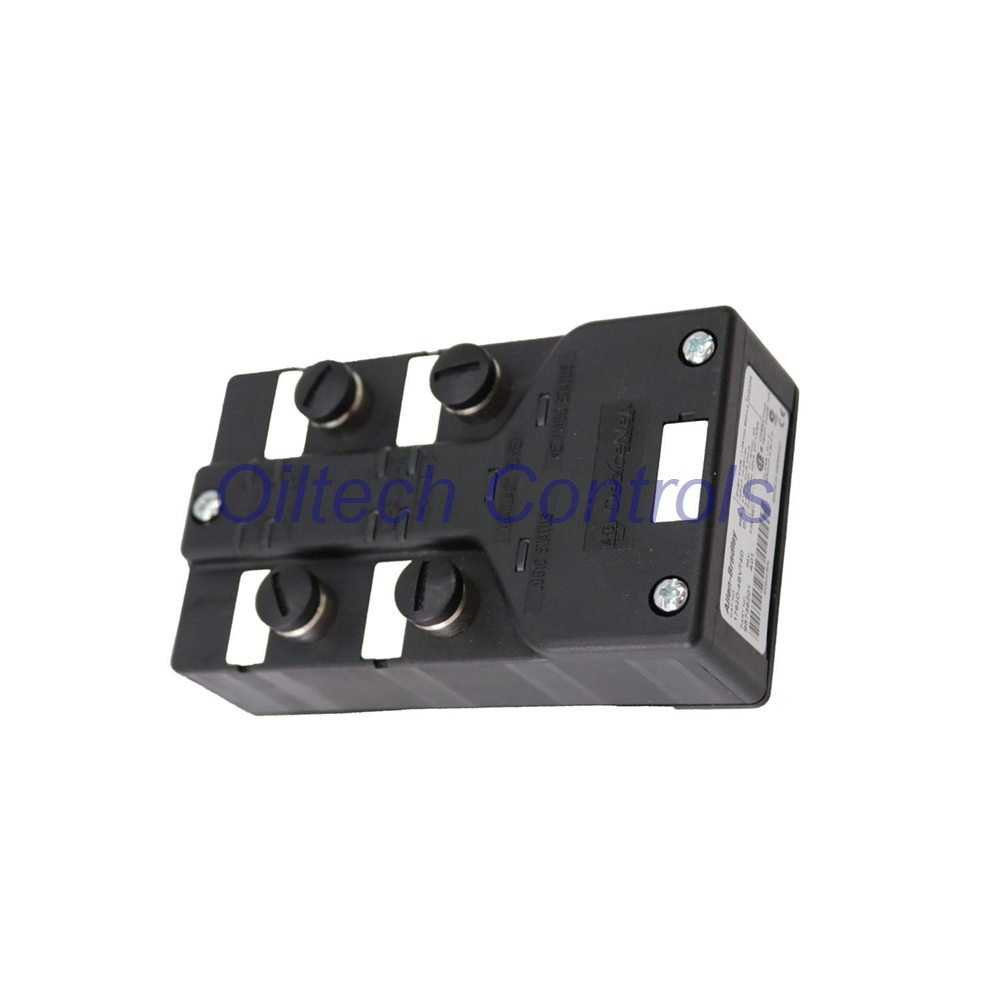

Allen-Bradley 1792D-4BVT4D ArmorBlock MaXum DeviceNet Module
The Allen-Bradley 1792D-4BVT4D serves as a robust standalone solution for distributed I/O control over DeviceNet networks. This ArmorBlock MaXum series module integrates four inputs and four outputs within a sealed, machine-mount housing that eliminates the need for expensive electrical enclosures. Its 24V DC architecture supports flexible PNP or NPN input configurations, while the high-current outputs drive up to 1 Amp each for demanding actuator loads.
Technical Parameters Matrix
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1792D-4BVT4D
- Network Interface: DeviceNet (125k, 250k, 500k kbps auto-baud)
- Input Channels: 4 Points (24V DC PNP Sourcing or NPN Sinking)
- Output Channels: 4 Points (24V DC, Max 1 Amp per point)
- Input On-State: 10-25V DC at 2-10 mA
- Input Off-State: 0-5V DC (Minimum 1.5 mA leakage current)
- Sensor Source Current: 100 mA per connection
- Diagnostics: Open wire, short circuit, and no-load detection
- Housing Rating: Sealed industrial housing (No enclosure required)
- Weight: 0.69 lbs (0.31 kg)
Oiltech Controls’s Insight
- The 1792D-4BVT4D excels in “on-machine” applications where space is limited and harsh conditions exist.
- Engineering Note: The Y-splitter cable interface allows for high-density wiring but requires precise cable management.
- Application Range: Ideal for automotive assembly lines, material handling conveyors, and food/beverage packaging machinery.
- Diagnostic Advantage: Integrated short-circuit and open-wire sensing significantly reduces Mean Time To Repair (MTTR).
- Compatibility: Seamlessly integrates with Allen-Bradley SLC 500, PLC-5, and ControlLogix systems via DeviceNet scanners.
- For procurement or technical help, contact info@oiltechcontrols.com or WhatsApp at +86 158 8020 0923.
Integration & Deployment Guide
- Step 1: Assign a unique Node Address before mounting.
- Step 2: Secure the 1792D-4BVT4D directly to the machine frame or cable base.
- Step 3: Utilize standard cord sets (ordered separately) for I/O and network drops.
- Network Distance: 1600 ft at 125 kbps; 600 ft at 250 kbps; 330 ft at 500 kbps.
- Mounting: Standalone design avoids the thermal buildup associated with dense cabinet clusters.
Shipping & Warranty Terms
- Processing Time: Ships within 24-28 hours.
- Warranty: 12-month standard industrial warranty coverage.
- Express Carriers: Worldwide delivery via FedEx, UPS, and DHL.
- Package Contents: One 1792D-4BVT4D module and factory installation instructions.
Professional FAQ & Selection Guidance
- Can the inputs on the 1792D-4BVT4D handle different sensor types?
- Yes, the module is versatile and accepts both PNP (sourcing) and NPN (sinking) 24V DC sensors.
- What happens if a wire is cut or a sensor fails?
- The built-in “Open Wire” and “No Load” diagnostics will trigger a fault bit on the DeviceNet network for fast troubleshooting.
- Is this module suitable for washdown environments?
- While the housing is sealed, we recommend checking the specific IP rating of your connectors to ensure full environmental protection.
- Selection Guidance: How do I choose between this and a standard ArmorBlock?
- Choose the MaXum 1792D-4BVT4D if you require a mix of inputs and high-current (1A) outputs in a single compact footprint.
- Experience Tip: Do I need a specific power supply for the I/O?
- Ensure your 24V DC power supply can handle the cumulative load of all four 1A outputs to prevent voltage drops.
