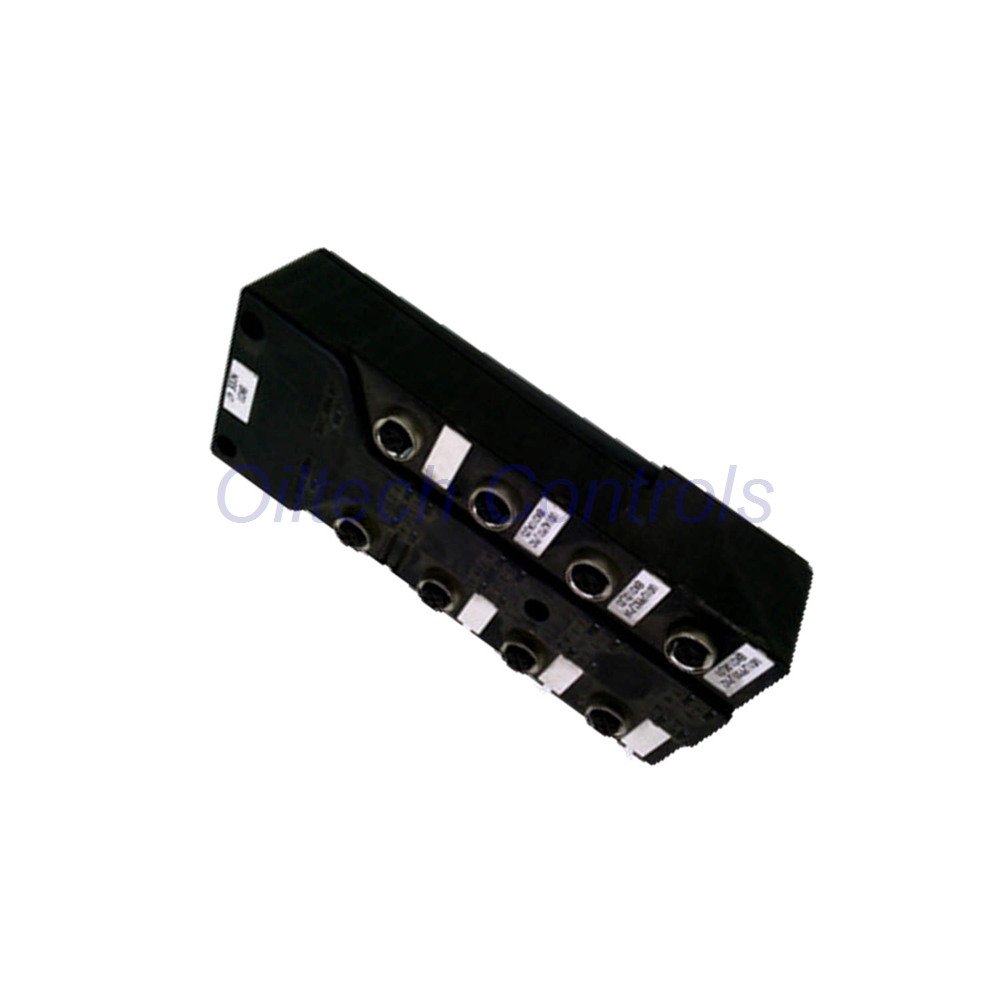

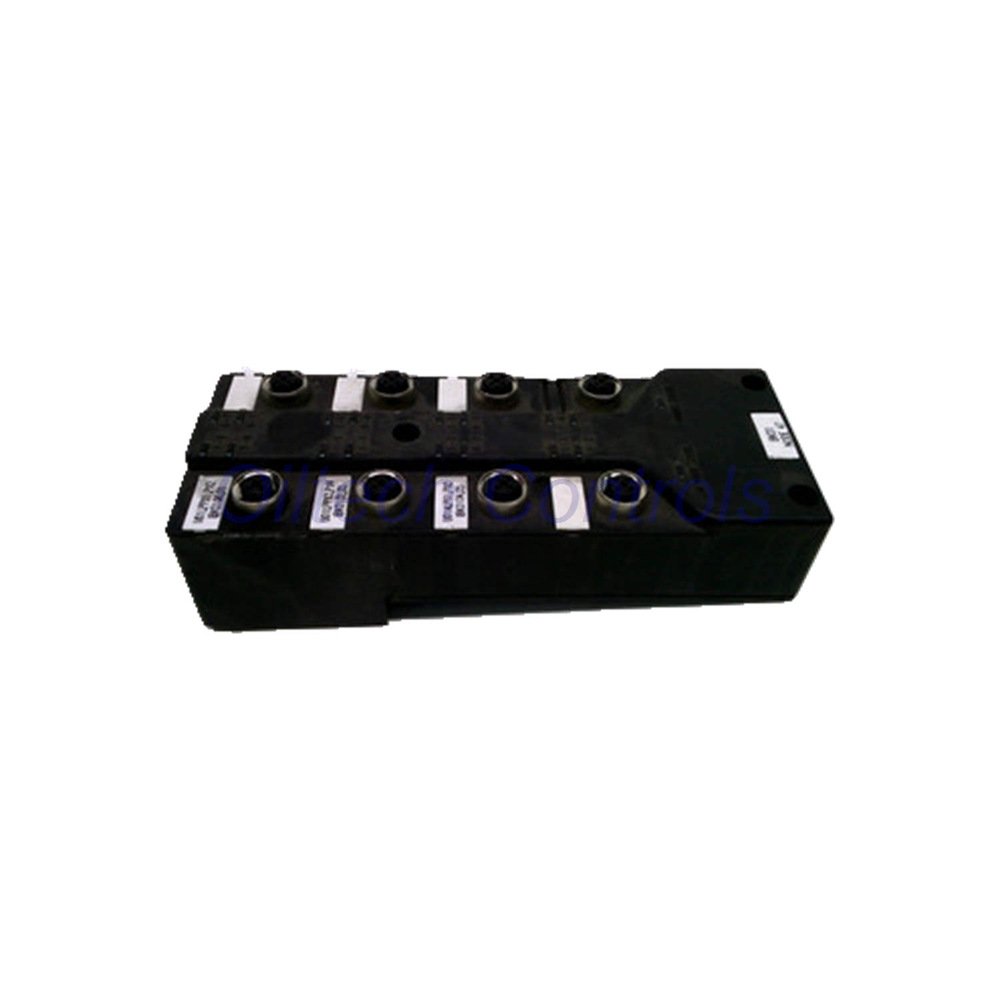

1792D-8BIO8E Allen-Bradley ArmorBlock MaXum Standalone I/O Module
The 1792D-8BIO8E functions as a rugged, standalone I/O solution specifically designed for DeviceNet networks in harsh industrial environments. Engineers utilize this Allen-Bradley ArmorBlock MaXum module to bridge field devices with 16 total channels of high-performance digital communication. This specific hardware allows for direct machine mounting to save space and reduce wiring complexity within your automated system.
Core Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model Number: 1792D-8BIO8E
- Product Line: ArmorBlock MaXum I/O Series
- Input Channels: 8 Sinking Channels (24V DC)
- Output Channels: 8 Self-Protected Channels (24V DC)
- Current Capacity: 0.3 Amps maximum per output channel
- Power Source: Internal power drawn directly from the DeviceNet network
- Noise Immunity: Loopback connections integrated for enhanced signal stability
- Weight: 1.19 lbs (0.54 kg) for compact machine mounting
- Compliance: Meets Council Directive 89/336/EEC and EN 50082-2 standards
Environmental and Anti-Interference Capabilities
- The 1792D-8BIO8E features a high resistance to industrial electromagnetic noise disturbances.
- The internal circuitry manages local logic control to reduce lag during data processing.
- The hardware provides comprehensive short-circuit protection with immediate notifications at the block level.
- Engineers must terminate all input and output cables properly to maintain maximum signal integrity.
- The module supports polled, cyclic, and change-of-state connection types for flexible data exchange.
- Sealed connectors prevent leaks and protect sensitive electronics from common factory floor contaminants.
Installation and Setup Guidelines
- Mount the 1792D-8BIO8E module directly on the machine to eliminate long cable runs.
- Securely tighten all caps and connectors to ensure the unit achieves its rated environmental seal.
- Connect return wires together in a loopback formation to optimize the module’s noise immunity.
- Configure the unit as a Client I/O to enable cyclic data production at specific rates.
- Maintain proper grounding practices to protect the ESD-sensitive internal components during the mounting process.
- Verify the 24V DC supply voltage remains within the specified range for stable operation.
Packing List and Shipping Logistics
- One (1) Brand New Allen-Bradley 1792D-8BIO8E Standalone Module.
- Standard industrial protective packaging to prevent damage during international transit.
- Fast worldwide delivery via reliable carriers including FedEx, UPS, and DHL.
- For bulk orders or urgent shipping quotes, contact info@oiltechcontrols.com today.
Expert FAQ and Purchasing Guide
- How does the 1792D-8BIO8E handle output overloads?
- The module includes self-protection features that automatically detect short circuits and notify the master device.
- Can I use this module without an external power supply?
- Yes, the unit draws its required operating power internally from the connected DeviceNet network cable.
- What is the primary benefit of the ArmorBlock MaXum design?
- This design allows for on-machine mounting, which significantly reduces wiring costs and simplifies overall system maintenance.
- How do I ensure the best signal quality in high-noise areas?
- Always use the loopback connection method and ensure all connectors are tightened to the manufacturer’s specifications.
- Why should I choose Oiltech Controls for this module?
- We provide expert technical support and fast logistics to minimize downtime in your industrial automation systems.
