1794-IB8 – Flex I/O DC Input Module

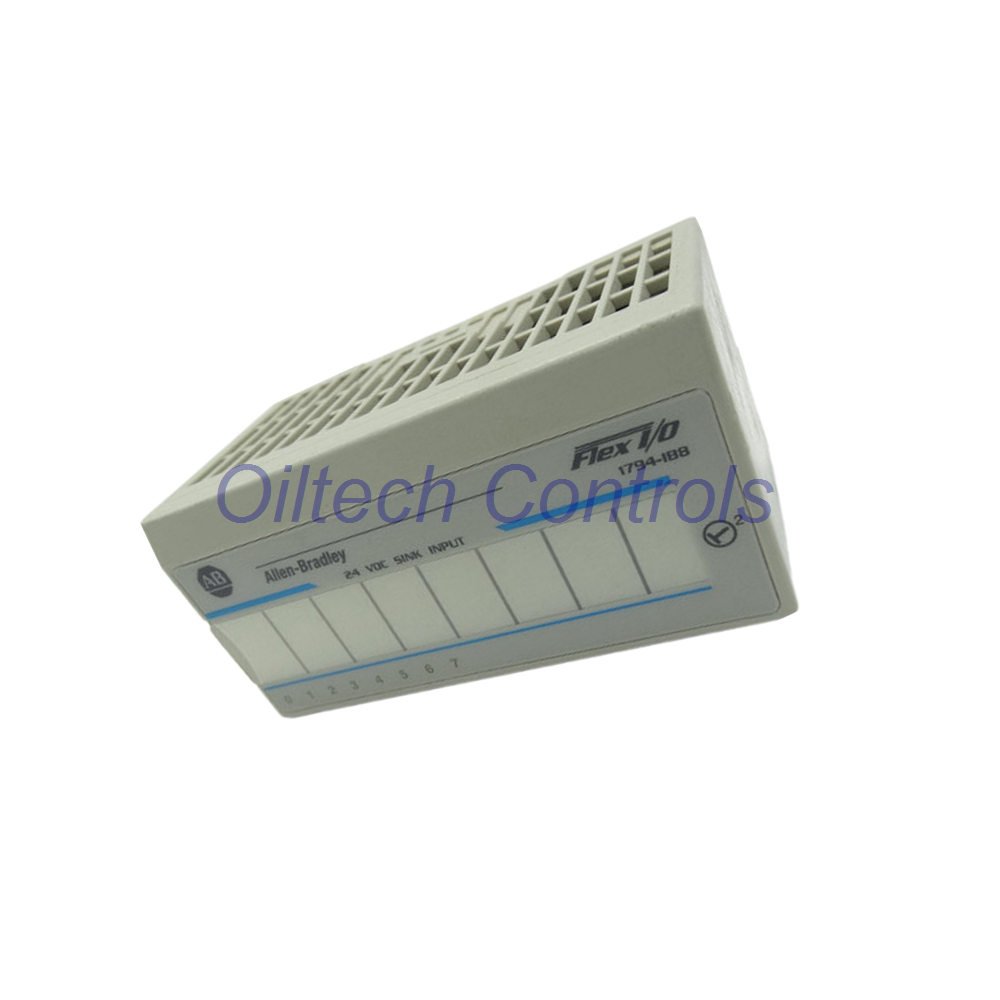

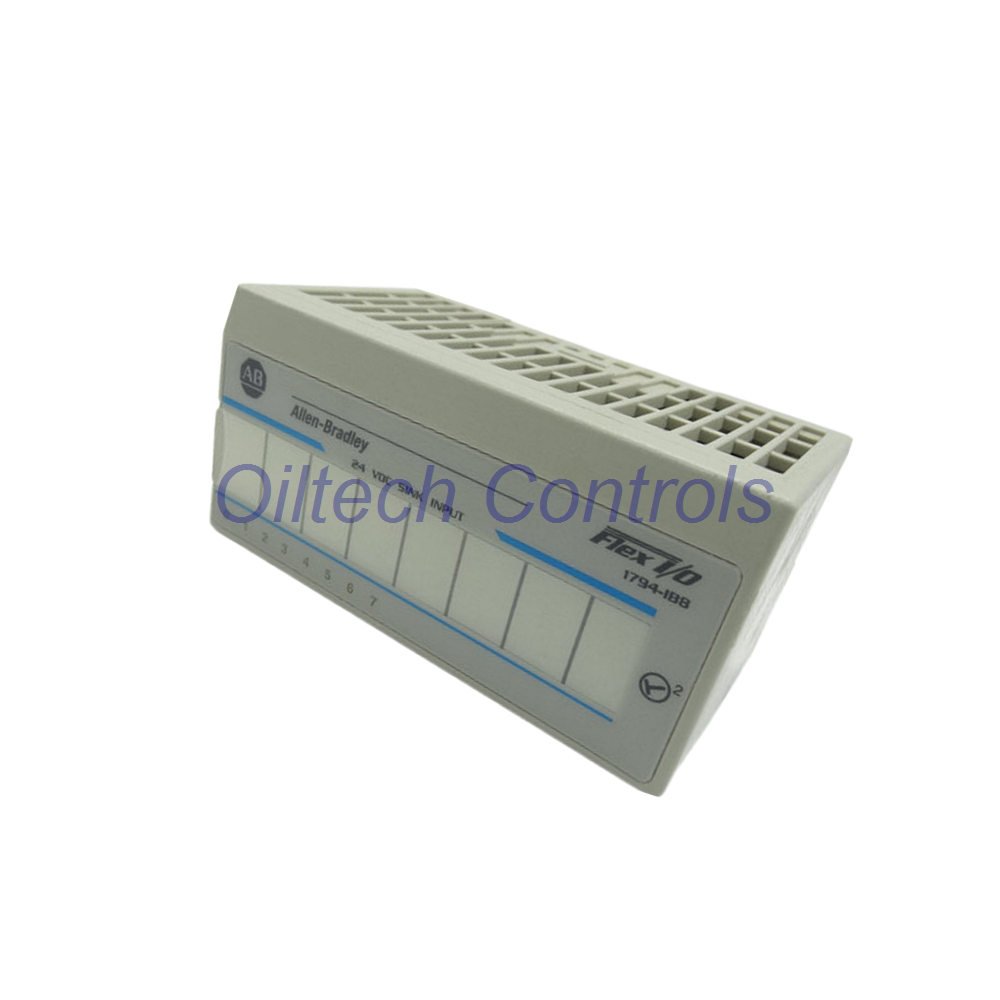

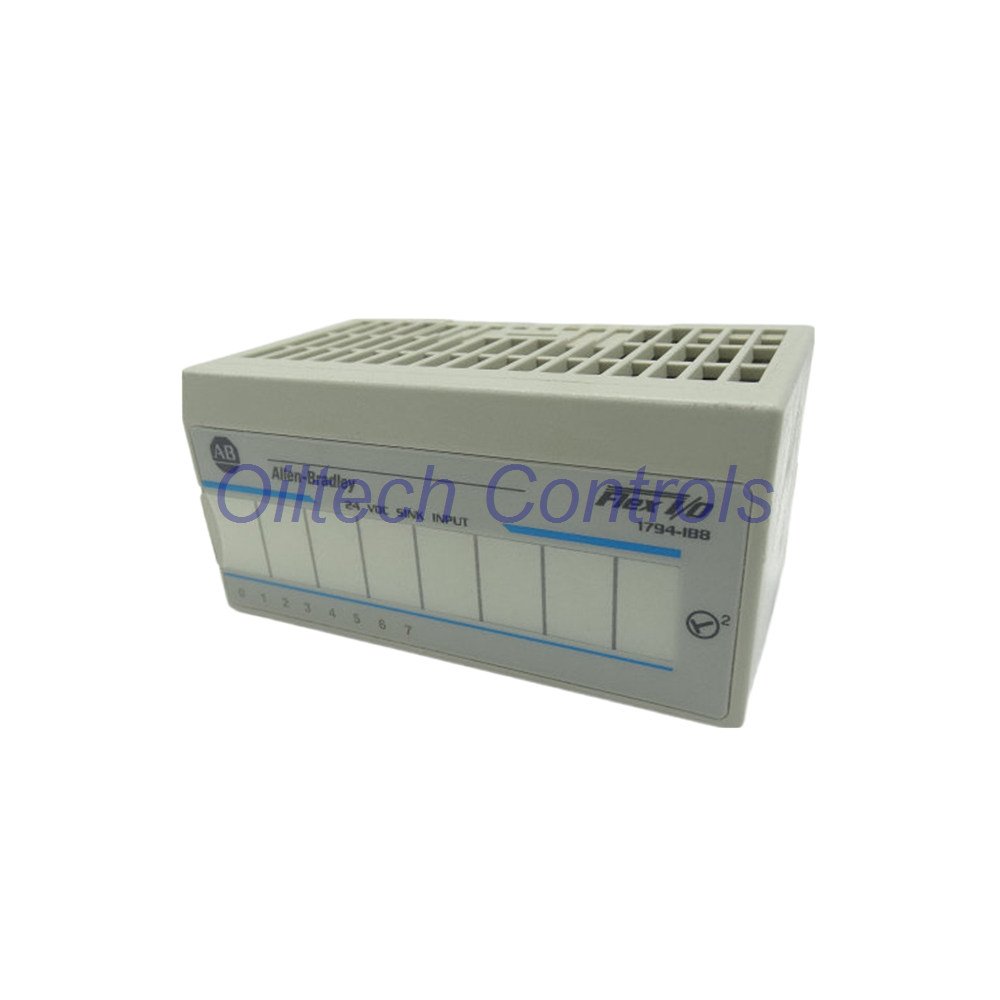

1794-IB8 is a digital DC input module from the Allen‑Bradley Flex I/O 1794 series. It provides 8 current‑sinking inputs with 24V DC nominal operation. The module supports multiple network protocols: EtherNet/IP, ControlNet, DeviceNet, and Universal Remote I/O. Its terminal base (1794‑TB3 or TB3S) allows live insertion and removal – no system power‑down needed.

Oiltech Controls’s Review

From our field experience, the 1794‑IB8 is a workhorse for distributed I/O applications. Its 4.6 kΩ input impedance works well with most 24V DC sensors. The 16 yellow LEDs give instant per‑channel status – crucial for troubleshooting. We often see this module in packaging lines, assembly stations, and conveyor systems where high‑density DC inputs are required. The XT version (extended temp) is available for harsh environments – contact us for options.

Technical Specifications – 1794-IB8

• Manufacturer: Allen‑Bradley / Rockwell Automation
• Product Type: Flex I/O Digital Input Module
• Inputs: 8 current‑sinking, 24V DC nominal
• On‑state voltage: 10 – 31.2V DC
• On‑state current: 2.0 – 12.0 mA
• Off‑state voltage: ≤5V DC ; Off‑state current ≤1.5 mA
• Nominal input impedance: 4.6 kΩ
• Flexbus current: 20 mA @ 5V DC
• Power dissipation: 3.5 W max @ 31.2V DC
• Weight: 0.19 lbs (0.09 kg)

Compatible Networks & Bases

• Supports: EtherNet/IP, ControlNet, DeviceNet, Universal RIO
• Terminal base units: 1794‑TB3 or 1794‑TB3S
• Mounting: standard DIN rail (35 mm)
• Live insertion/removal – no system restart required

Environmental & Diagnostics

• Operating temperature: 0…55 °C (32…131 °F)
• Relative humidity: 5…95% (non‑condensing)
• Status indicators: 16 yellow LEDs (one per channel)
• Diagnostic (D) and extreme environment (XT) versions available
• Reduces panel and maintenance costs

Typical Applications

• Packaging machine sensor input
• Assembly line presence detection
• Conveyor system photo‑eye interface
• Distributed I/O with ControlLogix or CompactLogix
• Replacement for obsolete 1771‑IB or 1746‑IB modules

Professional FAQ – 5 Experience‑Based Answers

• Q1: Can I mix 1794‑IB8 with analog modules on the same Flex I/O rack?
  Yes. The Flexbus handles mixed digital/analog modules. Just ensure total Flexbus current (20 mA per module) does not exceed the power supply capacity.
• Q2: My 1794‑IB8 inputs read erratic – what could cause this?
  Check the sensor power supply – many field devices share the same 24V DC source. Also verify the input impedance matches your sensor type. For 2‑wire sensors, off‑state current may exceed 1.5 mA – consider using a 1794‑IB16 with higher off‑state tolerance.
• Q3: What’s the difference between standard, D, and XT versions?
  Standard is general purpose. D version adds diagnostic LEDs for short/open wire detection. XT version extends operating temperature to –20…70 °C and has conformal coating for humidity/chemical resistance.
• Q4: Can I use this module with a DeviceNet network?
  Yes. You need a 1794‑ADN DeviceNet adapter. The 1794‑IB8 sits behind the adapter and communicates via the Flexbus.
• Q5: How do I select between 1794‑TB3 and TB3S?
  TB3 is standard screw terminal. TB3S has spring‑clamp terminals for faster wiring – choose based on your wiring preference and vibration environment.

Selection Tips – Quick Guide

• ✔ Need 8 DC sinking inputs with 24V sensors? – 1794‑IB8 fits.
• ✔ Using EtherNet/IP or ControlNet? – Works with appropriate adapter.
• ✔ For high‑density (16 inputs) choose 1794‑IB16.
• ✔ For AC inputs, consider 1794‑IA8 or IA16.
• ✔ Always check total Flexbus current when populating a rack.
