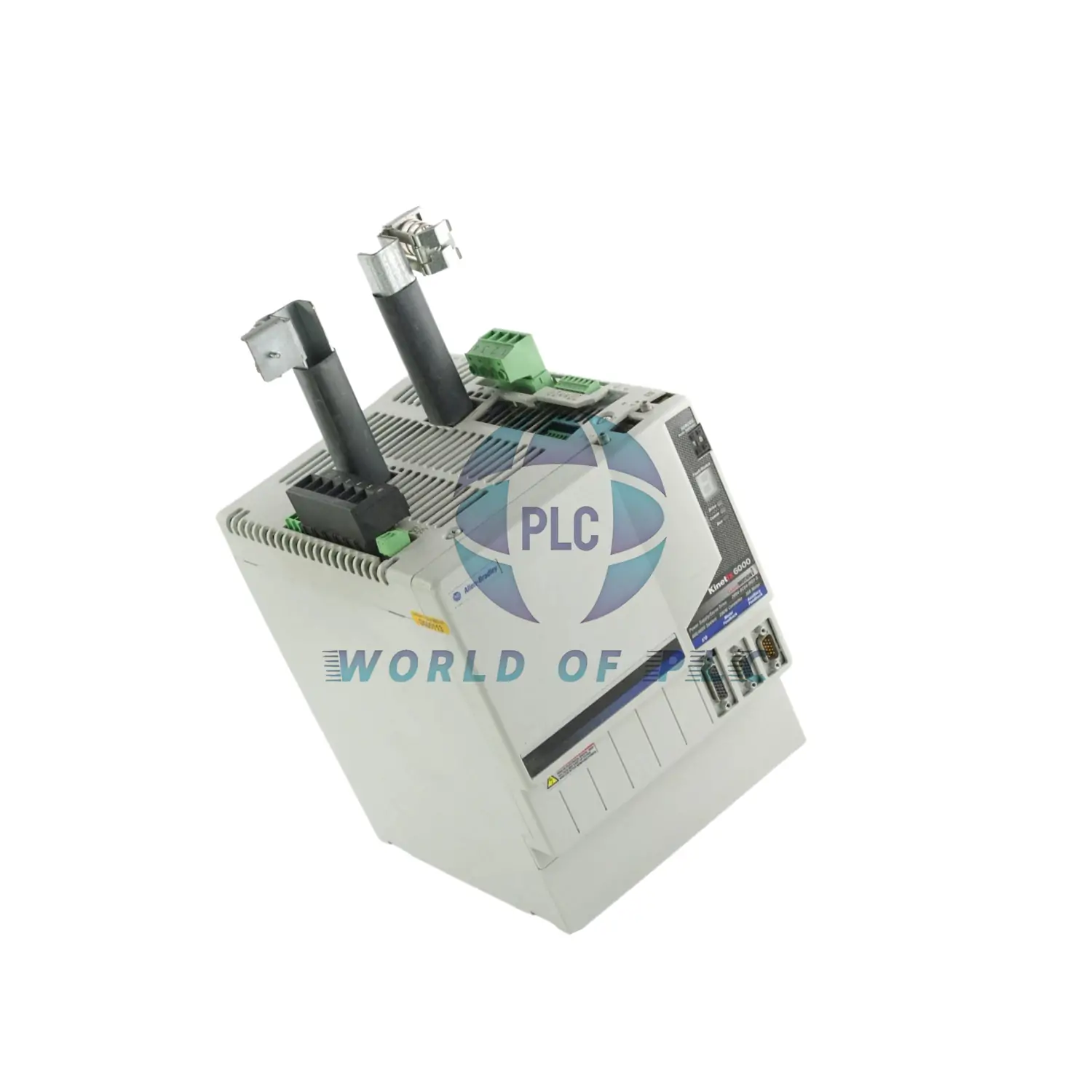

2094-BM05-S Allen-Bradley Kinetix 6000 Axis Module

Allen Bradley 2094-BM05-S Kinetix 6000 Axis Module – 22kW High Power

Industrial Powerhouse

• Model: 2094-BM05-S Kinetix 6000
• 22kW continuous power output
• 400V 3-phase operation
• 98% energy efficiency
• ISO 13849-1 SIL 3 safety rated

Technical Specifications

• Current: 34.6A continuous (69.2A peak)
• Response: 25ms Safe Torque-Off
• Control: 4kHz PWM frequency
• Capacity: 1175μF capacitance
• Weight: 11 lbs (4.98 kg)

Advanced Features

• 500Hz velocity loop control
• 1300Hz current loop response
• Up to 200% peak current capacity
• Logix platform integration
• 3 modules per power rail

5 Expert Answers

• Q: How many modules fit on one rail?
  A: Up to 3 modules per 8-axis rail
• Q: What’s the safety response time?
  A: Under 25ms torque cutoff
• Q: Can it handle sudden load changes?
  A: Yes – 200% peak current capacity
• Q: What control systems work with it?
  A: Fully integrates with Logix platform
• Q: Is external cooling required?
  A: No – integrated thermal management

Package Contents

• 1x 2094-BM05-S axis module
• Installation documentation
• 12-month performance warranty
