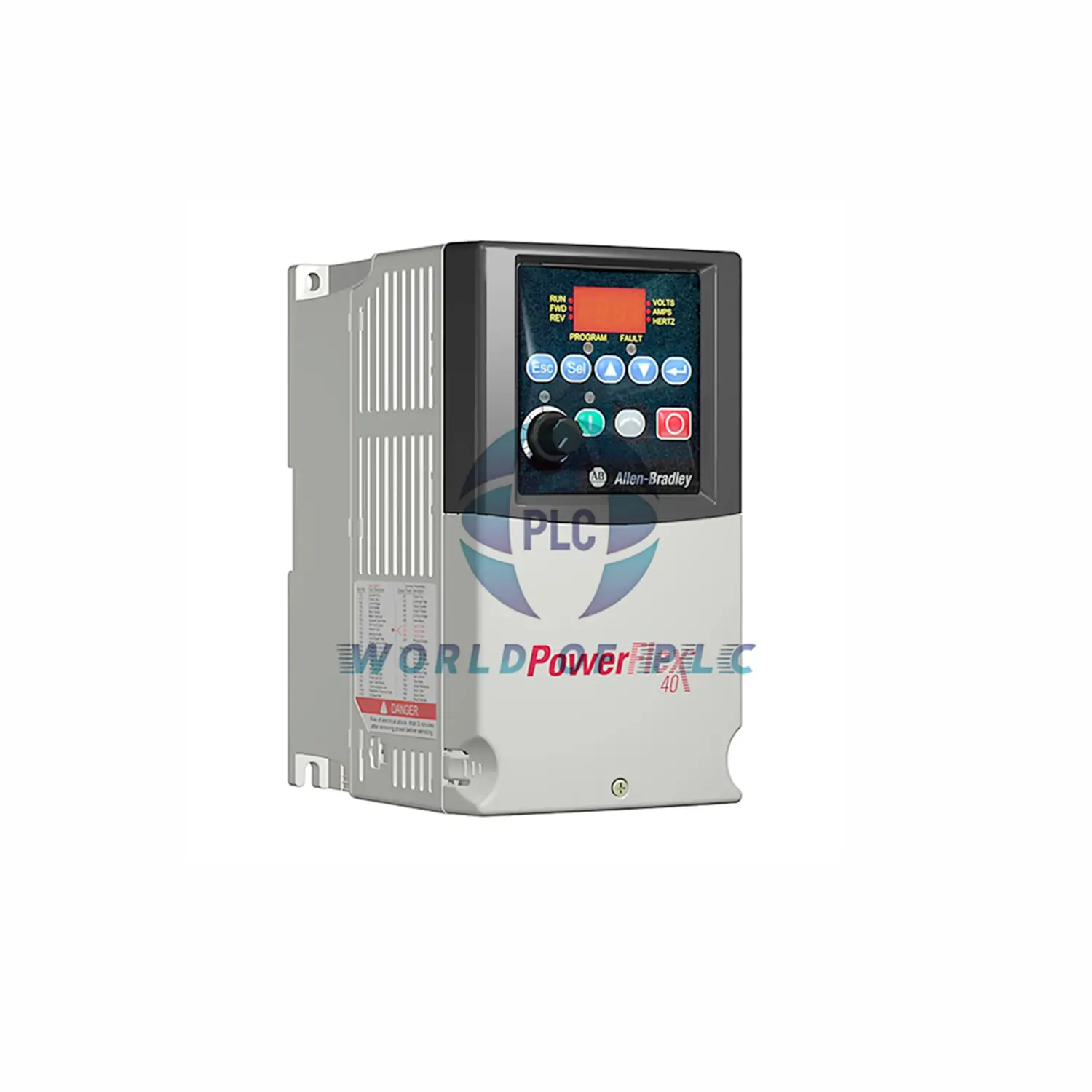

Allen-Bradley 22B-B017C104 PowerFlex 40 Drive – 5HP Heavy-Duty Motor Control
Industrial-Grade Performance
- 5HP (17.5A output) for demanding applications
- 240V AC 3-phase power input
- IP66/NEMA 4X rugged enclosure
- Built-in keypad control interface
- RS-485 communication for system integration
- Works with DeviceNet & EtherNet/IP networks
Technical Specifications
- Carrier Frequency: 2-16kHz adjustable
- Short Circuit Rating: 100,000A symmetrical
- Power Dissipation: 180W total (150W external)
- Operating Temp: -10°C to 40°C (14°F to 104°F)
- Storage Temp: -40°C to 85°C (-40°F to 185°F)
- Humidity Range: 0-95% non-condensing
- Fuse Rating: 30A required
- Wireless Option: Bluetooth compatible
- Network Support: DSI protocol devicesy
Professional FAQs
- Can this drive handle outdoor conditions?
- Yes, IP66 rating protects against dust and water jets.
- What networks does it support?
- DeviceNet, EtherNet/IP, ControlNet via optional cards.
- Is Bluetooth included?
- No, but compatible with Bluetooth adapters.
- What fuse should I use?
- 30A time-delay fuse recommended.
- Can I adjust the switching frequency?
- Yes, adjustable from 2-16kHz.
Order & Delivery
- Fast global shipping via FedEx/UPS/DHL
- 12-month reliability guarantee
