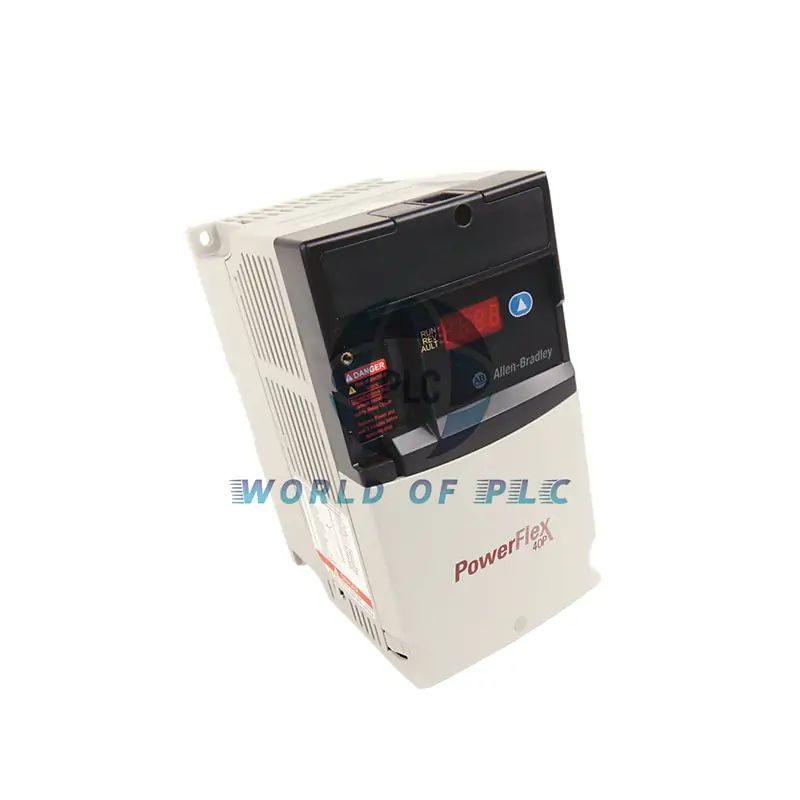

22D-B033H204 Allen-Bradley PowerFlex 40P AC Drive

Allen-Bradley 22D-B033H204 PowerFlex 40P Drive – 10HP Motor Control

Industrial-Grade Performance

The 22D-B033H204 from Allen-Bradley delivers 10HP (7.5kW) of reliable motor control. Perfect for conveyors, packaging, and textile machines, this drive works with 240V 3-phase power and fits tight spaces.

Why Choose This Drive?

• 33A output – Handles tough industrial loads
• Sensorless vector control – Precise speed regulation
• Dynamic braking – Built-in transistor for quick stops
• 200% overload capacity – Handles power surges
• Silent operation – Adjustable up to 16kHz PWM
• Easy setup – DIP switch for wiring flexibility

Technical Specifications

• Model: 22D-B033H204
• Power: 10HP (7.5kW)
• Voltage: 240V AC 3-phase
• Current: 33A continuous
• Frame: Size C
• Enclosure: IP20 (NEMA Open)
• Overload: 150% (60 sec) / 200% (3 sec)
• Communication: RS485 multi-drop
• Braking: Integrated transistor
• Operating Temp: 0°C to 40°C

Package & Support

• 12-month product warranty
• Worldwide shipping via FedEx, UPS, DHL

Expert Answers

• Can it run during power dips?
  Yes, features brownout ride-through
• Does it need external cooling?
  Requires 2″ clearance for airflow
• Can I connect multiple drives?
  Yes, via RS485 network
• Is position control possible?
  Yes, with pulse input feedback
• What’s the noise level?
  Ultra-quiet at 16kHz setting
