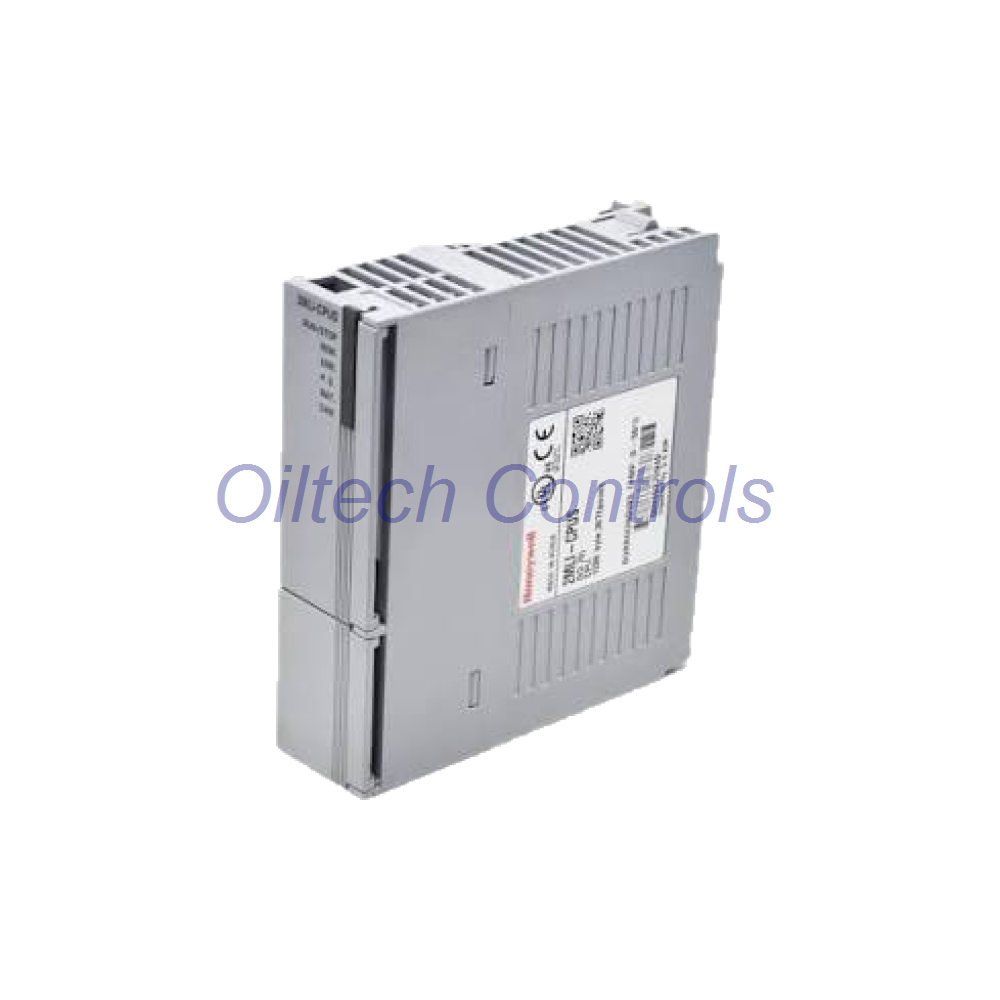

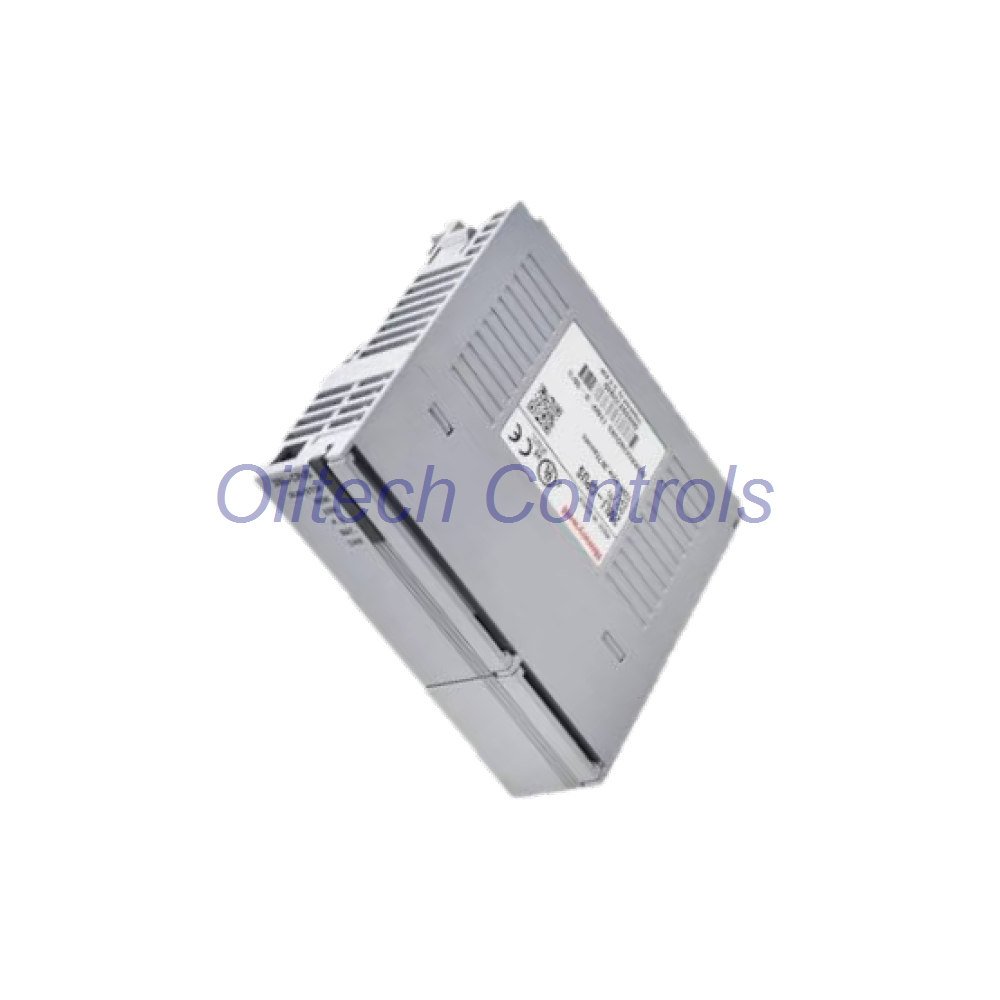

2MLI-CPUH Honeywell MasterLogic-200 PLC CPU – 6144 Points, 3.5MB, IEC
The 2MLI-CPUH is the high-performance CPU for the Honeywell MasterLogic-200 series. It runs ladder, SFC and ST programs with IEC compliance. The unit handles 6,144 installable I/O points and 3.5MB program memory. It suits fast scan control in process and factory automation. Operating range is 0 to 55 degrees C.
Core Technical Data
- Part Number: 2MLI-CPUH
- Brand: Honeywell
- Series: MasterLogic-200
- Program Memory: 3.5 MB
- Installable I/O: 6,144 points
- Max I/O Memory Contact: 131,072 points
- Operating System: Reiterative, fixed cycle, constant scan
- I/O Control: Scan synchronous batch refresh, direct command mode
- Operating Temp: 0 to 55 degrees C
Programming and Instruction Set
- Languages: Ladder Diagram, SFC, ST
- Operators: 18
- Basic Functions: 136 types plus real number operations
- Basic Function Blocks: 43
- Dedicated Function Blocks: Special modules, communication P2P
- Basic Speed: 0.028 us per step
- MOVE Speed: 0.084 us per step
Memory Map
- Symbolic Variable Area (A): 512KB, max 256KB retain settable
- I Variable (I): 16KB
- O Variable (Q): 16KB
- Direct Variable M: 256KB, max 128KB retain settable
Oiltech Controls’s Insight
- The 2MLI-CPUH targets mixed discrete and process loops.
- Constant scan mode gives stable cycle time for fast lines.
- 3.5MB memory leaves room for large ladder and ST code.
- P2P function blocks simplify peer communication links.
- Retain area settings help keep recipe data after power loss.
Oiltech Controls Review
- Engineers value the 0.028 us basic step speed.
- Direct command mode helps time-critical output updates.
- IEC language support speeds up code migration.
- Spare 2MLI-CPUH units protect legacy MasterLogic-200 lines.
- We test each CPU before it leaves our warehouse.
Compatible Equipment
- MasterLogic-200 main and expansion racks
- Honeywell special function modules
- P2P communication modules
- Legacy DCS and SCADA front ends
- Packaging, water and process skid controls
Shipping, Warranty and Support
- Dispatch: 24 to 28 hours after order confirmation.
- Couriers: FedEx, UPS and DHL worldwide.
- Warranty: 12 months on every CPU.
- Test: Technical check before shipment.
- Contact: info@oiltechcontrols.com or +86 158 8020 0923
FAQ
Q: How many I/O points can the 2MLI-CPUH control?
A: It supports up to 6,144 installable points. Contact memory reaches 131,072 points.
Q: Can I migrate existing ladder code to this CPU?
A: Yes. It supports Ladder, SFC and ST under IEC. Review function block mapping before you migrate.
Q: Which scan mode suits fast machine cycles?
A: Constant scan gives fixed cycle time. Use direct command mode for time-critical outputs.
Q: Is 3.5MB memory enough for large projects?
A: It fits large ladder and ST programs. Plan retain areas early for recipe and recipe backup data.
Q: How do I choose a spare CPU for an obsolete line?
A: Match the exact part number 2MLI-CPUH. Check rack type and firmware level first. Ask us for cross-reference help.
