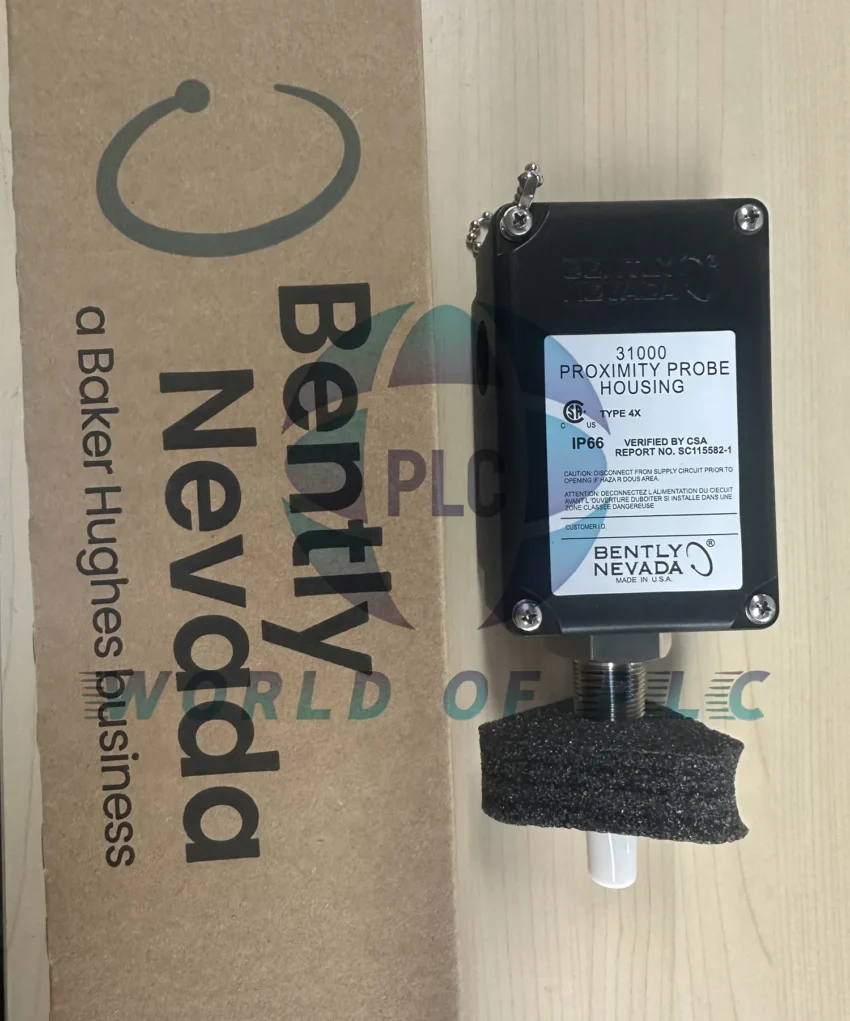

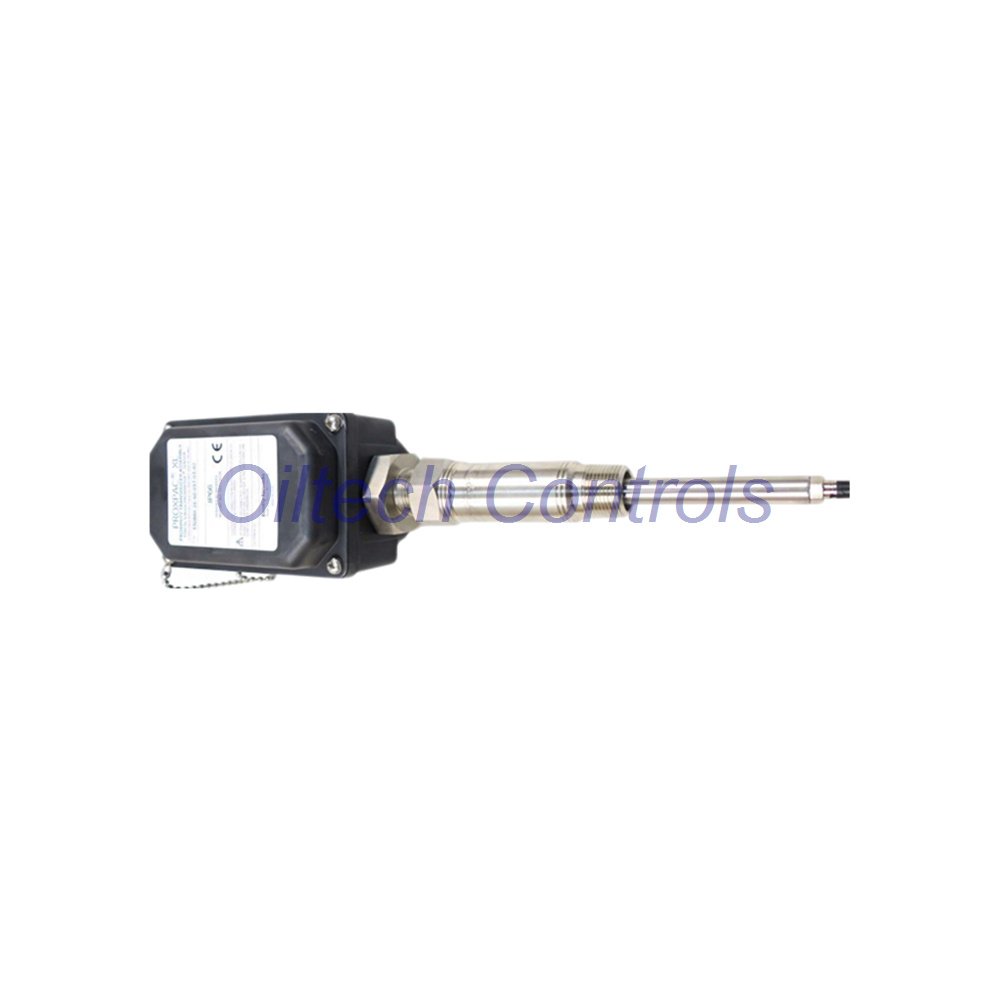

Bently Nevada 31000-27-05-00-035-03-02 Proximity Probe Housing Assembly
- Manufacturer: Bently Nevada
- Model: 31000-27-05-00-035-03-02
- Series: 31000 Proximity Probe Housing Assemblies
- Origin: Made in U.S.A
- Shipping: FedEx / UPS / DHL
- Warranty: 12 Months
- Weight: 1.2 kg
Quick Application View
- Built for harsh plant areas
- Supports NSv probe systems
- Outdoor and washdown safe
- Strong seal and impact design
- Fast field installation
Order Code Tree Structure
- 31000-27-05-00-035-03-02
- 27
- 3300 XL NSv probe
- Multiple approvals
- 05
- Probe cable length
- 0.5 m / 20 in
- 00
- No standoff adapter
- 035
- Probe penetration
- 3.5 in
- 03
- Fitting kit included
- Two plugs
- 3/4-14 NPT fitting
- 3/4 to 1/2 NPT SST reducer
- Multi-size cable seal grip
- 02
- Mounting thread
- 3/4-14 NPT
- 27
Protection & Ratings
- Type 4X certified by CSA
- IP66 verified test report
- EN50014 electrostatic safe material
- Hose-directed water resistant
- Dust tight enclosure design
Material Structure
- Housing: Glass-reinforced PPS with conductive fibers
- Sleeve: AISI 304 stainless steel
- Outer screws: AISI 303 stainless steel
- O-ring: Neoprene®
- Internal probe seal support: Viton O-ring
Mechanical & Strength Data
- Retaining nut torque: 29.4 N·m (260 in·lb)
- Static load support: 912 N test load
- Impact rating: 4 Joule at −39°C and +115°C
- CSA impact test: 7 Joule at room temp
- Thread type: NPT industrial class
Environment Limits
- Operating temp: −51°C to +105°C
- Storage temp: −55°C to +120°C
- High humidity stable
- Oil and grease resistant
- UV resistant PPS body
Extra Technical Selling Points
- Multi-size cable grommets included
- Cable OD ranges: 3–10 mm
- Low electrostatic charge build-up
- Corrosion safe structure
- Field replaceable fittings
- Long service life design
Compatibility
Designed for NSv probe systems used inside
Proximity Probe Housing Assemblies
.
FAQ — Selection & Field Guide
How do I choose the right penetration length?
Measure wall thickness and gap space. Add safety margin. Do not select flush length only.
Can this housing hold internal pressure?
No. It seals water and dust. It is not designed for pressure vessel duty.
What is a common install error?
Over-tightening the nut. This can damage threads and seals. Always use torque spec.
When is a standoff adapter needed?
Use it when you need deeper reach or heat isolation from the machine wall.
How often should seals be checked?
Inspect every yearly shutdown. Replace if cracked or flat.
