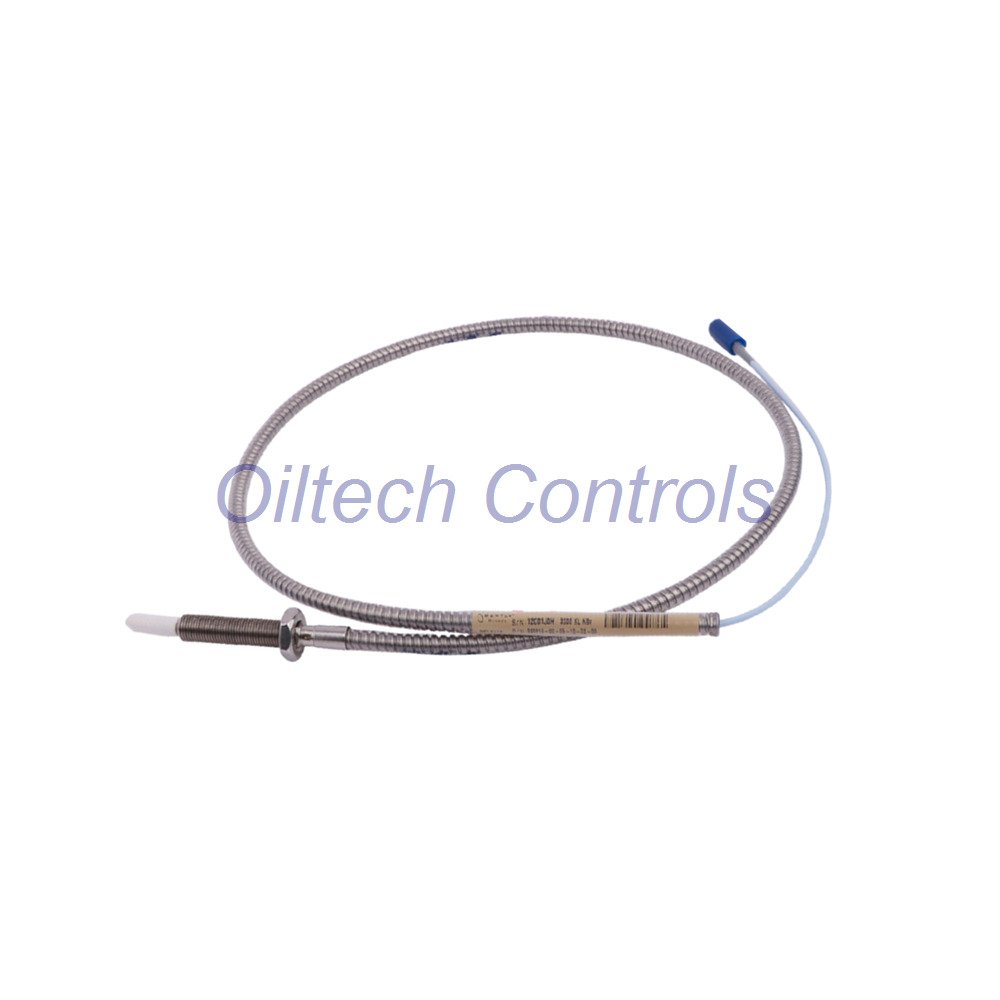

3300 NSv Proximity Probe 330910-01-07-10-01-00 | 1.5mm Range 10kHz Response

Precision Vibration Sensing for Modern Machinery

Discover the Bently Nevada 3300 NSv Proximity Probe. This sensor provides accurate vibration and position data. It is perfect for industrial condition monitoring. The probe helps prevent machine failure. Ensure your equipment runs smoothly and reliably.

Your Product Configuration: 330910-01-07-10-01-00

• Base Product: 3300 NSv Probe with M10x1 Thread & Armor
• Full Part Number: 330910-01-07-10-01-00
• Configuration Details:
  • Unthreaded Length (01): 10 mm
  • Case Length (07): 70 mm
  • Total Cable (10): 1.0 Meter Length
  • Connector (01): Mini ClickLoc with Protector
  • Approvals (00): Standard Version

Core Technical Performance

• Model: Bently Nevada 330910-01-07-10-01-00
• Measurement Range: 1.5 mm (60 mils) linear range.
• Best Gap Setting: Adjust to 1.0 mm (40 mils).
• Output Sensitivity: 7.87 V/mm typical scale factor.
• Signal Accuracy: Linearity within ±0.06 mm.
• Speed Response: 0 to 10 kHz frequency range.
• Target Size: Min. 8.9 mm diameter, 13 mm recommended.

Durability & Installation Specs

• Temperature Range: Operates from -52°C to +177°C.
• Robust Construction: Stainless steel case with chemical-resistant PPS tip.
• Cable Data: 75 Ohm coaxial, 1.0 meter integral length.
• Easy Mounting: M10x1 thread. Tighten to 11.3 N·m recommended torque.
• Safe Bending: Minimum bend radius is 25.4 mm.
• Probe Resistance: 4.2 Ω ±0.5 for reliable signal.

Key Advantages for Your Application

• Proven Compatibility: Direct replacement for older 3300 RAM probes. Easy system upgrade.
• Enhanced Chemical Resistance: Ideal for process compressors and harsh environments.
• Superior Side-View Performance: Better accuracy during installation gap setting.
• Global Shipping: Fast delivery via FedEx, UPS, and DHL.
• Full Warranty: Backed by a 12-month factory warranty for your peace of mind.

Package Contents & Support

• One Bently Nevada 3300 NSv Probe (Model 330910-01-07-10-01-00).
• Miniature ClickLoc connector with protective cover.
• All items are new and in original factory packaging.

Expert Questions & Answers

About Compatibility and Upgrades

• Can I use this NSv probe to replace my old 3300 RAM probe?
• Yes, absolutely. The 3300 NSv probe is a direct mechanical and electrical upgrade. It fits the same mounting holes and connectors.

Installation and Setup Guidance

• What is the correct torque for installing the probe?
• For the M10x1 thread, use 11.3 N·m (100 in-lb). Avoid over-tightening beyond 33.9 N·m to prevent damage.
• My target shaft is smaller than 13mm. Will it work?
• The probe will work, but the scale factor may change. For small shafts, reduce the gap setting. Consult the manual’s Figure 12 for details.

Performance and Selection Tips

• Why is chemical resistance important for a proximity probe?
• In process plants, probes face oil, gas, and chemicals. The NSv’s enhanced materials prevent damage and ensure longer life in these conditions.
• How do I choose the right cable length?
• This model (330910-01-07-10-01-00) has a fixed 1.0m cable. For longer runs, you must add a compatible extension cable. Plan your routing before ordering.
