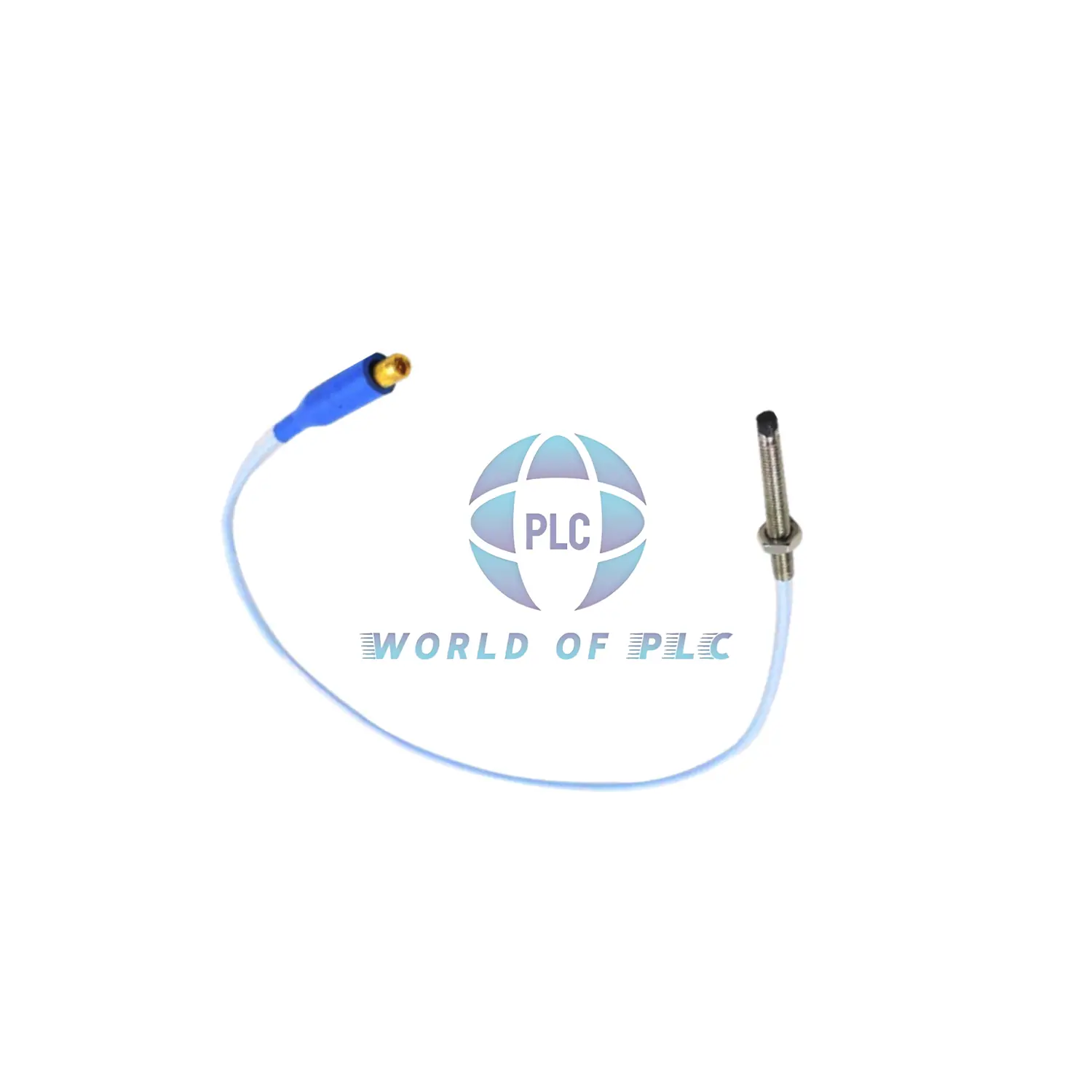

Bently Nevada 330901-00-15-70-02-05 Proximity Probe
Product Overview
This is a 3300 NSv proximity probe. It has a short 1.5 inch case. The cable is 7.0 meters long. It works well in tight spaces and on machines with high vibration.
Main Features
- Probe Type: 3300 NSv, no armor
- Thread Size: 1/4-28 UNF
- Cable Length: 7.0 meters (23 feet)
- Tip Material: PPS (Polyphenylene Sulfide)
- Case Material: Stainless Steel 304
- Connector: Mini coaxial ClickLoc, standard cable
Technical Specs
- Cable Impedance: 75 Ohms coaxial
- Insulation: FEP jacket
- Resistance (7 m cable): 5.9 ± 0.9 Ohms
- Working Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Pressure Seal: Viton O-ring
- Weight: 14 to 150 grams (0.5 to 5.3 oz)
Model Code Explained
- 330901: 3300 NSv probe series
- 00: Unthreaded length 0 inches
- 15: Case length 1.5 inches
- 70: Cable length 7.0 meters
- 02: Connector type, standard cable
- 05: Multiple agency approvals
Problems It Solves
- Space limits in machine parts
- Short distance measurements
- False vibration alarms
Box Contents
- One 330901-00-15-70-02-05 probe
- No certificates included
- 12-month warranty
Shipping
Ships fast via FedEx, UPS, or DHL. Tracking included.
