3300 NSv Proximity Probes | 330901-22-90-05-11-05 Without Armor

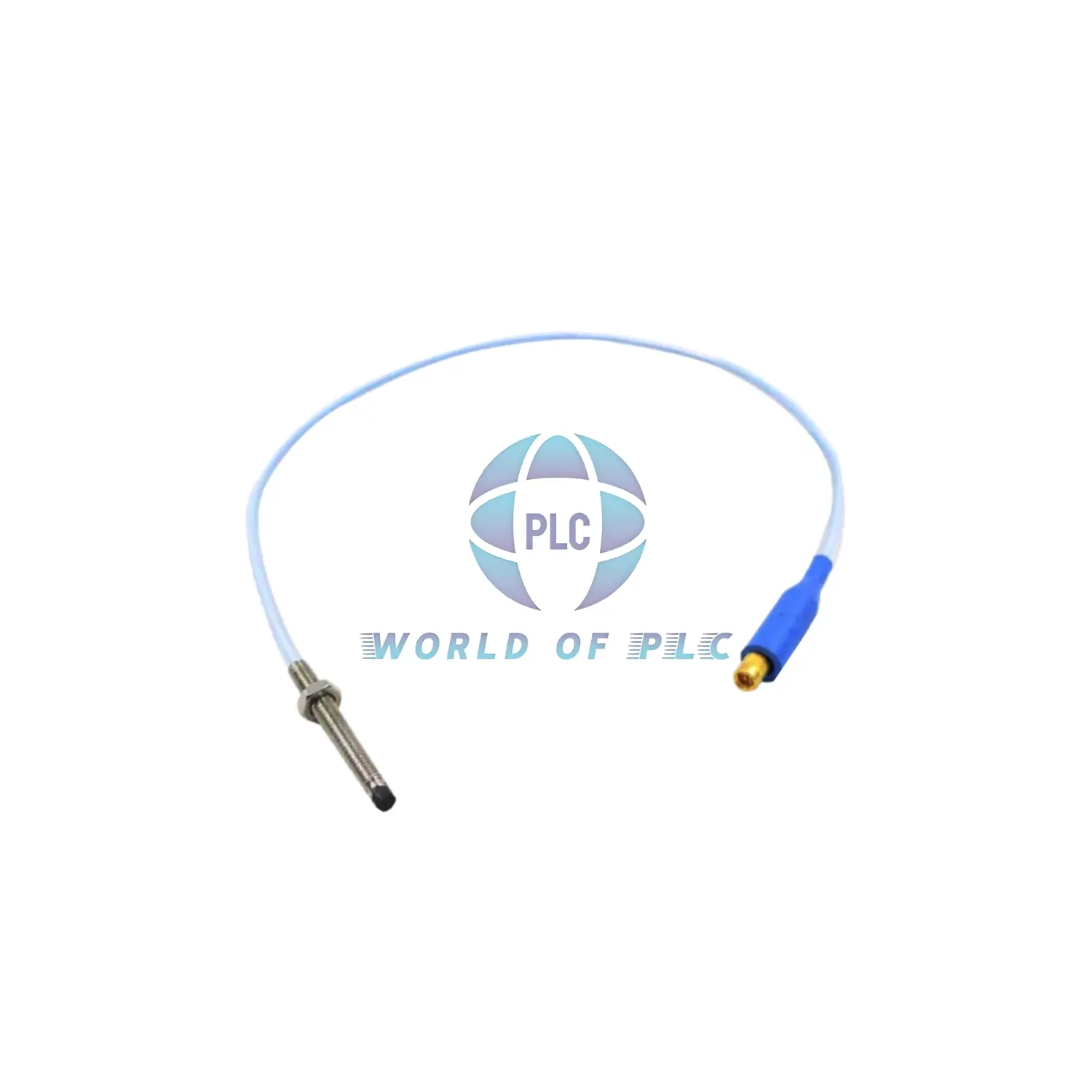

Bently Nevada 330901-22-90-05-11-05 3300 NSv Proximity Probe

Main Features

• Thread Size: 1/4-28 UNF
• Tip Length: 2.2 inches (unthreaded)
• Case Length: 9 inches
• Cable Length: 0.5 meter (20 inches)
• Signal: Non-contact type
• Cable: 75 ohm coaxial, FEP jacket
• Connector: ClickLoc with protector, FluidLoc cable
• Resistance (at 0.5 m): 4.0 ± 0.5 ohms
• Work Temp: -52°C to +177°C
• Store Temp: -52°C to +177°C
• Tip Material: PPS (plastic)
• Case Material: Stainless Steel (AISI304)
• Seal: Viton O-ring
• Weight: 14 to 150 grams

Extra Details

• Quick response to shaft movement
• Good for use in hot or cold places
• Strong cable helps avoid signal loss

Model Code Breakdown

• 330901 – Probe Series
• 22 – 2.2 inch Tip
• 90 – 9 inch Case
• 05 – 0.5 meter Cable
• 11 – ClickLoc + FluidLoc Cable
• 05 – With Approvals

Easy Installation

• Max thread depth: 0.375 inch
• Use 5.1 N·m torque to tighten
• Do not store below -34°C for long time
• Keep the mount clean and dry

What’s Inside

• One probe: 330901-22-90-05-11-05

Warranty and Shipping

• 12-month factory warranty
• Ships with FedEx, UPS, or DHL
• New and sealed in box
