3300 NSv Proximity Probes Metric 330910-00-05-10-02-00 Bently Nevada

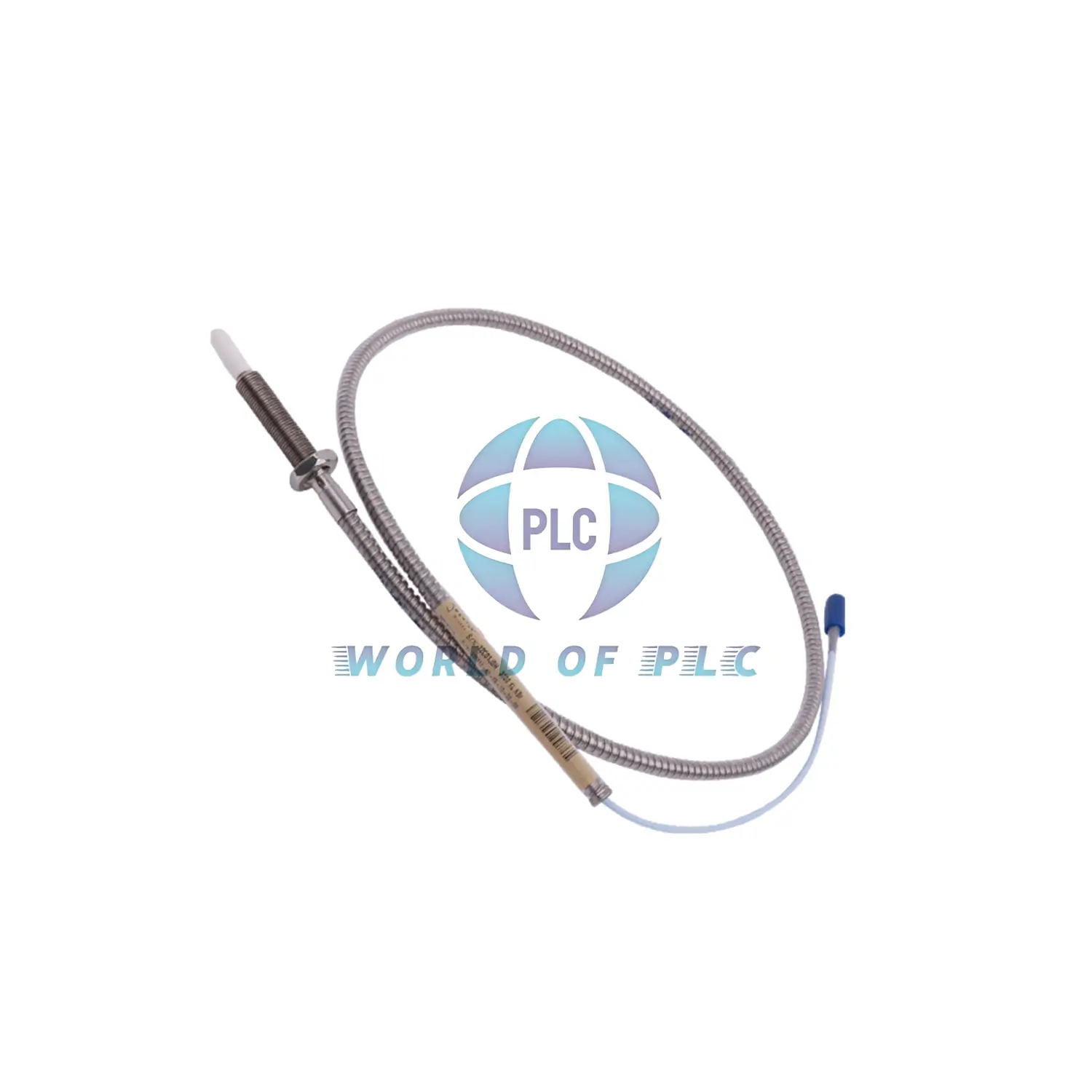

Bently Nevada 330910-00-05-10-02-00 | 3300 NSv Proximity Probe

Product Summary

This compact 3300 NSv proximity probe (330910-00-05-10-02-00 )is designed for machines with limited space. It senses vibration and position with great accuracy. Suitable for compressors, small turbines, and gearboxes in hot and enclosed environments.

Key Technical Data

• Thread Type: M10x1 with stainless steel armor
• Unthreaded Length: 0 mm
• Overall Case Length: 50 mm
• Total Cable Length: 1.0 meter
• Connector Type: Miniature coaxial ClickLoc, standard cable
• Resistance: 4.2 ± 0.5 ohms at 1.0 m

Build Materials

• Tip Material: PPS (Polyphenylene Sulfide)
• Case Material: AISI 304 Stainless Steel
• Cable Type: 75 Ω coaxial, FEP insulated
• Available Lengths: 0.5 m, 1 m, 5 m, 7 m

Torque and Handling

• Max Probe Thread Torque: 33.9 N·m
• Recommended Torque: 11.3 N·m
• Connector Max Torque: 0.56 N·m
• Connector Tightening: Finger tight only

Environmental Ratings

• Operating Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Min Bend Radius: 25.4 mm
• Weight: 14 to 150 g

Temperature Classes

• T1: -55°C to +232°C
• T2: -55°C to +177°C
• T3: -55°C to +120°C
• T4: -55°C to +80°C
• T5: -55°C to +40°C

Full Model Breakdown

• 330910: NSv Series Proximity Probe
• -00: Unthreaded length = 0 mm
• -05: Overall case length = 50 mm
• -10: Total cable length = 1.0 m
• -02: Miniature ClickLoc with standard cable
• -00: No agency approvals needed
