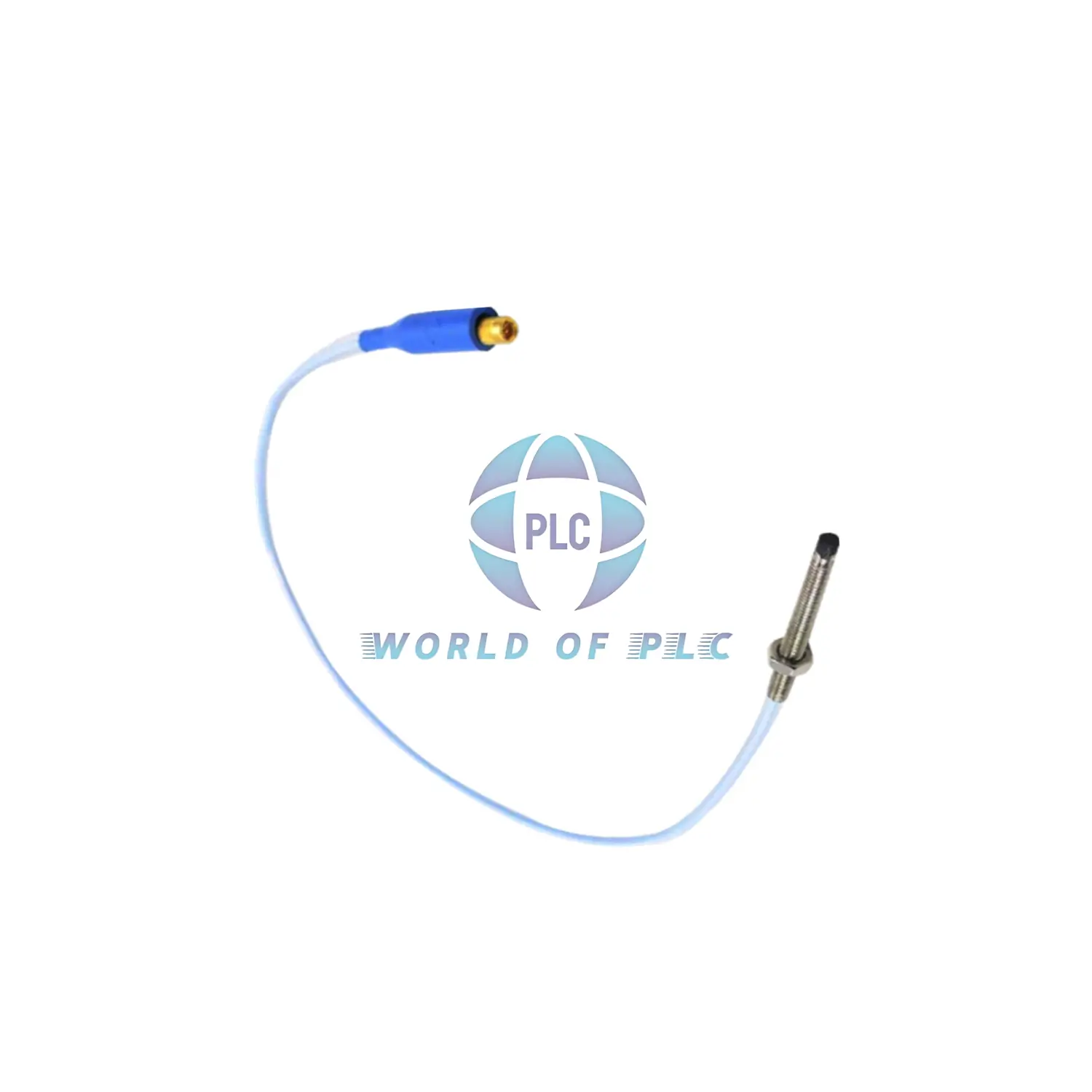

Bently Nevada 330901-00-90-10-02-CN Proximity Probe
Product Overview
This 3300 NSv proximity probe features a 9-inch case and 1 meter cable. It is made in the U.S.A and designed for tough industrial use. The probe uses a 1/4-28 UNF thread and has no armor.
Key Specifications
- Model: 330901-00-90-10-02-CN
- Thread Size: 1/4-28 UNF
- Unthreaded Length: 0 in
- Overall Case Length: 9 in
- Cable Length: 1.0 meter (39 in)
- Connector: Miniature coaxial ClickLoc, standard cable
- Probe Case Material: AISI304 stainless steel
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Cable Specs: 75 Ω coaxial, FEP insulated
- Probe DC Resistance: 4.2 ± 0.5 ohms (1 m cable)
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Storage Temp: -52°C to +177°C (-62°F to +351°F)
- Pressure Seal: Viton O-ring
- Probe Weight: 14 to 150 g (0.5 to 5.3 oz)
Installation Guide
- Max thread engagement: 0.375 in
- Recommended torque: 5.1 N·m (45 in·lb)
- Max torque: 7.3 N·m (65 in·lb)
- Avoid long exposure below -34°C to protect pressure seal
Model Code Breakdown
- 330901 – 3300 NSv probe series
- 00 – Unthreaded length 0 in
- 90 – Case length 9 in
- 10 – Cable length 1.0 m
- 02 – Mini coaxial ClickLoc connector, standard cable
- CN – Country specific agency approval
