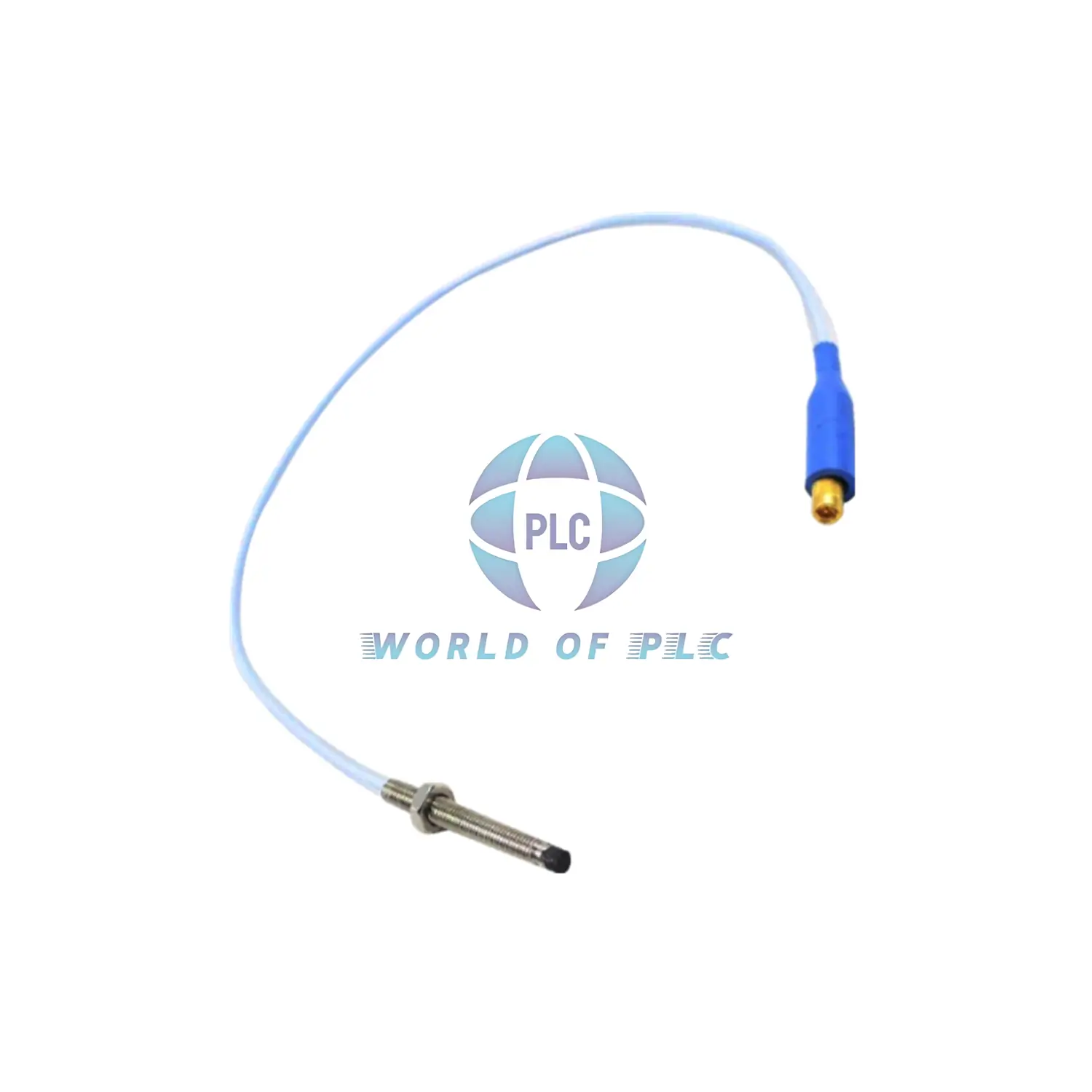

Bently Nevada 330901-00-90-10-02-RU Proximity Probe
Product Summary
The 330901-00-90-10-02-RU is a small proximity probe from Bently Nevada. It is made for tight spaces and high-heat areas. This model is used in machines that need accurate shaft position checks. Made in the USA.
Model Code Structure
- 330901 – NSv Proximity Probe Series
- 00 – 0 inch unthreaded tip
- 90 – 9 inch overall case length
- 10 – 1.0 meter total cable length
- 02 – Standard cable with miniature ClickLoc connector
- RU – Country-specific approval (Russia)
Main Technical Details
- Thread Size: 1/4-28 UNF
- Tip Material: PPS (Polyphenylene sulfide)
- Case Material: AISI 304 stainless steel
- Cable Type: 75 Ω coaxial, FEP-insulated
- DC Resistance (1.0 m): 4.2 ± 0.5 ohms
- Weight: 14 to 150 grams
Environmental Ratings
- Working Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Use above -34°C to avoid seal damage
Installation Guide
- Thread Engagement Limit: 0.375 in
- Max Torque: 7.3 N·m (65 in·lb)
- Recommended Torque: 5.1 N·m (45 in·lb)
Sealing and Pressure
- Seal Type: Viton O-ring between tip and case
- Not pressure-tested before shipping
