3300 NSv Proximity Probes – Without Armor 330901-22-90-10-01-00

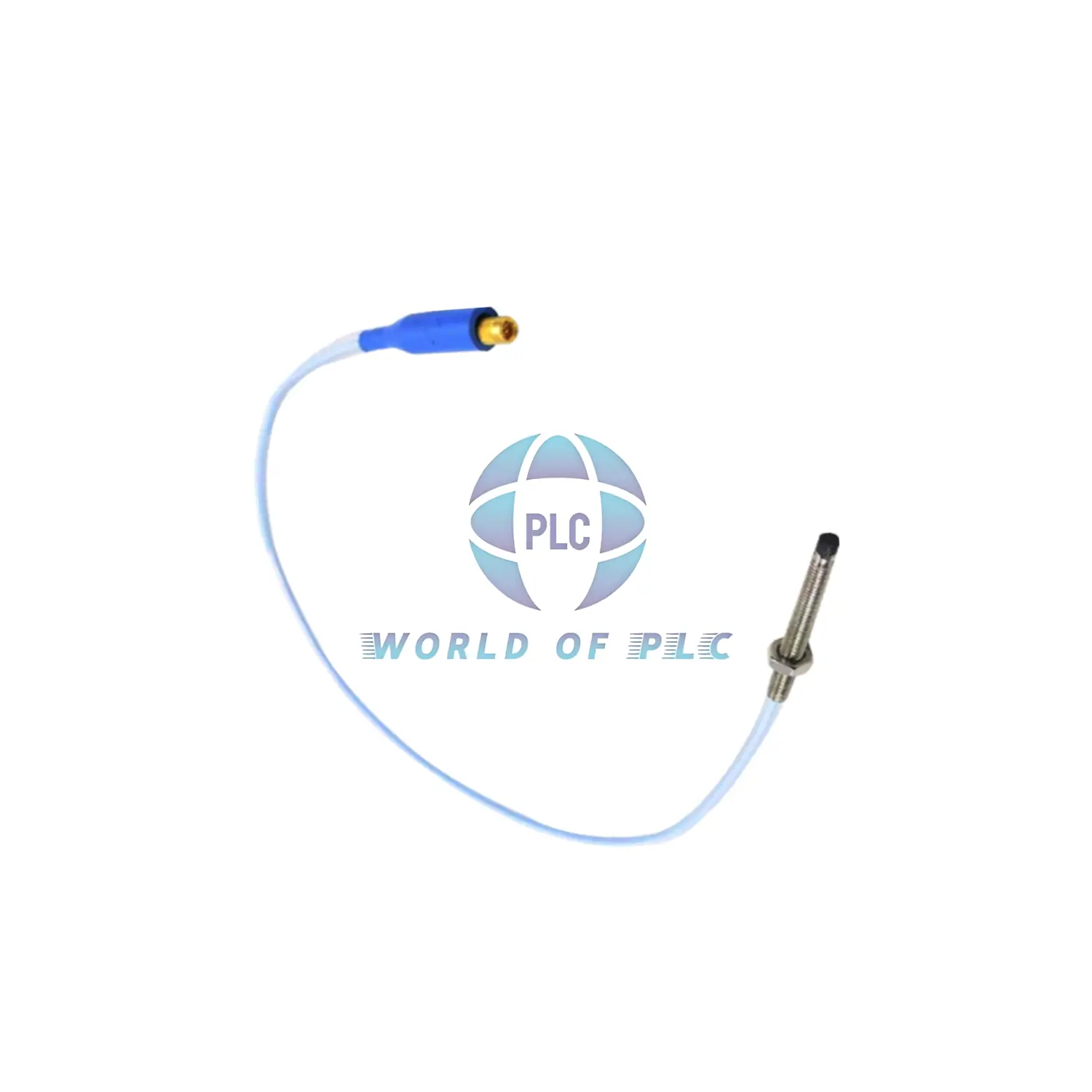

Bently Nevada 330901-22-90-10-01-00 3300 NSv Proximity Probe

Key Specs

• Thread: 1/4-28 UNF
• Unthreaded Tip Length: 2.2 inches
• Case Length: 9 inches
• Cable Length: 1.0 meter (39 inches)
• Signal: Non-contact shaft position
• Cable: 75 ohm coaxial, FEP jacket
• Connector: Mini ClickLoc with protector
• Resistance: 4.2 ± 0.5 ohms at 1 meter
• Working Temp: -52°C to +177°C (-62°F to +351°F)
• Storage Temp: -52°C to +177°C (-62°F to +351°F)
• Tip Material: PPS plastic
• Case Material: Stainless steel (AISI304)
• Seal: Viton O-ring
• Weight: 14 to 150 grams

Details

• Quick response to shaft moves
• Clear signals in noisy places
• Good for small spaces
• Strong for long use

Model Code

• 330901 – Series
• 22 – Tip length 2.2 in
• 90 – Case length 9 in
• 10 – Cable length 1.0 m
• 01 – Mini ClickLoc connector
• 00 – No agency approval

Installation

• Max thread depth: 0.375 in
• Use 5.1 N·m torque
• Max torque: 7.3 N·m
• Mount on clean dry place
• Don’t store below -34°C long

Package

• One 330901-22-90-10-01-00 probe

Warranty & Shipping

• 12-month warranty
• Ships via FedEx, UPS, DHL
• New and factory sealed
