3300 NSv Proximity Probes – Without Armor 330908-00-36-05-02-05

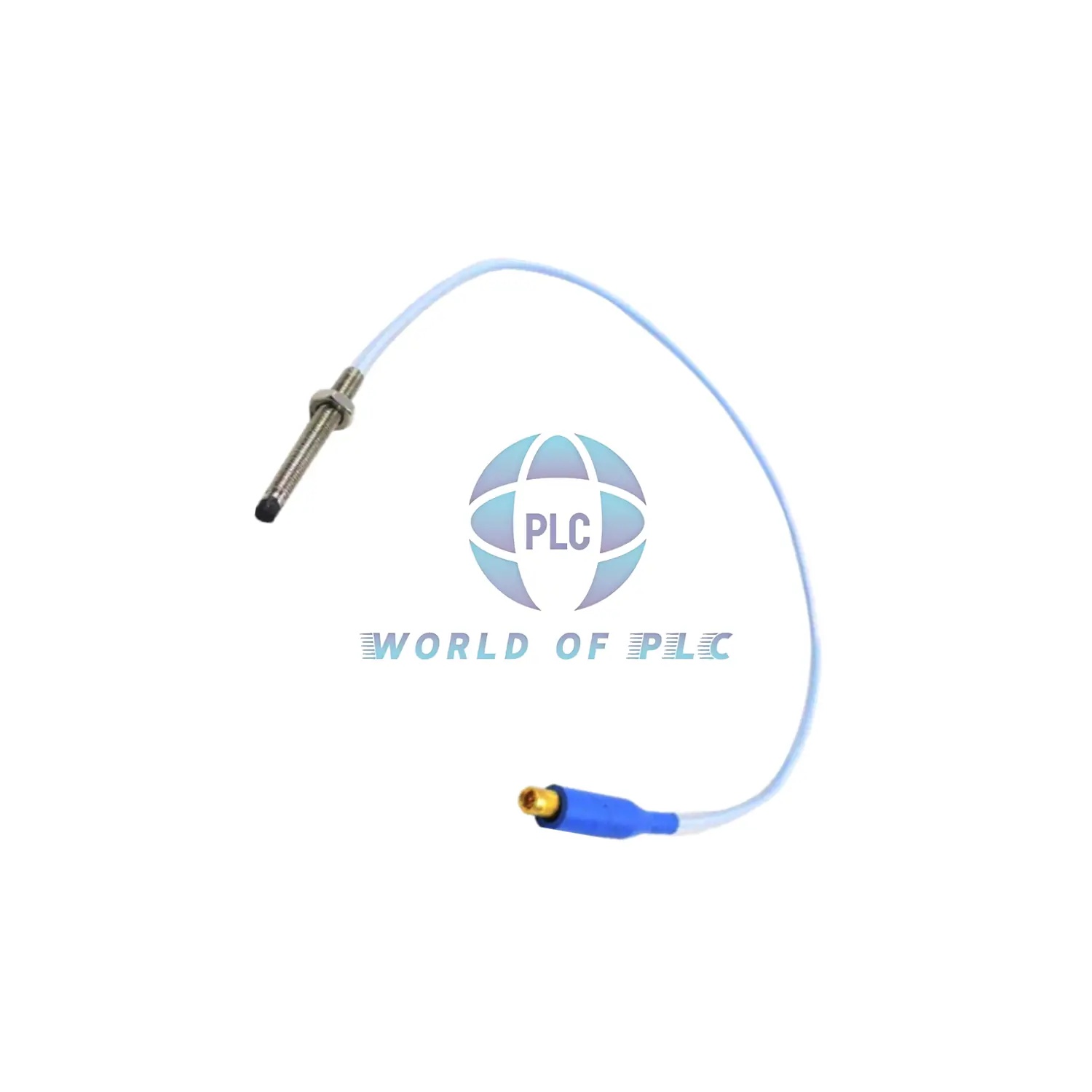

Bently Nevada 330908-00-36-05-02-05 Proximity Probe

Product Overview

The 330908-00-36-05-02-05 from Bently Nevada is a 3300 NSv proximity probe with a 3/8-24 UNF thread and no armor. It is designed for small machinery and spaces with limited mounting depth. This model includes multiple international safety approvals, making it suitable for a wide range of global industrial settings.

Key Technical Specifications

• Thread Size: 3/8-24 UNF
• Unthreaded Section: 0.0 in
• Case Length: 3.6 in
• Cable Length: 0.5 meter (20 in)
• Connector: Miniature ClickLoc coaxial
• Connector Type: Standard cable, no armor
• Agency Approval: 05 = Multiple international approvals
• Case Material: AISI304 Stainless Steel
• Tip Material: PPS (Polyphenylene Sulfide)
• Cable Type: 75 Ω coaxial, FEP insulated
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Torque (Recommended): 11.3 N·m (100 in·lb)
• Max Thread Engagement: 0.563 in
• DC Resistance (0.5 m): 4.0 ± 0.5 ohms
• Weight: 14 to 150 g
• Seal Type: Viton O-ring, pressure differential design

Model Structure

• 330908: NSv series with 3/8-24 UNF thread
• 00: Unthreaded section length 0.0 in
• 36: Overall case length 3.6 in
• 05: Cable length 0.5 meter
• 02: Mini ClickLoc connector, standard cable
• 05: Multiple approvals (Zone, international, etc.)

Installation Instructions

• Use torque of 11.3 N·m for secure and safe installation
• Ensure thread depth does not exceed 0.563 in
• Do not store below -34°C for extended time to protect seals

Compatibility

• Use with 3300 NSv extension cables
• Compatible with NSv Proximitor sensors
• Fits compact rotating machines, pumps, fans, gearboxes

Extra Options and Configurations

• Available Case Lengths: 12, 20, 24, 30, 36, 45, 60 in
• Available Cable Lengths: 0.5 m, 1 m, 5 m, 7 m
• Connector Options: 01 (with protector), 02 (standard), 03 (rugged use)
• Agency Approval Options: 00 (None), CN, RU, 05 (Multi-approval)
