3300 NSv Proximity Probes – Without Armor 330908-00-36-10-02-05

Mid-Size Unarmored Vibration Probe: Precision Monitoring Solution

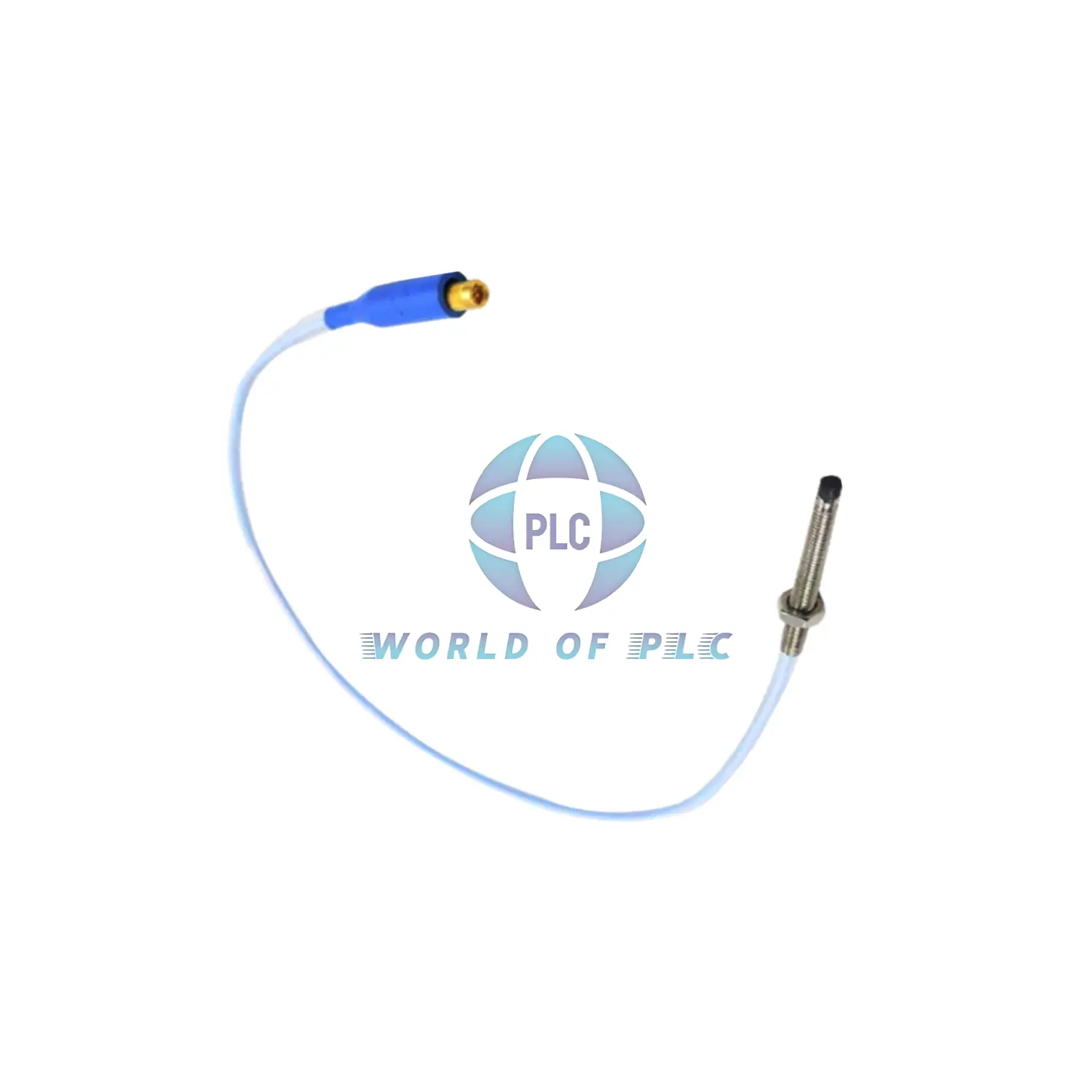

Bently Nevada 3300 NSv probe with 3.6-inch case and no armor. Features 1m cable and global certifications. Ideal for standard industrial vibration applications.

Complete Model Details

• Full Part Number: 330908-00-36-10-02-05
• Armor Type: Without armor
• Case Size: 3.6 inches (Option 36)
• Cable Length: 1.0 meter (39 inches)
• Connector: ClickLoc coaxial
• Certifications: Multiple global approvals

Technical Specifications

• Electrical Resistance: 4.2Ω ±0.5Ω (1m cable)
• Temperature Range: -52°C to +177°C
• Thread Type: 3/8-24 UNF
• Case Material: AISI304 Stainless Steel
• Tip Material: PPS plastic
• Weight: 0.5-5.3 oz (14-150g)

Installation Information

• Recommended Torque: 11.3 N•m (100 in•lb)
• Maximum Torque: 33.9 N•m (300 in•lb)
• Thread Depth: Max 0.563 inches
• Seal Type: Viton O-ring
• Cold Warning: Avoid below -34°C long exposure

What’s Included

• 1x Unarmored vibration probe
• 1-meter insulated cable
• ClickLoc connector installed
• 12-month quality warranty

Technical Questions

• Q: Why choose unarmored version?
  A: Lighter weight and lower cost for standard applications
• Q: Pressure testing before shipment?
  A: No, probes not pressure tested at factory
• Q: Difference between 1.8″ and 3.6″ cases?
  A: 3.6″ provides deeper access while maintaining flexibility
• Q: Cable replacement possible?
  A: Not recommended – cable is factory sealed
• Q: Minimum installation clearance needed?
  A: Case length + 1 inch for connector access

Get complete specifications: Download Probe Technical Manual
